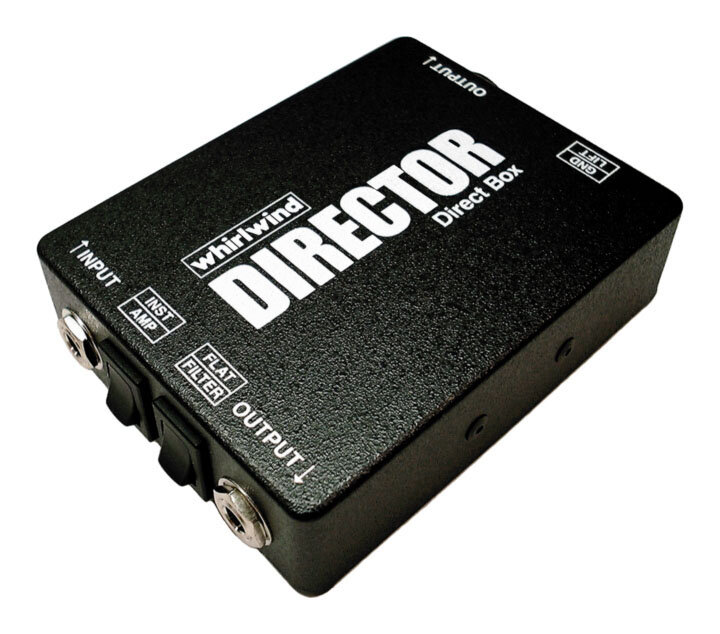

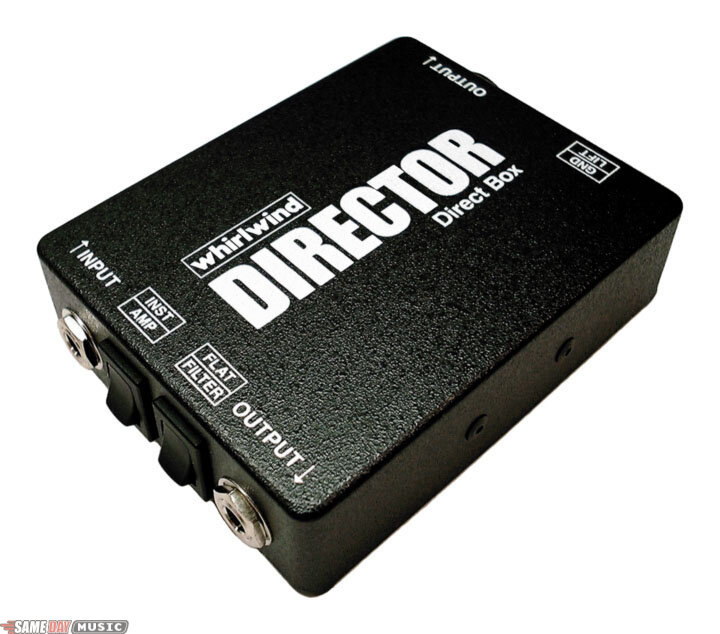

Whirlwind Director Deluxe Direct Box
FIND SIMILAR PRODUCTS
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES
Product Description
This premium direct box converts an unbalanced line, instrument, or speaker level signal to low impedance balanced mic level.
Features
1/4 in. parallel wired in/out jacks
Ground Lift switch to help eliminate hum and buzz
30dB pad switch for selecting between line/instrument or speaker level input signals
Switchable high cut filter to eliminate amplifier noise
Uses Whirlwind's TRHL-M transformer with mu metal shield that's riveted, not glued, to the chassis
Technical Description
Input Impedance: 20K Ohms
Output Impedance: 150 Ohms
Signal Loss (input to output): -20dB (pad out),-50dB (pad in)
Frequency Response: 20 - 20KHz ±1dB
Whirlwind Director Deluxe Direct Box Reviews
2 users have rated this product, but no one has reviewed it yet. To rate this item and/or write a review, click the "Rate It" button.
