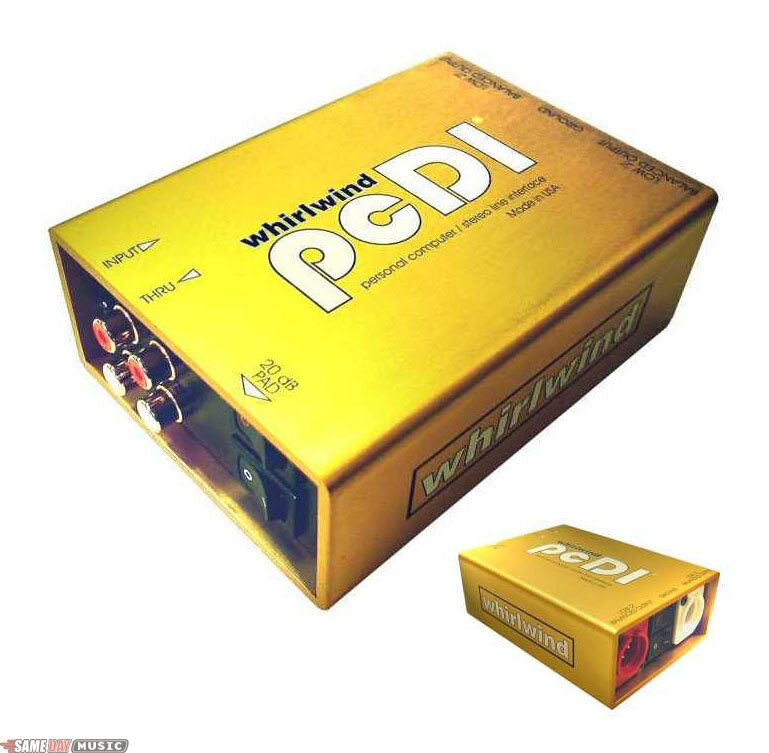

Whirlwind PCDI Direct Box
Color coded jacks. Ground lift.
Product rated 10.0 out of 10 (2 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The Whirlwind pcDI is the first direct box designed to interface your unbalanced stereo line sources with professional balanced low impedance equipment. This unit contains 2 separate DIs -- input your signals with one 3.5mm (1/8 in.) mini TRS stereo jack or 2 sets of color coded RCA phono type input and through jacks. Output is via corresponding color coded XLRs. Each section features a ground lift switch to help eliminate hum and a 20dB pad switch for connecting to "hot" signals. Perfect for interfacing with the outputs of CD players, computer sound cards, tape decks, etc.
Features:
3.5mm (1/8 in.) mini TRS stereo input jack (tip=left +, ring=right +, sleeve=common negative)
Color coded RCA phono in/through jacks
Color coded XLR output jacks
Ground Lift switch to help eliminate hum and buzz
-20dB pad switch for connection to "hot" input signals
Uses Whirlwind's TRHL-M transformer with metal shield
Features:
3.5mm (1/8 in.) mini TRS stereo input jack (tip=left +, ring=right +, sleeve=common negative)
Color coded RCA phono in/through jacks
Color coded XLR output jacks
Ground Lift switch to help eliminate hum and buzz
-20dB pad switch for connection to "hot" input signals
Uses Whirlwind's TRHL-M transformer with metal shield
TECHNICAL DESCRIPTION
Input Impedance: 2 X 20k Ohms
Output Impedance: 2 X 150 Ohms
Frequency Response: 20Hz-20kHz ±1dB
Level Change (input to output): -20dB (pad out), -40dB (pad in)
Output Impedance: 2 X 150 Ohms
Frequency Response: 20Hz-20kHz ±1dB
Level Change (input to output): -20dB (pad out), -40dB (pad in)
