Line 6 X2 XDS95 24-Bit Digital Wireless Instrument System
24-bit linear AD/DA capture. Greater than 117dB dynamic range. 5 selectable frequencies.
Product rated 10.0 out of 10 (3 ratings)
Read Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Introducing the XDS95 24-bit Digital UHF Wireless System -- a powerful, compact, multi-channel digital UHF wireless system operating in the Frequency-Clear 900 MHz band. Free of companders, the system is designed to offer the ultimate in tone, performance and ease of use for performing and recording musicians -- all without breaking the bank.
Although X2 is a new company, they come with both a rich heritage and vast experience having been the first to develop digital wireless technology for musical applications.
With the XDS95 there are no knobs to adjust or external antenna to loose or break. Simply plug in, power on and the system is ready to go. The system also offers 5 user selectable frequencies, so others in your organization can enjoy the benefits of digital wireless without stepping on each others' toes.
Features:
24-bit linear AD/DA capture every nuance of your performance
No compander I/C's so your tone won't get squashed
Greater than 117dB dynamic range
5 selectable frequencies (fully compatible with absolutely no crosstalk)
Q-Diversity internal antennas for freedom from dropouts
Frequency-Clear 900 MHz UHF transmission means no DTV or licensing concerns
Compact, lightweight components fit in your case for easy transport
Digital switching power supply means long component battery life
Made in the USA

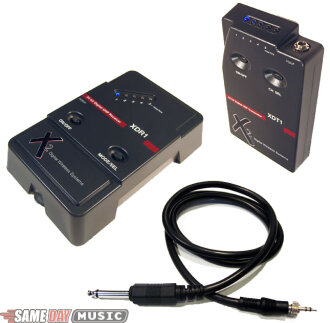

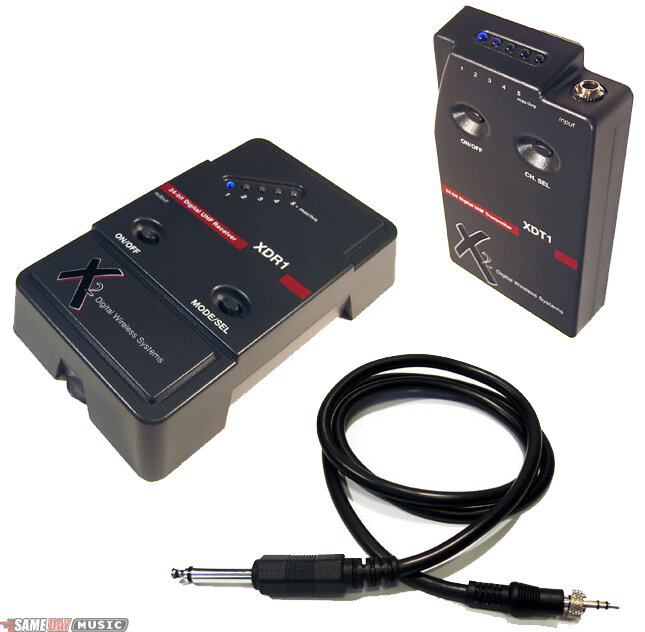

System
Both components feature a 5-segment LED display that shows audio signal level, operating channel and it's remaining battery life in 1 hour increments accurate to within 30 minutes using 9V Alkaline batteries.
XDT1
Locking TRS connector
Internal transmitting antenna
Approx. 12 hours of full-power performance from a single 9V Alkaline battery
XDR1
Compact 'stomp-box' design fits perfectly on your pedal board
1/4 in. unbalanced stereo output, tip= instrument voicing, sleeve= full bandwidth
Approx. 8 hours of full-power performance from a single 9V Alkaline battery
An auto Digi-Scan mode assists in selecting the best frequency
Optional AC supply (compatible with PSA120 type)
Although X2 is a new company, they come with both a rich heritage and vast experience having been the first to develop digital wireless technology for musical applications.
With the XDS95 there are no knobs to adjust or external antenna to loose or break. Simply plug in, power on and the system is ready to go. The system also offers 5 user selectable frequencies, so others in your organization can enjoy the benefits of digital wireless without stepping on each others' toes.
Features:
24-bit linear AD/DA capture every nuance of your performance
No compander I/C's so your tone won't get squashed
Greater than 117dB dynamic range
5 selectable frequencies (fully compatible with absolutely no crosstalk)
Q-Diversity internal antennas for freedom from dropouts
Frequency-Clear 900 MHz UHF transmission means no DTV or licensing concerns
Compact, lightweight components fit in your case for easy transport
Digital switching power supply means long component battery life
Made in the USA
System
Both components feature a 5-segment LED display that shows audio signal level, operating channel and it's remaining battery life in 1 hour increments accurate to within 30 minutes using 9V Alkaline batteries.
XDT1
Locking TRS connector
Internal transmitting antenna
Approx. 12 hours of full-power performance from a single 9V Alkaline battery
XDR1
Compact 'stomp-box' design fits perfectly on your pedal board
1/4 in. unbalanced stereo output, tip= instrument voicing, sleeve= full bandwidth
Approx. 8 hours of full-power performance from a single 9V Alkaline battery
An auto Digi-Scan mode assists in selecting the best frequency
Optional AC supply (compatible with PSA120 type)
TECHNICAL DESCRIPTION
Transmission Format: X2 proprietary digital audio transmission
Frequency Response: 20 Hz - 12 kHz
Audio Dynamic Range: >117 dB
Distortion: 0.03% THD
RF Carrier Frequency: 902 MHz to 928 MHz, FSK
Selectable Frequencies: 5
RF Output Power: 10mw
Audio Output Level: Unity gain with transmitter input
Polarity: Positive voltage at input yields positive voltage at output
Operating Range: >150 feet line-of-sight (may vary due to local conditions)
FCC Approval: Part 15 approved, no user-license required
XDR1 Receiver
D/A Conversion: 24-bit Delta Sigma, 128 times over sampling
Output: 2.12V RMS (Unbalanced: 1.8K ohms)
Connectors: 1/4 in. Unbalanced stereo output, tip= instrument voicing, sleeve= full bandwidth
LED Display: 5 segment - Power On, Data Link, Channel, Battery Life, Audio Level Meter, RF Strength
Controls: Power On/Off, Channel/Mode Select
Dimensions: 3.078 in. W x 1.17 in. D x 4.7 in. H
Power Requirements: 9V DC via battery or optional AC power supply (PSA120 type)
Weight: .45 lbs (with 9v battery installed)
XDT1 Transmitter
A/D Conversion: 24-bit Delta Sigma, 128 times over sampling
Input Impedance: 1.3M ohms
Connectors: 1/8 in. Unbalanced locking connector
Controls: Power On/Off, Channel Select
LED Display: 5 segment - Power On, Channel, Battery Life, Audio Level Meter
Dimensions: 2.4 in. W x .66 in. D x 4 in. H
Battery Life: Switching power supply, ~8 Hours (9v alkaline)
Weight: .25 lbs (with 9v battery installed)
Frequency Response: 20 Hz - 12 kHz
Audio Dynamic Range: >117 dB
Distortion: 0.03% THD
RF Carrier Frequency: 902 MHz to 928 MHz, FSK
Selectable Frequencies: 5
RF Output Power: 10mw
Audio Output Level: Unity gain with transmitter input
Polarity: Positive voltage at input yields positive voltage at output
Operating Range: >150 feet line-of-sight (may vary due to local conditions)
FCC Approval: Part 15 approved, no user-license required
XDR1 Receiver
D/A Conversion: 24-bit Delta Sigma, 128 times over sampling
Output: 2.12V RMS (Unbalanced: 1.8K ohms)
Connectors: 1/4 in. Unbalanced stereo output, tip= instrument voicing, sleeve= full bandwidth
LED Display: 5 segment - Power On, Data Link, Channel, Battery Life, Audio Level Meter, RF Strength
Controls: Power On/Off, Channel/Mode Select
Dimensions: 3.078 in. W x 1.17 in. D x 4.7 in. H
Power Requirements: 9V DC via battery or optional AC power supply (PSA120 type)
Weight: .45 lbs (with 9v battery installed)
XDT1 Transmitter
A/D Conversion: 24-bit Delta Sigma, 128 times over sampling
Input Impedance: 1.3M ohms
Connectors: 1/8 in. Unbalanced locking connector
Controls: Power On/Off, Channel Select
LED Display: 5 segment - Power On, Channel, Battery Life, Audio Level Meter
Dimensions: 2.4 in. W x .66 in. D x 4 in. H
Battery Life: Switching power supply, ~8 Hours (9v alkaline)
Weight: .25 lbs (with 9v battery installed)
CATALOG DESCRIPTION
Sounds just like you're plugged into your amp@Transmits/receives 24-bit digital signal via UHF with no companding@Over 117dB dynamic range@5 selectable frequencies@Instrument or line level operation@TRS I/O
