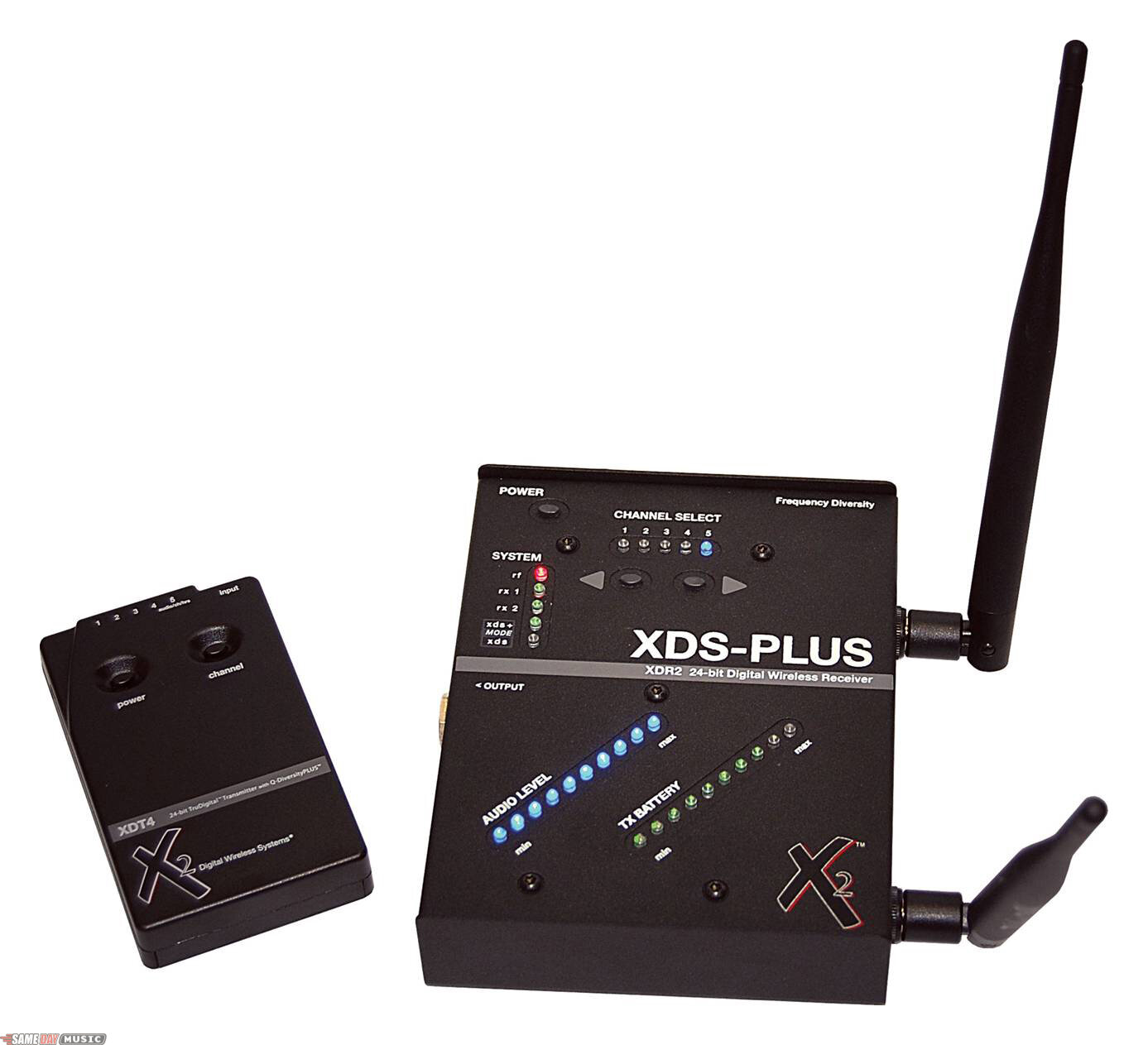

Line 6 X2 XDSPLUS 24-bit Digital Instrument Wireless System
2009 Compliant so it’s Free from FCC & DTV Concerns. Metal Stompbox Receiver with 1/4 Wave Detachable Antenna.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
ADDITIONAL VIEWS:
Main
XDR2 Receiver
XDT4 Transmitter
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The X2 XDSPLUS is a monster guitar wireless system that is perfect for the guitarist looking for a no-compromise wireless system to place on their pedalboard or mobile rig. The XDSPLUS is a rugged digital instrument wireless system sporting many features of the XDR Series packed into a metal chassis stompbox receiver. The result: extended frequency response and extended operating range that only an X2 can give you.
Made in the USA, the XDSPLUS features X2’s companderless technology and dual digital transmission for the sound and feel of a direct wire connection with an incredible level of interference protection only available from X2.
Features
Dual RF Diversity (anti-jamming)
Continental Roaming
200 foot Operating Range
2009 Compliant so it’s Free from FCC & DTV Concerns
Metal Stompbox Receiver with 1/4 Wave Detachable Antenna
Made in the USA, the XDSPLUS features X2’s companderless technology and dual digital transmission for the sound and feel of a direct wire connection with an incredible level of interference protection only available from X2.
Features
Dual RF Diversity (anti-jamming)
Continental Roaming
200 foot Operating Range
2009 Compliant so it’s Free from FCC & DTV Concerns
Metal Stompbox Receiver with 1/4 Wave Detachable Antenna
TECHNICAL DESCRIPTION
XDS PLUS Specifications
Frequency Response (± .5dB): 10 Hz - 20 kHz
Audio Dynamic Range: Greater than 118 dB
Distortion: 0.03% THD
Compatible Channels: Five
RF Output Power: 15mw
Operating Range: 200 foot line-of-sight (may vary due to local conditions)
XDT4 Transmitter Specifications
A/D Conversion: 24-bit Delta Sigma, 128 times over sampling
Input Impedance: 1.2 M Ohm instrument input, 10K Ohm mic input
Connectors: 1/8" Unbalanced locking connector
Controls: Power On/Off, Channel Select
Five Segment LED Display: Power On, Channel, Battery Life, Audio Level Meter
Dimensions (WxHxD): 2.4 x 4 x .8" (6.09 x 10.16 x 2.03 cm)
Battery Life: 9V alkaline, switching power supply, two modes:
- Q-DiversityPLUS mode: ~5.5 hrs in (dual frequency)
- Q-Diversity mode: ~6.5 hrs in standard (single frequency)
Weight: .25 lb. (with 9V battery installed)
Housing: Polycarbonate, impact tested to 300 lb.
Receiver Specifications
D/A Conversion: 24-bit Delta Sigma, 128x oversampling
Total Harmonic Distortion: 0.03%
Audio Output: 2.12V RMS (unbalanced, 1.8K Ohm)
Power: Minimum 9V DC 300mA – power supply included
Dimensions (WxHxD): 1.44 x 4.5 x 5.65 in.
Housing: Metal chassis
Weight: 12.8 oz
System Contains
XDT4 Digital UHF bodypack transmitter
XDR2 Digital UHF stompbox receiver
Instrument cable
9V DC Power supply included
Users guide and all necessary batteries
Frequency Response (± .5dB): 10 Hz - 20 kHz
Audio Dynamic Range: Greater than 118 dB
Distortion: 0.03% THD
Compatible Channels: Five
RF Output Power: 15mw
Operating Range: 200 foot line-of-sight (may vary due to local conditions)
XDT4 Transmitter Specifications
A/D Conversion: 24-bit Delta Sigma, 128 times over sampling
Input Impedance: 1.2 M Ohm instrument input, 10K Ohm mic input
Connectors: 1/8" Unbalanced locking connector
Controls: Power On/Off, Channel Select
Five Segment LED Display: Power On, Channel, Battery Life, Audio Level Meter
Dimensions (WxHxD): 2.4 x 4 x .8" (6.09 x 10.16 x 2.03 cm)
Battery Life: 9V alkaline, switching power supply, two modes:
- Q-DiversityPLUS mode: ~5.5 hrs in (dual frequency)
- Q-Diversity mode: ~6.5 hrs in standard (single frequency)
Weight: .25 lb. (with 9V battery installed)
Housing: Polycarbonate, impact tested to 300 lb.
Receiver Specifications
D/A Conversion: 24-bit Delta Sigma, 128x oversampling
Total Harmonic Distortion: 0.03%
Audio Output: 2.12V RMS (unbalanced, 1.8K Ohm)
Power: Minimum 9V DC 300mA – power supply included
Dimensions (WxHxD): 1.44 x 4.5 x 5.65 in.
Housing: Metal chassis
Weight: 12.8 oz
System Contains
XDT4 Digital UHF bodypack transmitter
XDR2 Digital UHF stompbox receiver
Instrument cable
9V DC Power supply included
Users guide and all necessary batteries
