The Yamaha DTXplorer Electronic Drum Kit: Loaded with Features for Both Practice and Performance.

Features of the Yamaha DTXplorer Electronic Drum Kit:

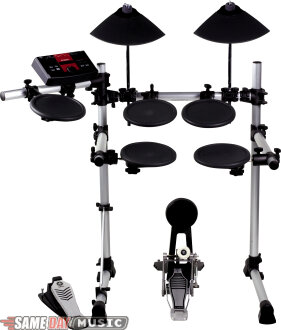

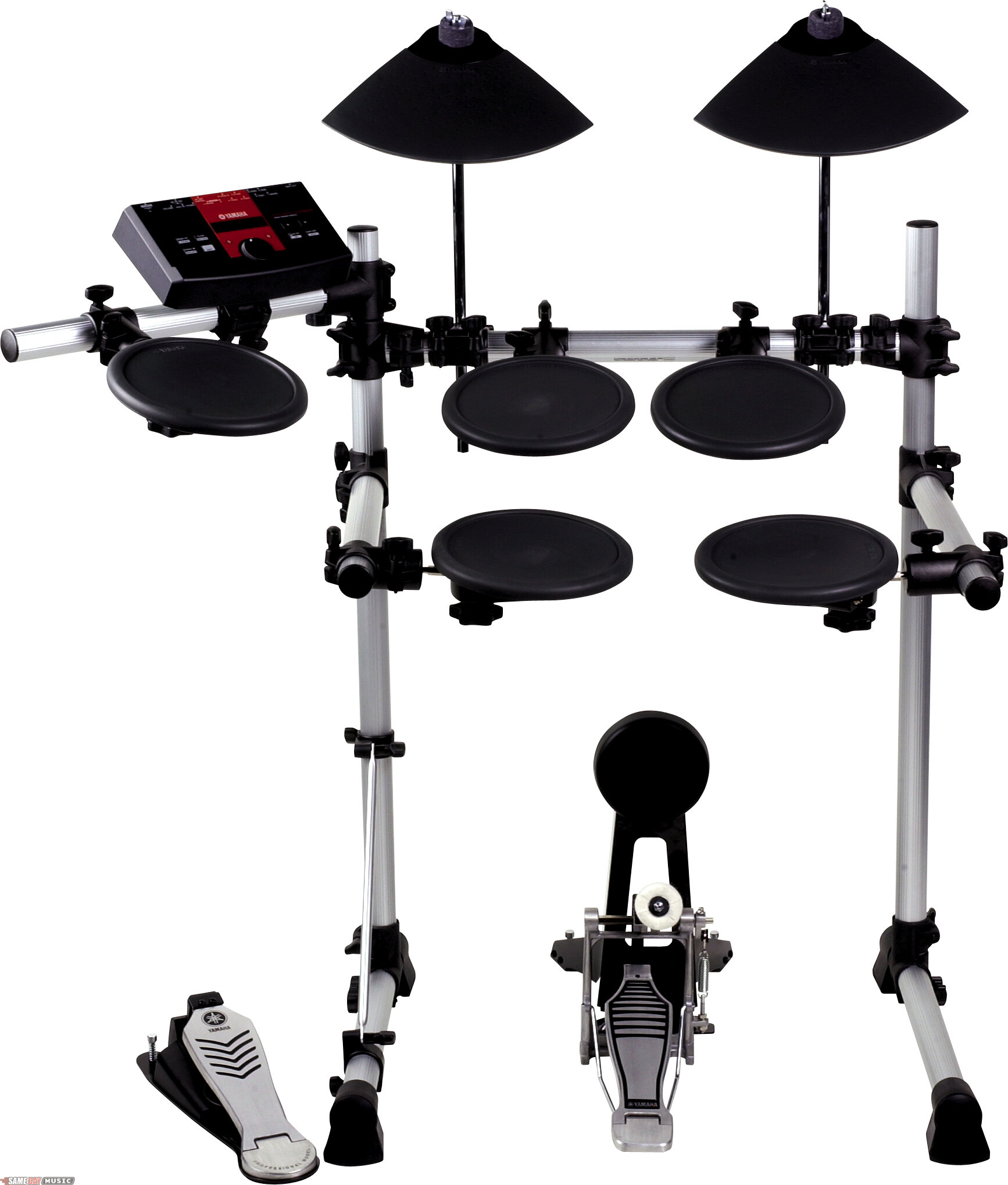

The DTXplorer has a snare pad, three tom pads, a kick pad, hi hat and two cymbal pads. The kit even includes a bass drum pedal.

32 Factory Kits, 10 User Kts, 214 Voices

The 32 factory programmed kits give you a wide variety of kits that can be used in almost any musical situation. The 10 user kits allow you to build custom kits using any of the 214 voices for your particular needs as a musician.

Groove Check with Rhythm Gate

The DTXplorer module has our popular Groove Check function, but takes it to the next level as a learning tool. You can engage the Rhythm Gate so that when you play out of time the module will mute the drums until you get back in time with the click.

Multi Zone Inputs

The snare input will acept a three zone pad giving you the head, rim shot, and cross stick sounds. The cymbal inputs will accept dual zone cymbals and allow cymbal choking.

Includes a Bass Drum Pedal

The DTXplorer comes complete with an FP-6210 strap drive pedal so you don't have to purchase a pedal seperately.

The Yamaha Story

Yamaha has been serving the needs of the music community since they manufactured their first reed organs in the late 1800's. Since then, they have expanded their vision to encompass every facet of the music industry. Their holistic approach includes musical instruments, live sound and recording equipment, and music instructional materials.

As one of the few companies to produce both instruments and recording/sound reinforcement products, Yamaha Corporation is in a unique position to improve the overall quality of their line. Their technological advancements in engineering and design can be incorporated into their musical instruments for improved functionality. Similarly, they can ensure their live sound and recording gear is designed to take advantage of the enhanced functionality of their instruments.

High quality standards are apparent in every product Yamaha manufactures. Guitars, basses, drums, keyboards, effects, cables, monitors, digital workstations, mixers, control surfaces, PA speakers, headphones, and more all receive the same attention to detail, for years of trouble-free use.

Technical Details of the DTXplorer Electronic Drum Kit:

Configuration

• Trigger Module - DTXPL


• Rack System - RS40

DTLK9 Pad Set

• TP65 (Single-zone Pad) - x5


• PCY65 (Single-zone Cymbal Pad) - x2


• KP65 (Kick Pad) - x1


• HH65 (Hi-Hat Controller) - x1


• FP6110 (Foot Pedal) - x1

Size/Weight

• Width - 252mm


• Height - 54mm


• Depth - 140mm


• Weight - 835g

DTXPL Module

Sound Engine

• Tone generator - AWM2


• Maximum Polyphony - 32 Notes


• Voices - 214 Voices/192 Drum, Percussion Voices, 22 Keyboard Voices


• Effects - Reverb 19 Types, Master EQ


• Drum Kits - 32 Preset, 10 User


• Trigger Setup - 4 Presets, 1 User memory location

Sequencer

• Song tracks - 1


• Songs - 22 Preset (2 Demo Songs, 20 Training Songs)


• Other Sequencer Functions - Mute (rhythm mute), Bass Solo, Groove Check

Click

• Tempo - 30-300/min, Tap Tempo Function


• Beat - 1-9


• Timing - 1/4, 1/8, 1/16, Triplet


• Training Functions - Measure Break, Groove Check, Rhythm Gate

Other Module Info

• Display - 16 Characters x 2 Lines Backlit LCD


• Connectors - Trigger Input Jack 1, 5, 6 (Standard Stereo Phone Jack L: Trigger, R: Rim Switch) Trigger Input Jack 2, 3, 4, 7 (Standard Phone Jack: Trigger) Trigger Input Jack 8/9 (Standard Stereo Phone Jack L: Trigger,R: Trigger) Hi-Hat Controller Jack, OUTPUT L/MONO R (Standard Phone Jack) PHONES (Standard Stereo Phone Jack), AUX IN (Stereo Mini Jack), MIDI OUT Jack, DC IN


• Power Supply - DC12V


• Power Consumption - 3.2W

Included Accessories

• PA-3C Power Adaptor
