Yamaha DTXpress IV Standard Electronic Drumset

Same Day Music is an
authorized Yamaha dealer

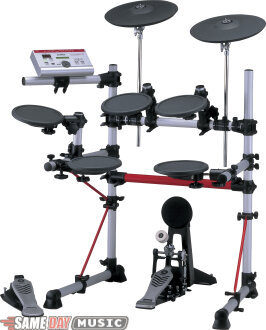

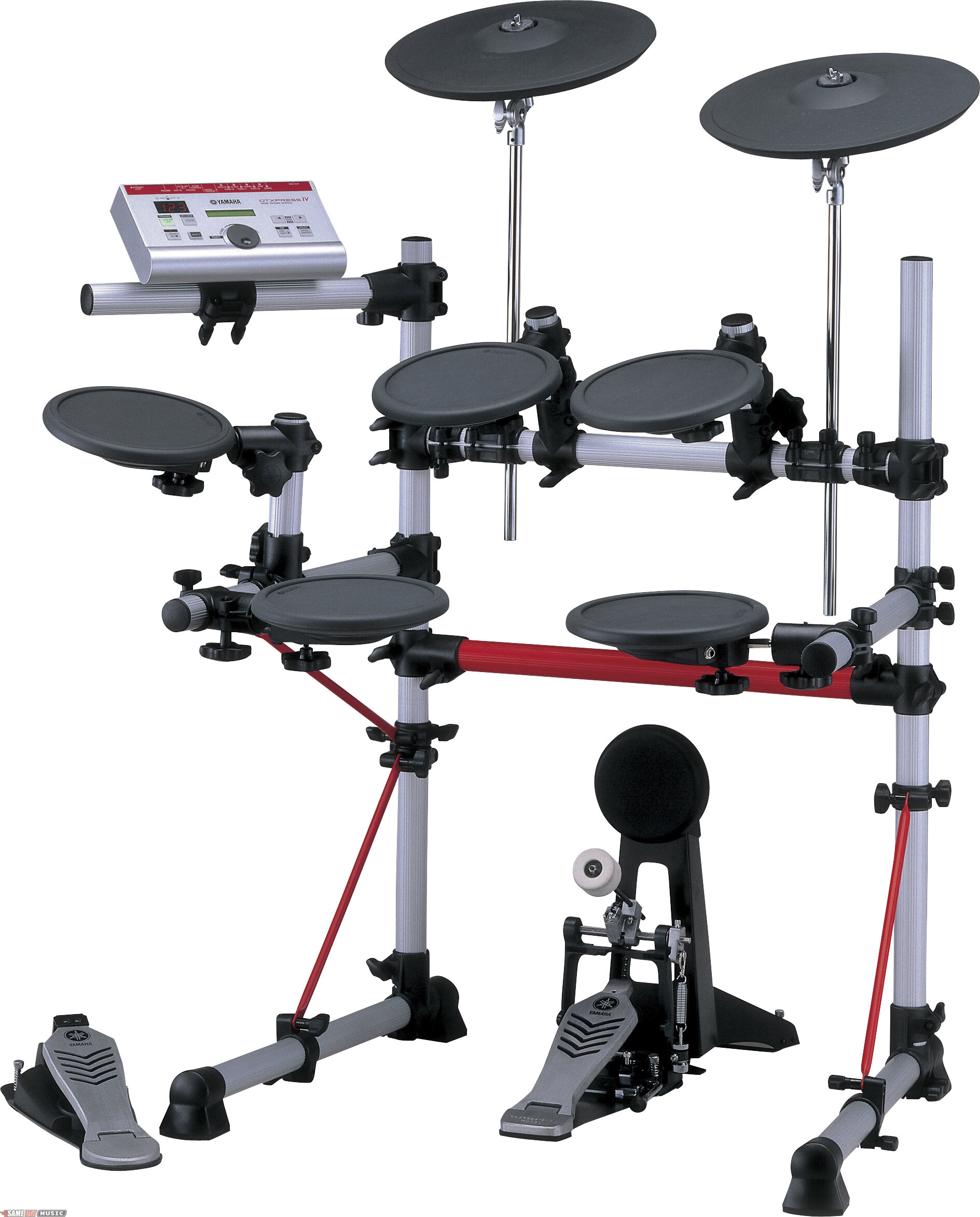

The Yamaha DTXPRESS IV Standard Electronic Drum Kit: Upgraded Voices and Cymbal Pads for an Authentic Playing Experience.

The Standard Set is compact but covers all the basics with 3-zone snare and hi-hat pads and 3-zone round cymbal pads. The kit includes:

• DTXP4 (Trigger Module)


• RS70 (Rack System)


• TP65 (Monaural Pad) - x3


• TP65S (3-zone Pad) - x2


• PCY130SC (3-zone Cymbal Pad) - x2


• KP65 (Kick Pad) - x1


• HH65 (Hi-Hat Controller) - x1


• Foot pedal and throne not included.

Features of the Yamaha DTXPRESS IV Standard Electronic Drum Kit:

Authentic Sound And Rich Expression

The DTXPRESS IV features a comprehensive selection of acoustic drum sounds including new audio waveforms of our acclaimed Oak Customs Series drums, along with a variety of percussion sounds, effects, and more are found in an expansive sound library that spans 427 voices. An AWM 2 tone generator delivers tone so natural and realistic that it will have your imagination running wild. 50 preset drum kits use a variety of different sounds to cover styles like rock, jazz, reggae, funk, Latin, and much more. And there is also memory supplied for 20 user kits so you can create and save your own original drum kits.

Pad Controller And 3-Zone Pads

Yamaha's 3-zone snare, ride cymbal, and crash pads are designed to produce up to three different voices, each from a different part of the pad. The snare pad in the Special Set is designed with a pad controller that gives you control over parameters like snare adjustment, pitch, etc., giving you playability that comes extremely close to that of an acoustic drum.

Feels Real, Plays Quiet

The way they feel, the way they play, the way they respond, it's all so close to acoustic drums. And all of that great sound and playability can be enjoyed in private, because the rubber pads keep actual sound output to a minimum. The rack system offers flexible pad placement and rock-solid stability while being compact and light weight. The DTXPRESS IV - its performance is nothing less than brilliant, and it excels in both practice and live situations.

Precision Metronome And Sequencer

The DTXPRESS IV also features the same precision metronome system that received high acclaim when introduced in the DTXPLORER. The multi-beat metronome offers fine-tuning of subdivision beats, and individual voice and pitch settings for subdivision click sounds. Groove Check function, tap function, and rhythm gate function, which only allows notes played in time to be produced, are included and feature easy, normal, and pro-grade level settings. New to these great training functions is the Challenge Mode, which automatically adjusts the level setting to help you excel in your training. The built-in sequencer's 44 internal songs are great for sharpening your rhythm skills. You can mute the drum part and play along with the song, or mute everything but the bass part (Bass Solo function) and play along with just the bass part. You can also record your own performance data in real time and then listen to the playback. 19 pad songs are also included.

DTXP4

The DTXPRESS IV features an excellent selection of Yamaha acoustic drum samples including new audio waveforms of Yamaha Oak Series acoustic drums that deliver powerful tone with a solid fundamental. The unit is also compatible with 3-zone pads and pad controller functions, giving it greater expressive power and playability. A large LED dis- play makes viewing information, such as tempo or modes, easy to see at a glance.

DTXP4 - AUX IN

With a CD, MP3, or other audio player connected to this jack, you can play along with your favorite recordings. (Drum parts cannot be muted on audio recordings.)

DTXP4 - MIDI OUT

Transmit drum performance as MIDI data to an external device.

DTXP4 - Snake Cable Makes Setup Easy

Optimal cable lengths between the module and pads keep the wiring neat. Pad names are labeled on the plug ends for quick and easy wiring.

PCY130SC Cymbal Pad (3-zone)

This DTX kit has 13" 3-zone cymbal pads in which each area of the pad, edge and bell produces a different tone. The natural "vibration" of the live cymbal sound can be faithfully reproduced.

TP65S Drum Pad (3-zone)

Don't let the compact size of the TP65S mislead you. Its 3-zone design lets you play head, open rim shot, and closed rim shot sounds all from the same pad. Authentic feel and excellent playability make it perfect for use as a snare pad, but it excels as a hi-hat pad as well.

TP65 Drum Pad (Single-zone)

This compact 8.5" single-zone pad is easy to play and offers a feel and rebound that is very close to an acoustic drum.

KP65 Kick Pad

Large rubber pad is big enough for a double foot pedal setup. Plays quietly with very natural feel.

HH65 Hi-Hat Controller

This foot pedal can produce a full range of hi-hat effects such as full open, full closed, half open, and foot splash.

RS70 Rack System

A hi-hat pad attaches to this rack system that is designed for use with the Standard Set. Its compact design is highly durable.

Standard Set configuration:

• DTXP4 (Trigger Module)


• RS70 (Rack System)


• DTP4K2STD (Pad Set)


• Foot pedal and throne not included.

The Yamaha Story

Yamaha has been serving the needs of the music community since they manufactured their first reed organs in the late 1800's. Since then, they have expanded their vision to encompass every facet of the music industry. Their holistic approach includes musical instruments, live sound and recording equipment, and music instructional materials.

As one of the few companies to produce both instruments and recording/sound reinforcement products, Yamaha Corporation is in a unique position to improve the overall quality of their line. Their technological advancements in engineering and design can be incorporated into their musical instruments for improved functionality. Similarly, they can ensure their live sound and recording gear is designed to take advantage of the enhanced functionality of their instruments.

High quality standards are apparent in every product Yamaha manufactures. Guitars, basses, drums, keyboards, effects, cables, monitors, digital workstations, mixers, control surfaces, PA speakers, headphones, and more all receive the same attention to detail, for years of trouble-free use.

Technical Details of the Yamaha DTXPRESS IV Standard Electronic Drum Kit:

Configuration

• Trigger Module - DTXP4


• Rack System - RS70

Pad Set

• TP65 (Monaural Pad) - x3


• TP65S (3-zone Pad) - x2


• PCY130SC (3-zone Cymbal Pad) - x2


• KP65 (Kick Pad) - x1


• HH65 (Hi-Hat Controller) - x1

Size/Weight

• Width - 252mm


• Height - 52mm


• Depth - 147mm


• Weight - 898g

Power Supply

• Power Requirements - DC12V


• Power Consumption - 13.0W

DTXP4 Module

Sound Engine

• Tone Generator - AWM2


• Maximum Polyphony 32 Notes


• Voices - 449 Voices/427 Drum, Percussion Voices, 22 Keyboard Voices


• Effects - Reverb 19 Types, Master EQ


• Drum Kits - 50 Preset, 20 User

Trigger

• Trigger Setup - 7 Presets, 4 User


• Pad Songs - Start/Stop, Chase, Cut Off3 songs (max.) can be played simultaneously.


• Pad Controller - Snare Adjustment, Tuning, Tempo


• Pad Functions - Drum Kit INC/DEC, Click Set INC/DEC, Tempo INC/DEC, Click ON/OFF

Sequencer

• Note Capacity - Approximately 16,000 notes


• Note Resolution - 96 parts per quarter note


• Song recording type - Real Time


• Song tracks - 1


• Songs - 3 Demo Songs, 41 Training Songs, 19 Pad Songs, 20 User Songs

Click

• Tempo - 30-300/min, Tap Tempo Function


• Beat - 1-9


• Timing - Accent, 1/4, 1/8, 1/16, Triplet


• Click Sound Sets - 30


• Click Timer - 0-600 seconds (in 30-second steps)


• Training Functions - Measure Break, Groove Check, Rhythm Gate Function

Other Module Info

• Display - 16 Characters x 2 Lines Backlit LCD, 3-Digit 7-Segment LED


• Connectors - Trigger Input Jack 1, 5, 6, 7 (Standard Stereo Phone Jack L: Trigger, R: Rim Switch), Trigger Input 2/10, 3/11, 4/12, 8/9 (Standard Stereo Phone Jack L: Trigger, R: Trigger) Hi-Hat Controller Jack, OUTPUT L/MONO R Jack(Standard Phone Jack), PHONES (Standard Stereo Phone Jack), AUX IN Jack (Stereo Mini Jack), MIDI OUT, DC IN


• Power Supply - DC12V


• Power Consumption - 13.0W

Included Accessories

• PA-3C Power Adaptor
