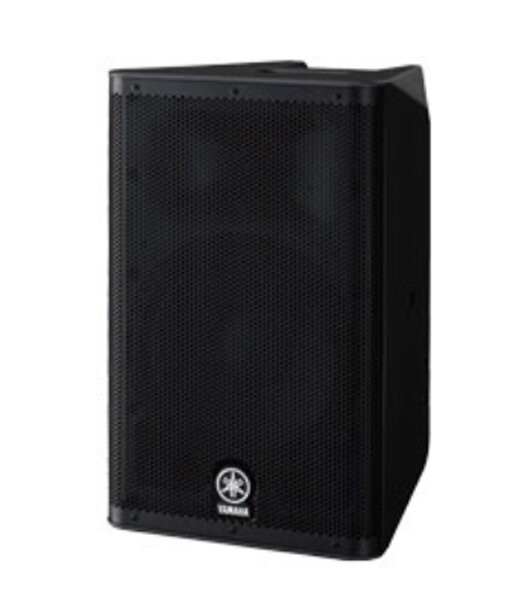

    Yamaha DXR10 Powered Speaker (1x10")

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Yamaha DXR10 Powered Speaker (1x10") Product Description

    Portable, yet capable of producing an astonishing 131 dB SPL, the Yamaha DXR10's compact, functional design makes it ideal for a wide range of applications. Whether comprising a compact SR system or providing simple vocal / instrument amplification, the onboard mixer eliminates the need for an external mixer - without compromising sound quality and power.

    Same Day Music is an authorized dealer of Yamaha products.

    Yamaha DXR10 Powered Speaker, 1x10 in. Technical Description

    - Speaker type: 10" 2-way, Bi-amp powered speaker, Bass-reflex type
    - Frequency Range (-10dB): 56Hz - 20kHz
    - Nominal coverage: H: 90*
    - V: 60*
    - Components: LF: Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
    - HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
    - Crossover: FIR-X tuning(TM) (linear phase FIR filter)
    - Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
    - Maximum output level (1m; on axis): 131dB SPL
    - I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
    - Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
    - Power requirements: 100V - 240V, 50Hz/60Hz
    - Power consumption: 90W
    - Flying and mounting hardware: Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
    - Pole socket: 35mm with 2-way features (0 or 7 degrees)
    - Dimensions: W: 305mm (12")
    - H: 502mm (19 6/8")
    - D: 310mm (12 2/8")
    - Net weight: 14.6kg (32.2lbs)
    - Accessories: UB-DXR10
    - Others: Material: ABS (Matte Finish, Black)

    Same Day Music is an authorized dealer of Yamaha products.
    Shipping Weights and Dimensions
    Base Item
    Shipping Weight: 38 lbs
    Shipping Dimensions: 26 x 15 x 15 in
    Pair
    Shipping Weight: 76 lbs
    Pair, with DXS12 Subwoofer
    Shipping Weight: 154 lbs
