Product Description

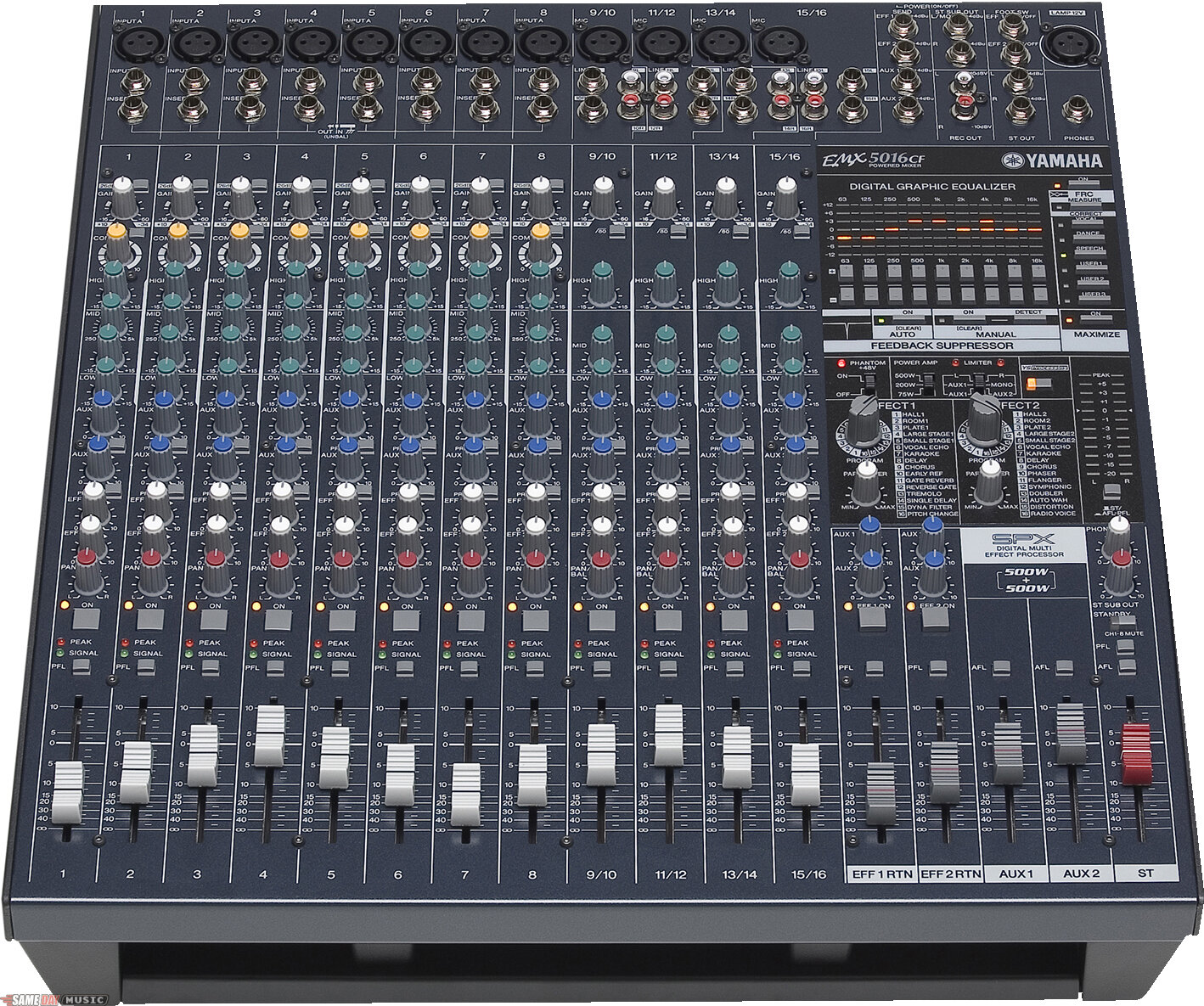

The Yamaha EMX5016CF delivers the convenience of an integrated powered mixer with input capacity, flexible features, and solid sound that critical live applications demand. It is remarkably compact and portable for a live sound system with this much capability. And thanks to leading Yamaha digital technology, the EMX5016CF also includes a number of innovations that make it easier than ever to achieve top-class sound in just about any venue. An impressive power output of 500 watts per channel means it can handle fairly large audiences, indoors or out. The EMX5016CF goes considerably beyond the standard definition of "powered mixer," entering the realm of serious sound reinforcement.

Features:
16 inputs (12 mic & 5 stereo line)

2x500W Class H power amplifiers

3-band EQ/mid sweep

Dual 32-bit SPX digital effect processors

Single-knob compressors on each mono input

9-band digital graphic EQ w/memories

FRC (Frequency Response Correction)

Feedback suppression (Auto and Manual)

3-Band output "Maximizer"

Lamp socket

Technical Description

Maximum Output Power Per side @ 0.5 % THD at 1 kHz:
- 500 W/4 Ohms
- 350 W/8 Ohms

Frequency Response: -3, 0, 1 dB 20Hz-20kHz, ref to the 1kHz output level, GAIN=MIN, PAD=OFF

Total Harmonic Distortion: Less than 0.3 % (THD+N) +14dBu output into 600 Ù @ 20 Hz-20 kHz

Hum & Noise: Equivalent Input Noise, -128 dBu, GAIN=MAX, 20 Hz-20 kHz, CH1-8 MIC

Crosstalk @ 1 kHz: -68 dB

Input Connectors:
- CH 1-8: XLR and Phone
- CH 9/10-15/16: XLR. Phone and Pin

Channel EQ:
- CH 1-8: HIGH (10 k, Shelving), MID (mono: 250-5 k, st: 2.5 k, Peaking), LOW (100, Shelving)
-CH 9/10-15/16: HIGH (10 k, Shelving), MID (st: 2.5 k, Peaking), LOW (100, Shelving)

Phantom Voltage: 48 V

Digital Graphic Equalizer: 9 Band (63, 125, 250, 500, 1 k, 2 k, 4 k, 8 k, 16 kHz), Preset x 3, User preset x 3

Digital Effects: SPX Digital Multi Effector (24 bit AD/DA, 32 bit Internal Processing): 16 Programs x 2

Power Amp. Mode: L/R, AUX1/MONO, AUX1/2

Foot Switch: Effect On/Off

Dimensions: 17-3/8 inches Wide x 19-3/8 inches Deep x 6-1/8 inches High

Weight: 11 kg (24.2 lbs.)

Power Requirements/Consumption:
- 120 V 60 Hz, 500W
- 220-240 V 50 Hz, 500W

Catalog Description

16 channels with 12 XLR mic inputs and phantom power@Stereo 9-band graphic EQ@Single 24-bit effects processor@Feedback-detection, 1-knob compression@500 watts per channel at 4 ohms@Speakon and 1/4" outputs.
