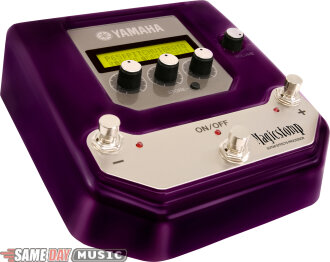

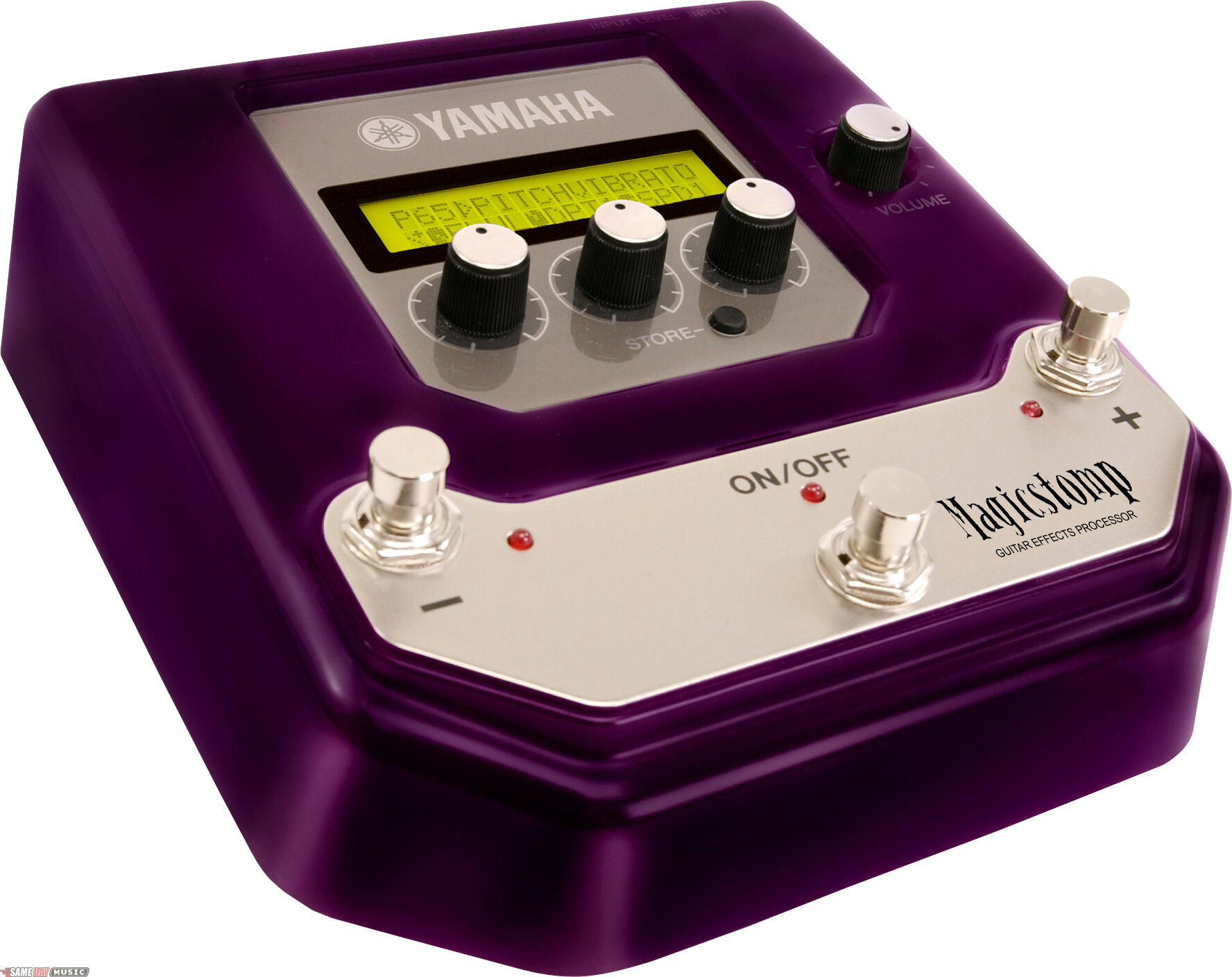

Yamaha Magicstomp II Guitar Effects Processor
63 effects. 99 factory, 99 user patches. USB interface.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
ADDITIONAL VIEWS:
Main
Rear
MORE RESOURCES:
- Heavy High Gain2
- Clean Cutting2
- Womanizer
- Blues Solo
- D Filter Up
- Arp Delay
- Hi Voltage
- Flangitis
- Buzz Saw Fuzz2
- Clean Cutting
- Bats
- Sparkle Mod
- Blues Solo2
- Diminish
- Spring Reverb
- Ringmod
- Buzz Saw Fuzz
- Flangitis2
- Analog Mod Delay
- Traktor
- Modern High Gain
- Battery Amp
- Symph Delay
- Fat Germ Fuzz
- Small Comp
- Class A Crunch
- Analog Phaser
- UDvolswell
- Heavy High Gain
- Heavy Extreme
- Shallow Waters
- Pitch Shift
- Long Sustained Lead
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The new Magicstomp II includes all the same killer effects parameters of the original, plus great new features including onboard deep editing capability and a headphone output.
Features
99 factory preset patches, 99 user patches
63 effects algorhythms/thousands of effects combinations
24-bit AD/DA converter
USB interface
Compatible with Apple Macintosh OS and Microsoft Windows 98/2000/XP
Headphone output for private monitoring
www.magicstomp.com for end-user uploads/downloads
Award-winning effects from SPX series and AG/DG/UD Stomp pedals
Limited lifetime warranty
Features
99 factory preset patches, 99 user patches
63 effects algorhythms/thousands of effects combinations
24-bit AD/DA converter
USB interface
Compatible with Apple Macintosh OS and Microsoft Windows 98/2000/XP
Headphone output for private monitoring
www.magicstomp.com for end-user uploads/downloads
Award-winning effects from SPX series and AG/DG/UD Stomp pedals
Limited lifetime warranty
TECHNICAL DESCRIPTION
Digital Section:
-- EDigital signal processing effector
-- Includes special editor application, "Sound Editor for MAGICSTOMP"
-- Patch select: 2 modes
-- Built-in chromatic auto tuner
Communications:
-- Receive: parameter change, bulk in (1 patch), bulk in (99 patch)
-- Transmit: bulk out (99 patch)
Controller/switch:
-- Knob x 4: control 1, 2, 3, volume
-- Push switch x 4: -, +, on/off, store
-- Slide switch x1: input level (high/low)
-- Display: 16 x 2 character LCD (w/back light) LED x 3 (-, +, on/off)
Connections:
-- Input: standard monaural phone jack
-- Output L/mono, R: standard monaural phone jack
-- USB
-- AC in
A/D converter: 24 bit + 3 bit floating
D/A converter: 24 bit
Sampling frequency: 44.1 kHz
Memory allocations:
-- Preset: 99
-- User: 99
Input Level/Impedance:
-- Input high: -25dBm/1 M
-- Input low: -15dBm/1 M?
Output level/impedance:
-- Output L/mono, R: 0dBm/1 k?
Additional output:
-- Headphone output
Power:
-- Exclusive power adapter (AC-10)
-- AC output: AC 12 V, 1 A
Power consumption: 12 W
Dimensions (W x H x D): 6-7/16 x 2-7/16 x 6-15/16 in. (164 x 62 x 176mm)
Weight: 2 lbs (910g)
System Requirements for Windows
Sound Editor for MAGICSTOMP:
-- OS: Windows 98/Me/2000/XP Home Edition/XP Professional
-- Computer: 166 MHz or higher; Intel Pentium/Celeron processor
-- Available memory: 32 MB or more
-- Hard disk: 2 MB or more
USB MIDI Driver:
-- OS: Windows 98/Me/2000/XP Home Edition/XP Professional
-- Computer 166 MHz or higher; Intel Pentium/Celeron processor
-- Available memory: 32 MB or more (64 MB or more is recommended)
-- Hard disk: 2 MB or more.
System Requirements for Macintosh
Sound Editor for MAGICSTOMP:
-- OS: Mac OS 8.6 through Mac OS 9.22
(The Mac OS X and Mac Classic environments are not supported)
-- Computer: a Macintosh computer with a PowerPC or later CPU
-- Available memory: 16 MB or more
-- Hard disk: 32 MB or more
-- Display: 800 x 600, 32,000 colors or more
USB MIDI Driver:
-- OS: Mac OS 8.5 through Mac OS 9.22 (The Mac OS X and Mac classic environments are not supported)
-- Computer: a Macintosh computer with a USB connector and a PowerPC or later
-- Memory: 64 MB or more (128 MB or more is recommended)
* Turn off virtual memory.
-- Hard disk: 2 MB or more
-- Other: OMS 2.3.8 (included in the CD-ROM in the package)
* Minimum system requirements -- The system requirements above may differ slightly depending on the particular operating system.
-- EDigital signal processing effector
-- Includes special editor application, "Sound Editor for MAGICSTOMP"
-- Patch select: 2 modes
-- Built-in chromatic auto tuner
Communications:
-- Receive: parameter change, bulk in (1 patch), bulk in (99 patch)
-- Transmit: bulk out (99 patch)
Controller/switch:
-- Knob x 4: control 1, 2, 3, volume
-- Push switch x 4: -, +, on/off, store
-- Slide switch x1: input level (high/low)
-- Display: 16 x 2 character LCD (w/back light) LED x 3 (-, +, on/off)
Connections:
-- Input: standard monaural phone jack
-- Output L/mono, R: standard monaural phone jack
-- USB
-- AC in
A/D converter: 24 bit + 3 bit floating
D/A converter: 24 bit
Sampling frequency: 44.1 kHz
Memory allocations:
-- Preset: 99
-- User: 99
Input Level/Impedance:
-- Input high: -25dBm/1 M
-- Input low: -15dBm/1 M?
Output level/impedance:
-- Output L/mono, R: 0dBm/1 k?
Additional output:
-- Headphone output
Power:
-- Exclusive power adapter (AC-10)
-- AC output: AC 12 V, 1 A
Power consumption: 12 W
Dimensions (W x H x D): 6-7/16 x 2-7/16 x 6-15/16 in. (164 x 62 x 176mm)
Weight: 2 lbs (910g)
System Requirements for Windows
Sound Editor for MAGICSTOMP:
-- OS: Windows 98/Me/2000/XP Home Edition/XP Professional
-- Computer: 166 MHz or higher; Intel Pentium/Celeron processor
-- Available memory: 32 MB or more
-- Hard disk: 2 MB or more
USB MIDI Driver:
-- OS: Windows 98/Me/2000/XP Home Edition/XP Professional
-- Computer 166 MHz or higher; Intel Pentium/Celeron processor
-- Available memory: 32 MB or more (64 MB or more is recommended)
-- Hard disk: 2 MB or more.
System Requirements for Macintosh
Sound Editor for MAGICSTOMP:
-- OS: Mac OS 8.6 through Mac OS 9.22
(The Mac OS X and Mac Classic environments are not supported)
-- Computer: a Macintosh computer with a PowerPC or later CPU
-- Available memory: 16 MB or more
-- Hard disk: 32 MB or more
-- Display: 800 x 600, 32,000 colors or more
USB MIDI Driver:
-- OS: Mac OS 8.5 through Mac OS 9.22 (The Mac OS X and Mac classic environments are not supported)
-- Computer: a Macintosh computer with a USB connector and a PowerPC or later
-- Memory: 64 MB or more (128 MB or more is recommended)
* Turn off virtual memory.
-- Hard disk: 2 MB or more
-- Other: OMS 2.3.8 (included in the CD-ROM in the package)
* Minimum system requirements -- The system requirements above may differ slightly depending on the particular operating system.
