Product Description

2-way Powered Monitor Speaker System that Delivers Quality Audio and Excellent Cost Performance

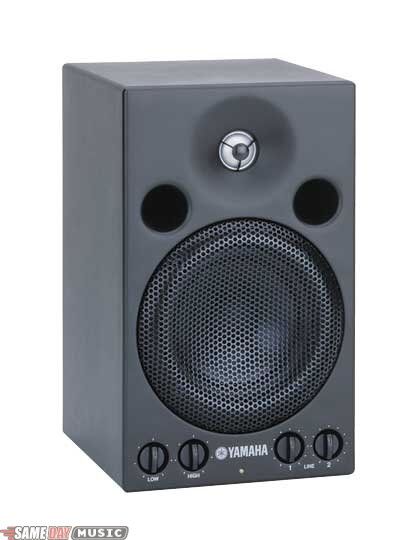

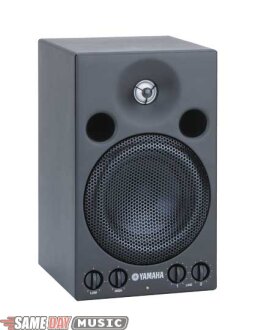

The MSP3 Powered Monitor Speaker is a 2-way powered monitor speaker system that delivers quality audio and excellent cost performance. Designed for use in personal music production systems, each unit features a built-in 20-watt amplifier that drives both the 10cm (4 in.) cone and 2.2cm (7/8 in.) tweeter. To facilitate connection with a variety of audio sources, each monitor is equipped with a balanced XLR input, for direct compatibility with professional equipment, a balanced phone jack input and an unbalanced RCA jack input. The MSP3 also features separate volume controls for the Line 1 (RCA jack) input and Line 2 (XLR/phone) input plus High and Low tone controls for sound tailoring.

The enclosure is a bass-reflex type that also incorporates Yamaha's Waveguide Technology for uniform dispersion of the tweeter's high frequencies. Magnetic shielding and compact size allows the monitors to be placed near any type of audio, video or computer equipment. The monitor can also be attached to a mic stand with the optional BMS10A Mic Stand Adapter.

Features:

Compact, 2-way powered monitor system

Built-in 20-watt amplifier

2 Line inputs

Balanced XLR, balanced phone jack and unbalanced RCA jack inputs for versatile connectivity

High and Low tone controls for sound tailoring

Separate Line 1 and Line 2 level controls

Waveguide technology delivers broad, uniform dispersion of high frequencies for optimum.

Magnetic shielding

Mic stand mountable with optional BMS10A Mic Stand Adapter

Excellent cost performance

(Features subject to change without notice)

Technical Description

Components:
LF: 10cm (4 in.) cone
HF: 2.2cm (7/8 in.) Tweeter

Enclosure: Bass-reflex Type

Output power: 20W

Input Sensitivity/Input Impedance:
Line 1: -10dB / 10k
Line 2: +4dB /10k

Input Connectors:
Line 1: RCA pin unbalanced
Line 2: XLR balanced or Phone balanced

Controls Level Control: Line 1& Line 2

Tone Control: Low, High

Power SW: On/Off

Power Requirement: US & Canadian Models AC120V 60Hz

Power Consumption: 30W

Type: 2-way powered speaker

Crossover Frequency: 4kHz

Overall Frequency Response: 65Hz-22kHz

Maximum SPL: 98dB (1m)

Dimensions (W X H X D): 144 × 236 × 167 mm (5-11/16 in. × 9-5/16 in. × 6-9/16 in.)

Weight: 3.7kg (8.16 lbs)

Catalog Description

High quality in a compact powered monitor@4" woofer, 7/8" tweeter@20 watts@XLR, 1/4", and RCA inputs
