Product Description

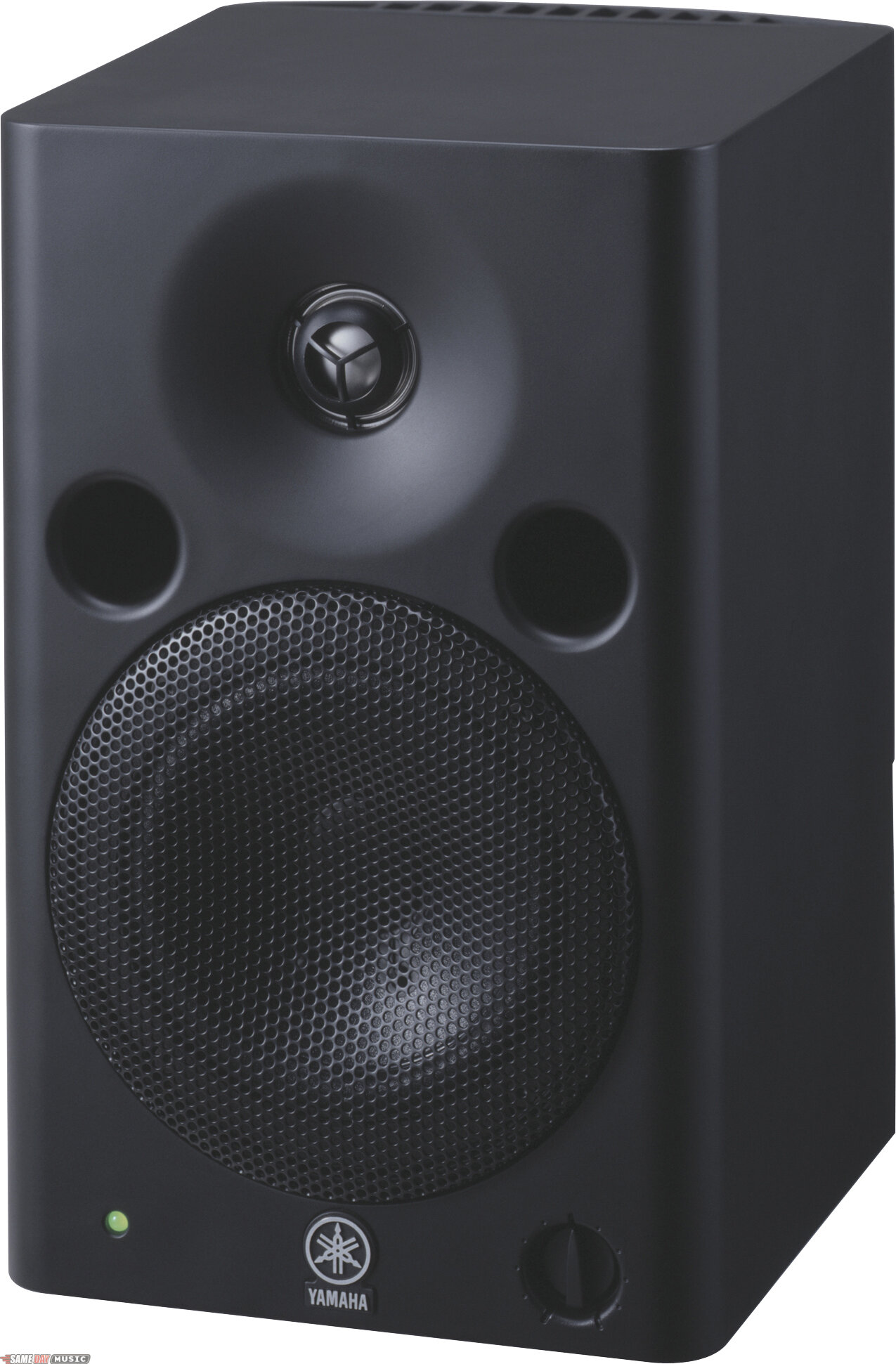

MSP5 Studio Powered Monitor Speaker
Like the larger MSP7 Studio, the MSP5 Studio is a 2-way bi-amplified bassreflex system that delivers outstanding monitoring precision for digital or analog production in stereo or surround formats. The more compact dimensions of the MSP5 Studio make it an ideal choice for smaller project studios and DAW based production systems. The MSP5 Studio features a 5 in. cone woofer driven by a 40-watt amplifier and a 1 in. dome tweeter driven by a 27-watt amplifier. Other than woofer size, enclosure size, and amplifier power, the MSP5 Studio takes advantage of the same advanced materials and design technology that are behind the extraordinary performance of the MSP7 Studio. The woofer and titanium-dome tweeter feature advanced magnetic structures that achieve exceptionally low distortion, and the tweeter works with a unique waveguide horn that achieves broad, uniform high frequency dispersion over 120 degrees for optimum balance regardless of listening position. Advanced driver and enclosure design including the low-diffraction rounded baffle also ensure smooth, uniform dispersion across the systems full reproduction range. Flat frequency response out to 40 kHz makes the MSP5 Studio great for mastering, where high sample and bit rates are the norm.

Magnetically Shielded Enclosures
Along with their compact size and excellent performance, full magnetic shielding allows the MSP5 Studio speakers to be positioned near all types of audio, video, and computer equipment without sound degradation or negative effects on surrounding equipment.

Professional Connectivity
The MSP5 Studio has a balanced XLRtype input for direct compatibility with professional equipment. Balanced lines are ideal if the speakers are to be placed at the end of long cable runs which, if unbalanced, might be susceptible to hum and induced noise. The MSP5 Studio also offers an unbalanced 1/4 in. phone jack connector.

Trim Switches for Easy Room Matching
The MSP5 Studio is equipped with four position low and three position high trim switches that allow the systems response to be optimized for a wide range of acoustic environments.

Yamaha's "Studio" series monitors have been designed with serious monitoring in mind. Emphasis is on reference-quality reproduction precision that lets you hear sonic details, rather than flattering sound. They carry on in the tradition of the venerable NS10M Studio monitor Studio, which was the definitive near-field speaker monitor in an overwhelming majority of professional studios throughout the world for many years from the 80s onward. But technology has evolved dramatically right throughout the audio chain, and speakers must follow suit. The new top-of-the-line MSP7 Studio Powered Monitor Speaker is capable of delivering consistent quality and performance that you can rely on in modern production environments that handle any combination of digital and analog sources as well as stereo and surround formats.

Technical Description

General
Type; Biamp 2-way Powered Speaker

Crossover Frequency; 2.5 kHz LF: 30dB/oct, HF: 30dB/oct

Overall Frequency Response; 50 Hz - 40 kHz (-10 dB)

Maximum Output Level; 101 dB, 1 m on Axis

Dimensions (W x H x D); 179 x 279 x 208 mm

Weight; 7.9 kg

Magnetic Shielding; Yes

Speaker Section
Components;
LF: 5 in. cone
HF: 1.0 in. Titanium dome

Enclosure; Bass-Reflex

Amplifier Section
Output Power;
LF: 40 W THD = 0.02 %, RL = 4 ?
HF: 27 W THD = 0.02 %, RL = 6 ?

S/N, IHF-A filter; > 94 dB, LEVEL = Max

Input Sensitivity;
XLR-3-31: +4 dBu, LEVEL = Center -6 dBu, LEVEL = Max
PHONE: -10 dBu, LEVEL = Center -20 dBu, LEVEL = Max

Input Connectors, Impedance;
XLR-3-31 (balanced), 10 k ohms
PHONE (unbalanced), 10k ohms

Controls;
LEVEL control: 31 Positions Detent type VR (Min = -? Attenuation)
LOW CUT switch: N/A
HIGH TRIM: +1.5/0/-1.5 dB at 15 kHz
LOW TRIM: +1.5/0/-1.5/-3 dB at 60 Hz
POWER SWITCH: on/off
PHASE SWITCH: N/A
LPF control: N/A

Indicators; LED -- Green: Power On / Red: Clipping

Power Consumption; 60 W

* These specifications apply to rated power supplies of 100, 120, 230 and 240 V.
* Specifications and appearance subject to change without notice.
