    Yamaha P3500S Stereo Power Amplifier, 550 Watts

    The Yamaha P3500S stereo power amplifier features XLR, 1/4", Neutrik Speakon, and 5-Way binding post connectors along wtih 550 watts of power.
    Product Rated 8.9 Out of 10 (15 ratings)
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 1ZZ-L5KQ

    Web Item #YAMP3500S

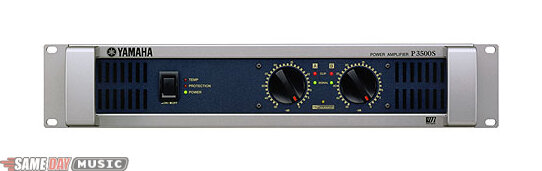

    Yamaha P3500S Power Amplifier
    View Larger Image

    More Resources

    Manuals and Documents: Owner's Manual
    Yamaha Warranty: If you have additional warranty questions, please call the manufacturer at 714-522-9011
    In Stock | Will Ship Wed
    • 2 Day: $22
    • Overnight: $68
    This product ships to: Can ship to United States Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Yamaha P3500S P Series II Stereo Power Amplifier (550 Watts) Product Description

    The P-Series amps are an ideal match to Yamaha's popular Club Series loudspeakers and deliver a robust amount of pro quality power in a wide range of configurations designed to suit most any need. To achieve this, they're designed with big power output, and equipped with YS (Yamaha Speaker) Processing to deliver a signal that is tuned to the needs of the Club Series loudspeakers. All models feature both XLR and 1/4-inch TRS inputs and Neutrik Speakon (tm), 1/4 in., and 5-way binding post outputs to make connections quick and easy. Other features include Yamaha's exclusive EEEngine technology which delivers high performance with exceptional efficiency, sweepable high and low pass filters for optimizing output to any loudspeakers, compact and durable 2U chassis, and variable speed cooling fans.

    Big Output Power

    The P-Series Power Amplifiers deliver a robust amount of professional quality power in a wide range of configurations designed to suit most any need. In a 4- ohm bridged application, the P7000S delivers 3200 watts, the P5000S delivers 2600 watts, the P3500S 2000 watts, and the P2500S 1300 watts.

    Those on a budget will find the lineup's high power output and affordable prices deliver higher quality without putting a strain on funds. Further savings are realized with extremely efficient operation utilizing Yamaha's exclusive EEEngine technology which keeps operational costs down by significantly reducing AC power consumption and heat generation.

    The Perfect Match

    The P-Series Power Amplifiers can be used with any loudspeaker system, but if you're using the Club Series, they will provide power and performance tailored to deliver maximum performance from your system. In an 8-ohm stereo application power output per channel on the P7000S is 700 watts, the P5000S 500 watts, the P3500S 350 watts, and the P2500S 250 watts. This wide selection lets you choose the amplifier that best matches the power handling capabilities of your speaker system.

    All four models are equipped with independent sweepable high and low pass filters on each channel so you can optimize output for subwoofer or full range systems to provide peak audio quality and performance from any speaker system you may be using.

    Light Weight and Setup Easy

    Look at the specifications and you'll notice that the P2500S and P3500S are respectably light in weight making transport and setup less strenuous. What's amazing though, is the comparison in weight per watt when you look at the P5000S and P7000S. The use of a switching power supply makes these two models very lightweight while maintaining superior audio quality.

    Flexible Connectivity

    To provide the most flexible connectivity possible, all four models are equipped Neutrik Speakon (tm) output jacks, and 1/4-inch output jacks for each channel in addition to 5-way binding post. Channel inputs consist of both XLR and 1/4-inch TRS jacks.

    * Speakon is the registered trademark of Neutrik AG.

    Other Features

    The P-Series' industrial design delivers a refined and impressive look with deep blue faceplates bordered in silver trim, handles, and mounts. The chassis is specially designed to provide added durability and strength. Continuously variable-speed fans mounted internally on either side of the front panel offer quiet, efficient cooling. Comprehensive protection consists of power on/off muting, DC detection, thermal protection, current limiting, and a protective cover for the attenuators is also supplied.


    EEEngine (Energy Efficient Engine) Technology makes more efficient use of AC power by reducing power consumption and heat generation without degrading output power or sound quality. When power requirements are low, the system uses a highly efficient current buffer to transparently switch input power on and off as needed. As power requirements increase, an independently responding auxiliary power line supplies additional power as required. Output isn't compromised, as the auxiliary power line is driven by the power supply voltage, which maintains maximum output to the speaker load.

    YS Processing

    With YS Processing (Yamaha Speaker Processing), you get direct compatibility with the popular Club Series loudspeaker systems. This special circuit optimizes output from the power amplifier to match the characteristics of Club Series speaker systems delivering a signal that is precisely what the speaker requires. With the YS Processing system, extra-smooth highs and enhanced low frequency from your Club Series loudspeaker system is assured.

    Same Day Music is an authorized dealer of Yamaha products.

    Yamaha P3500S Technical Description


    Output Power
    1kHz, THD+N=1% 8 Ohms Stereo: 390W + 390W
    1kHz, THD+N=1% 4 Ohms Stereo: 590W + 590W
    1kHz, THD+N=1% 8 Ohms Bridge: 1180W
    20Hz-20kHz, THD+N=1% 8 Ohms Stereo: 350W + 350W
    20Hz-20kHz, THD+N=1% 4 Ohms Stereo: 450W + 450W
    20Hz-20kHz, THD+N=1% 8 Ohms Bridge: 900W
    1kHz, 20mS nonclip 2 Ohms Stereo: 1000W + 1000W
    1kHz, 20mS nonclip 4 Ohms Bridge: 2000W

    Power Bandwidth (half power): 10Hz-40kHz (THD+N=0.5%)

    THD+N (20Hz - 20kHz, half power): Maximum 0.1%

    Intermodulation Distortion (60Hz: 7kHz, 4:1, half power: Maximum 0.1%

    Frequency Response: 0dB, +0.5dB, - 1dB f=20Hz-50kHz

    Channel Separation: Minimum 70dB 1kHz

    Residual noise (Att. min.): Maximum 70dB

    S/N Ratio: 102 dB

    Damping Factor: 200 max.

    Sensitivity @8 Ohms +4dB

    Voltage Gain (Att. max): 32.1dB

    Input Impedance: 30kOhms balanced; 15kOhms unbalanced

    Front Panel: POWER switch (push on/push off) attenuator (31position) x 2
    Rear Panel:
    FREQ. CONTROL (25Hz-150Hz) x 2

    Input: XLR-3-31 type/ch, 1/4 in.
    Output: SPEAKON, 5-way biding post, 1/4 in. phone/ch

    POWER: x 1 (Green)
    PROTECTION: x 1 (Red)
    TEMP: x 1 (Red) heatsink temp 85 degrees
    YS PROCESSING: x 1 (Yellow)
    SIGNAL: x 2 (Green)
    CLIP: x 2 (Red)

    Load Protection
    POWER switch on/off mute
    DC-fault power output cut

    Amplifier Protection
    Thermal (heatsink) temp 90 degrees C
    VI limiter
    Limiter Circuit: Comp. THD 0.5%
    Cooling: Dual variable-speed fan / Single variable-speed fan

    Power Requirements: USA/120V 60Hz

    Idle Power Consumption: 30W

    1/8 Power Consumption: 450W

    Maximum Power Consumption (4 Ohms): 2000W

    Dimensions (W x H x D): 18-7/8 in. x 3-7/16 in. x 17-15/16 in.

    Weight: 26.5 lbs

    Same Day Music is an authorized dealer of Yamaha products.
    Shipping Weights and Dimensions
    Shipping Weight: 37 lbs
    Shipping Dimensions: 23 x 23 x 8 in

    Yamaha P3500S P Series II Stereo Power Amplifier (550 Watts) Catalog Description

    Robust, reliable power amp@Sweepable low- and high-pass filters@Switchable YS processing for Yamaha Club Series speakers@XLR and TRS inputs; Speakon, 1/4", and binding post outputs@390 watts per side at 8 ohms

    Same Day Music is an authorized dealer of Yamaha products.
