Yamaha SW10 Studio Powered Subwoofer (120 Watts, 1x10 in.)
Refined monitoring precision.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:

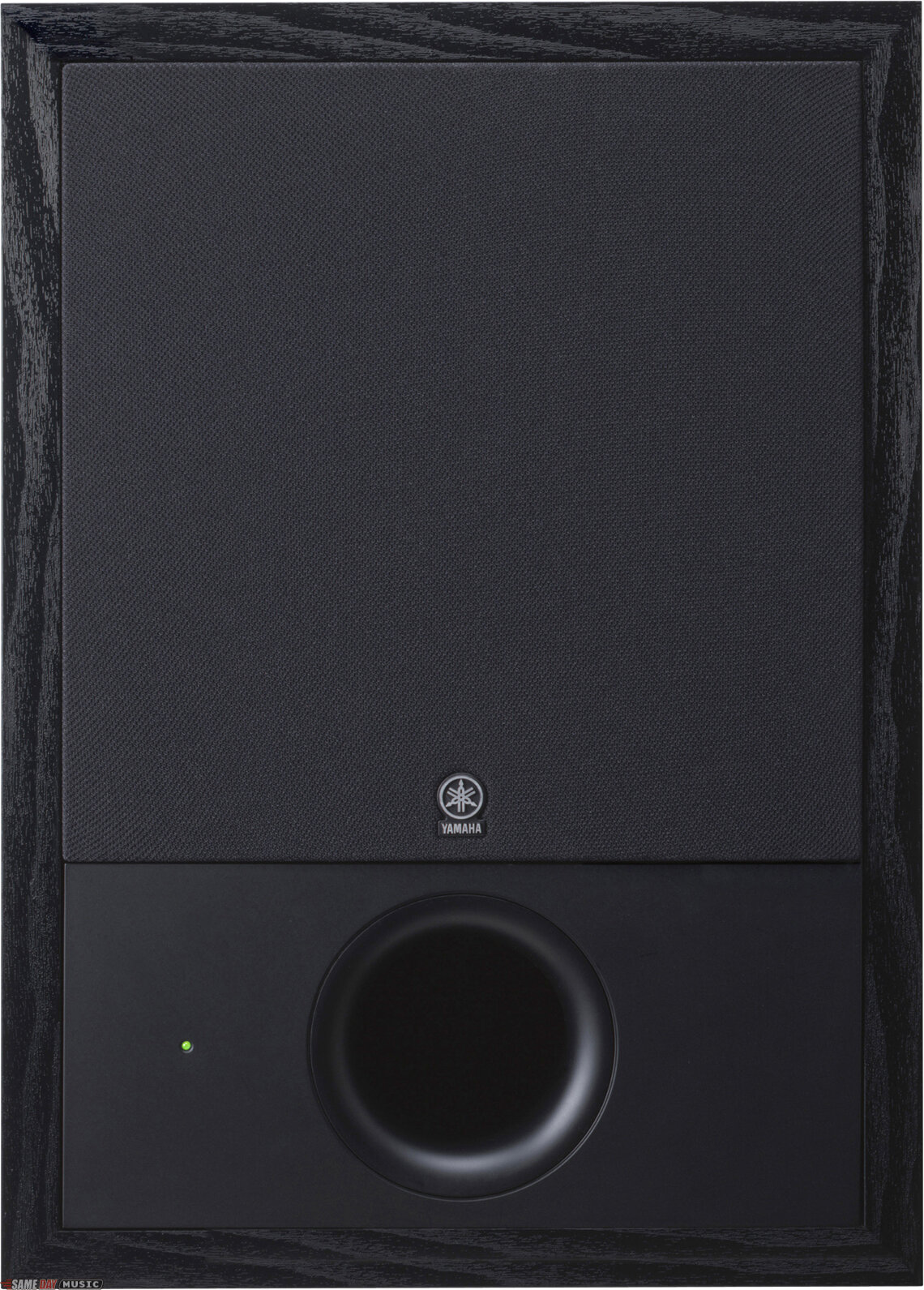

Main
Rear
Angle
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The SW10 Studio subwoofer has been designed specifically for optimum matching with the MSP series powered monitor speakers. Combined with MSP7 Studio or MSP5 Studio speakers in a stereo of surround system it can provide a seamlessly extended low end for accurate ultra wide range monitoring. A comprehensive selection of inputs and outputs as well as a phase switch and continuous high-cut and level controls make it easy to achieve optimum performance in any room and system. Whether you're simply mixing basic stereo programs or authoring DVD audio in full surround, MSP STUDIO Studio speakers plus an SW10 Studio will give you the ultimate monitoring experience.
Yamaha's "Studio" series monitors have been designed with serious monitoring in mind. Emphasis is on reference-quality reproduction precision that lets you hear sonic details, rather than flattering sound. They carry on in the tradition of the venerable NS10M STUDIO monitor Studio, which was the definitive near-field speaker monitor in an overwhelming majority of professional studios throughout the world for many years from the 80s onward. But technology has evolved dramatically right throughout the audio chain, and speakers must follow suit. The new top-of-the-line MSP7 Studio Powered Monitor Speaker is capable of delivering consistent quality and performance that you can rely on in modern production environments that handle any combination of digital and analog sources as well as stereo and surround formats.
Yamaha's "Studio" series monitors have been designed with serious monitoring in mind. Emphasis is on reference-quality reproduction precision that lets you hear sonic details, rather than flattering sound. They carry on in the tradition of the venerable NS10M STUDIO monitor Studio, which was the definitive near-field speaker monitor in an overwhelming majority of professional studios throughout the world for many years from the 80s onward. But technology has evolved dramatically right throughout the audio chain, and speakers must follow suit. The new top-of-the-line MSP7 Studio Powered Monitor Speaker is capable of delivering consistent quality and performance that you can rely on in modern production environments that handle any combination of digital and analog sources as well as stereo and surround formats.
TECHNICAL DESCRIPTION
General
Type; Powered Subwoofer
Crossover Frequency; N/A
Overall Frequency Response; 25Hz - 150Hz (-10dB)
Maximum Output Level; 111dB, 1 m on Axis
Dimensions (W x H x D); 328 x 459 x 476 mm
Weight; 26.5 kg
Magnetic Shielding; Yes (Non-covered type)
Speaker Section
Components;
LF: 10 in. cone
HF: N/A
Enclosure; Bass-Reflex
Amplifier Section
Output Power;
LF: 180W f = 100Hz, THD = 1%, RL = 8?
HF: N/A
S/N, IHF-A filter; > 100dB, LEVEL = Max
Input Sensitivity;
XLR-3-31: +4 dBu, LEVEL = Center -6 dBu, LEVEL = Max
PHONE: N/A
Input Connectors, Impedance; XLR-3-31 (balanced), 10 k ohms
Output Connectors; XLR-3-32 x 3 (balanced), parallel connection with Input
Controls;
LEVEL control: Center Click VR (Min = -? Attenuation)
LOW CUT switch: N/A
HIGH TRIM: N/A
LOW TRIM: N/A
POWER SWITCH: on/off
PHASE SWITCH: Normal/Reverse
LPF control: 40-120 Hz, 80 Hz at Center Click
Indicators; LED - Green: Power On / Red: Clipping
Power Consumption; 160W
* These specifications apply to rated power supplies of 100, 120, 230 and 240 V.
* Specifications and appearance subject to change without notice.
Type; Powered Subwoofer
Crossover Frequency; N/A
Overall Frequency Response; 25Hz - 150Hz (-10dB)
Maximum Output Level; 111dB, 1 m on Axis
Dimensions (W x H x D); 328 x 459 x 476 mm
Weight; 26.5 kg
Magnetic Shielding; Yes (Non-covered type)
Speaker Section
Components;
LF: 10 in. cone
HF: N/A
Enclosure; Bass-Reflex
Amplifier Section
Output Power;
LF: 180W f = 100Hz, THD = 1%, RL = 8?
HF: N/A
S/N, IHF-A filter; > 100dB, LEVEL = Max
Input Sensitivity;
XLR-3-31: +4 dBu, LEVEL = Center -6 dBu, LEVEL = Max
PHONE: N/A
Input Connectors, Impedance; XLR-3-31 (balanced), 10 k ohms
Output Connectors; XLR-3-32 x 3 (balanced), parallel connection with Input
Controls;
LEVEL control: Center Click VR (Min = -? Attenuation)
LOW CUT switch: N/A
HIGH TRIM: N/A
LOW TRIM: N/A
POWER SWITCH: on/off
PHASE SWITCH: Normal/Reverse
LPF control: 40-120 Hz, 80 Hz at Center Click
Indicators; LED - Green: Power On / Red: Clipping
Power Consumption; 160W
* These specifications apply to rated power supplies of 100, 120, 230 and 240 V.
* Specifications and appearance subject to change without notice.
CATALOG DESCRIPTION
10" driver, 120 watts
REVIEWS
