Zoom 506II Bass Multi-Effects Pedal
36 patch locations. Large rotary selector. Easy-to-read red LED display. Foot switches.
This product has been discontinued or is no longer sold by SameDayMusic.
We recommend this product instead:
Zoom B1 Bass Multi-Effects Pedal
$59
The amazing new Zoom B1 bass effects pedal features 24-bit/96kHz digital multi-effects and an incredible 40kHz frequency response. In addition to 13 amp/stompbox modeling sets, the B1 also includes a built-in drum machine, harmonized pitch shifter and an astounding 46 effect types. >More
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 8.3 out of 10 (26 ratings)
Read 3 Full Reviews >>
Main
Application Shot
MORE RESOURCES:
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The 506 MKII's molded chassis with its sleek, flowing lines and Champagne Gold finish offers a sleek, stylish appearance that is built to last. Extremely durable space-age plastic and a flat control surface take the worry out of carrying it in the same case with other pedals.
As part of its enhanced design, the 506 MKII features new bass distortion effects including Rich, Tube, Band Pass Enhancer, and High Pass Enhancer; new bass modulation effects including Cry, Step, Defret, Pitch, Echo, and a range of bass amp modeling effects. The 506 MKII includes a total of 33 bass effects in seven modules. Up to 9 effects can be used at the same time.

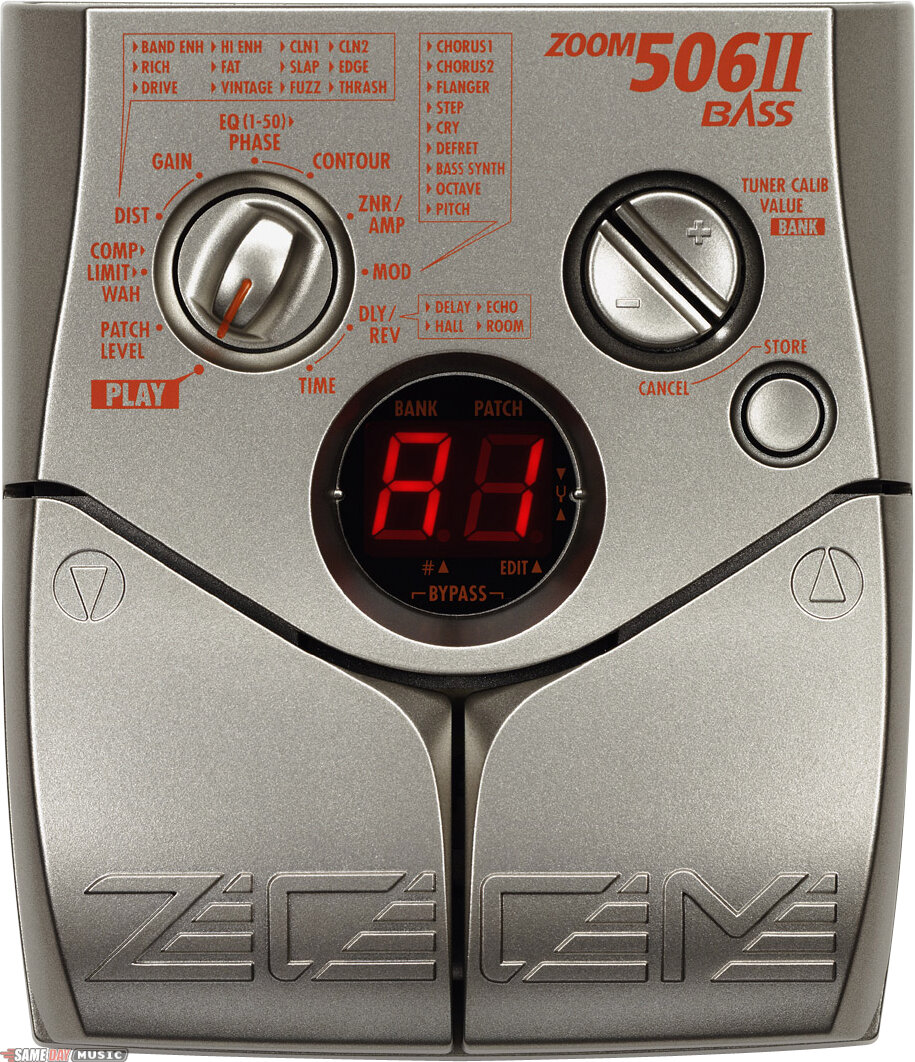

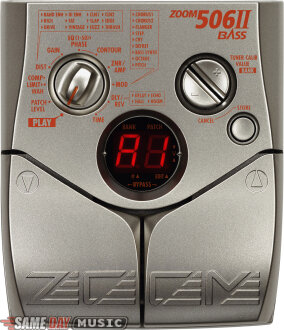

A large rotary selector, easy-to-read red LED display and foot switches make the 506 MKII truly user friendly. Sounds can be easily stored in up to 36 patch locations.
Other features include: ZNR (Zoom Noise Reduction); 28 hours of continuous operation with 4 AA alkaline batteries along with AC operation; a rear panel input for an available expression pedal; an integrated auto chromatic tuner; and more.
TECHNICAL DESCRIPTION
Effect Modules: max. 7 simultaneous (5 modules + 1 block)
Banks and patches: 6 banks x 6 patches = 36 patches (rewritable, with memory store capability)
A/D converter: 16-bit, 64x oversampling
D/A converter: 16-bit, 8x oversampling
Sampling Frequency: 31.25 kHz
Input: GUITAR input: standard mono phone jack (rated input level ?20 dBm/input impedance 470 kilohms)
Output: Standard stereo phonejack (doubles as line and headphone jack) (maximum output level +5 dBm/output load impedance 10 kilohms or more)
Control Input: For optional FP01 or FP02/FS01
Display: 2-digit, 7-segment LED
Power requirements: Seperately available AC adapter, 9V DC, 300 mA (center minus plug) (ZOOM AD-0006), Will also work with a 12V adapter, 4 IEC R6 (size AA) batteries. Battery life: appoximately 28 hours continuous operation (alkaline batteries)/approximately 8 hours continuous operation (manganese batteries)
Dimensions (H x W x D): 40 x 125 x 145 mm
Weight (without batteries): 280 g
