    Zoom RhythmTrak RT-223 Electronic Drum Machine

    511 rhythm patterns, 70 kits, 127 user-programmed kits, 39 sounds, 12 bass sound sources
    Product Rated 9.4 Out of 10 (41 ratings)
    *********.*
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 16HG-DP47

    Web Item #ZOMMRT223

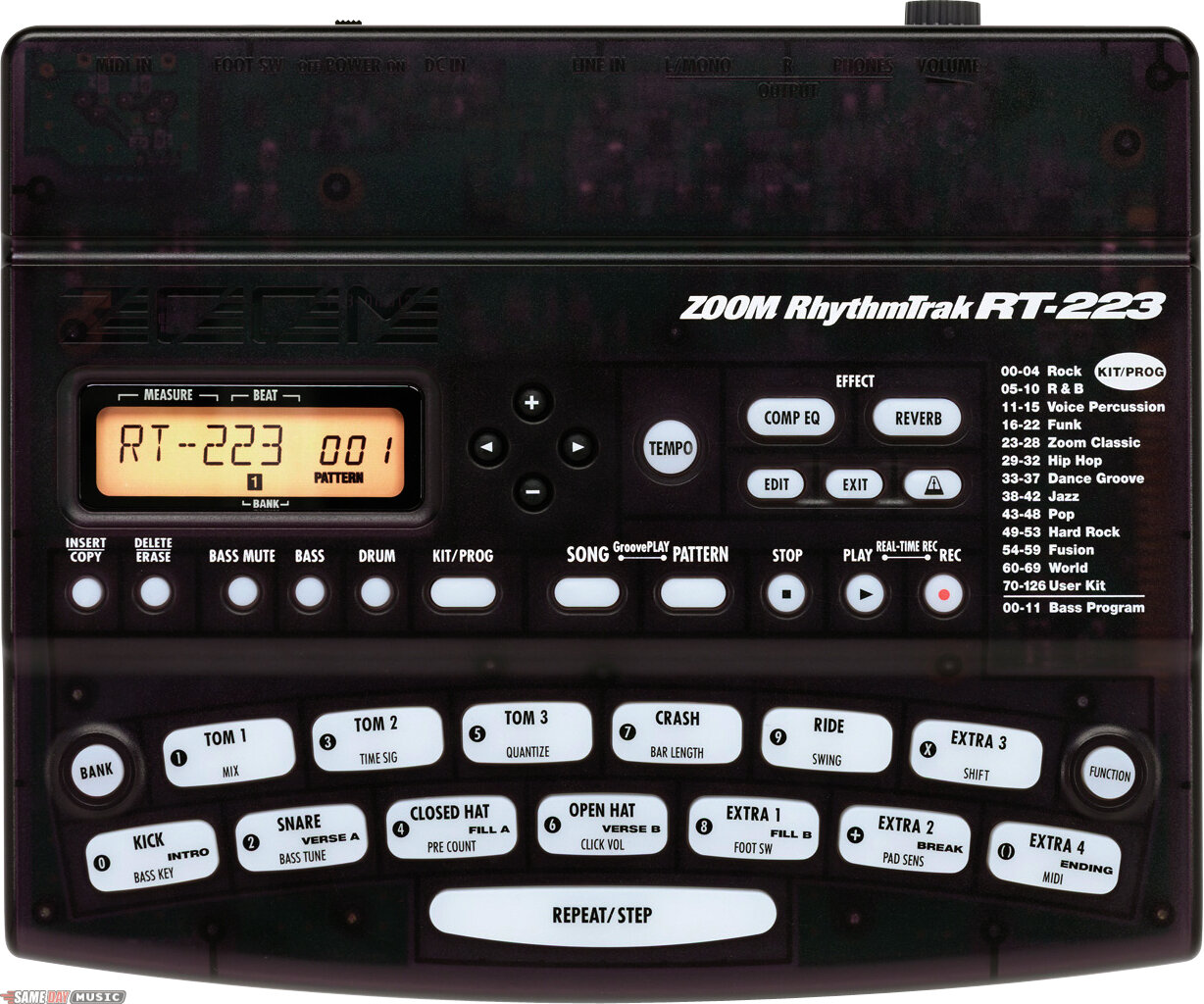

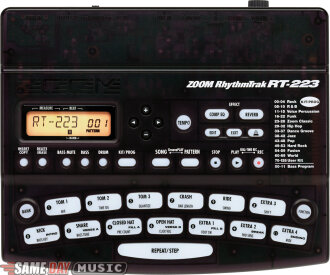

    Zoom RT223 Rhythm Trak Drum Machine
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: User Manual
    Zoom Warranty: If you have additional warranty questions, please call the manufacturer at 631-784-2200

    FIND SIMILAR PRODUCTS

      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Mon
    •
    • 2 Day: $4
    • Overnight: $18
    SpeedPlay: on orders of
    $249
    $149.99 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Zoom RT223 Rhythm Trak Drum Machine Product Description

    The RT-223 is a drum and bass machine for any musical style. Small in size and light in weight, this low-profile unit will go with you anywhere. You can get a session going with your very own rhythm section in a flash, even on your desktop.

    Seventy Drum Kits From Rock Drums to Voice Percussion

    The range of drum kits built into the RT-223 is simply amazing. A total of 70 drum kits are built-in, with acoustic drum sounds for rock, R&B, funk, and jazz. Add an analog rhythm machine great for Techno and Hip Hop. Ethnic percussion sounds are also available. There are also five Human Voice "Beat Box" Percussion kits that are currently all the rage in Hip Hop. Create advanced rhythm tracks where kick, snare, scratch and other instrument sounds are expressed as human voices.

    Custom User Drumkits

    A drum kit consists of 13 pads x 3 banks = 39 sounds. Sound sources can be freely selected and assigned to the pads. Fine-tune parameters such as pitch, level, and panning to create your own original drum kits. The RT-223 lets you store up to 127 user-programmed kits.

    Twelve Built-In Bass Sound Sources

    Choose from electric bass styles such as 'Pick', 'Finger', and 'Slap'. Or select 'Acoustic Bass', 'Synthesizer Bass', or one of the other bass sources, 12 in total. To create a bass line, you can play the pads with assigned chromatic pitches just like a keyboard. A dedicated switch quickly lets you mute the bass sound at any time.

    Tone and Ambience Control

    The overall EQ and tonal quality of a drum kit can be adjusted with the Comp EQ effect. The Reverb effects can be used simultaneously. These effects can also be applied to bass sounds. Up to 40 settings for each effect can be stored as patches.

    Comp EQ effect
    The RT-223 incorporates a multi-band compressor with independent settings for each frequency band. By applying the effect to just the right frequency range, you can tighten up the kick drum, give snares and tom-tom more body, or perform other mastering tricks to spruce up the sound of a drum kit. A resonance filter and Low-Fi effect great for dance music are also built-in.

    Reverb effect
    Four different kinds of reverb (hall, room, spring,plate) and chorus, flanger, and delay are included. The effect send level can be set for each sound source individually. For example, you could apply gate reverb to the snare sound only, or place the entire drum kit in a hall. Flanger and delay can be synchronized to the tempo in measure or beat units. Create a flanger with 4-measure modulation or a dotted eighth note Delay. Make your club music explode with novel sounds.

    Features:

    - 70 Preset Drum Kits
    - Up to 127 User-Programmable Custom Kits
    - 12 Bass Sound Sources
    - Individual EQ and Ambient Control
    - 400 Preset Drum Patterns
    - Dynamic and Responsive Touch-Sensitive Pads
    - 'FAST' Method For Fast Sequencing
    - Groove Play
    - Built-In Metronome
    - MIDI IN / Line Input Jack
    - Battery or AC Adapter Powered (AC Adapter Not Included)

    440 Preset Patterns

    From Rock, Jazz, and Funk to Club and House, the RT-223 comes with 440 playing patterns that can be used straight away. A large number of phrase variations including intro, fill-in, and ending patterns are also provided. By simply combining these, you can whip up a backing rhythm that delivers the goods.

    Touch-Sensitive Pads Let You Build Original Patterns

    Programming your own patterns is a snap, thanks to the touch-sensitive drum pads. The RT-223 records not only your timing, but also the dynamics of your finger work. You can create and store up to 511 patterns. The process is made even easier through visual cues provided by the self-lit pads.

    Quickly Create Original Songs with FAST Method

    You can combine any number of drum patterns in any order to create a song. In addition to step input where you select patterns one by one, the RT-223 also offers the innovative FAST (Formula Assisted Song Translator) method. With FAST, you use simple mathematical symbols such as (+, -) to specify the pattern lineup. This is especially useful for songs with repeated patterns. To play pattern number 12 eight times and then pattern 25 sixteen times, you simply enter "12 x 8 + 25 x 16". By enclosing this in brackets and adding a multiplication factor such as "( ) x 4", the entire sequence can be repeated. The RT-223 lets you store as many as 100 songs for automated backing.

    Groove Play Mode Lets You Play Patterns Like a DJ


    Assigning patterns to pads allows you to trigger patterns simply by tapping the pads. This is great for live performances and for DJ use.

    User-Friendly Design for Simple Operation

    The RT-223 is a dedicated rhythm machine designed to make rhythm programming truly easy. You can take the shortest possible route from idea to finished song. No need to boot up a PC and start DAW software, or laboriously read sound source data into a sampler. Most controls on the top panel of the RT-223 have only a single function, and there are no complicated multi-level menus. The backlit LCD shows all important information at a glance.

    Foot Switch Sequencing

    Intro, pattern 1, fill-in, pattern 2, ... ending. Imagine controlling such a sequence just with a foot switch. With a Zoom FS01 Foot Switch (sold separately) you can rock out live, triggering patterns with your foot. You can also use the switch to start or stop a pattern, perform tap input to specify the tempo, trigger the bass drum sounds, switch between hi-hat open/close, and much more.

    Built-In Metronome

    The built-in metronome with its dedicated key is handy for simple repeat practice. In addition to the standard 2 - 8 beat, you can also use 6/8 beat, 7/8 beat, 2+3 beat, 3+4 beat and other mixed beat settings.

    MIDI IN Connector and External Line Input

    The MIDI IN connector allows synchronized play with an external device. By receiving note messages, the RT-223 can serve as drum sound source module in a MIDI-based system. The line input accepts the signal from a CD player or other line-level source, or from a guitar or bass via an effect. Seamlessly integrate the RT-223 into any session.

    2-Way Power From Size AA Batteries or AC Adaptor

    The unit will operate continuously for eight hours on a set of four IEC R6 (size AA) batteries. Whether on stage or during rehearsals in the studio, the RT-223 is always ready. For extended studio work, an AC adaptor can also be used.

    Same Day Music is an authorized dealer of Zoom products.

    Zoom RT-223 Rhythm Trak Drum Machine Technical Description

    Drum Kits : 127 (Factory : 70, Blank : 57)

    Drum Sounds : 213

    Bass Programs : 12

    Rhythm Patterns : 511 (Factory : 440, Blank : 71)

    Songs : 100

    Maximum Notes : 32,000

    Polyphony : 18

    Resolution : 96PPQN

    Tempo : 40-250BPM

    Sampling Frequency : 44.1kHz

    D/A Conversion : 24-bit 8X over-sampling

    Drum Pads : 13(touch sensitive, self lighted )

    MIDI : IN

    Control Input : Foot Switch

    Display : 128 segment custom LCD ( with backlight )

    Line Input : 1/4" stereo phone jack (Input impedance: 10k ohms, Rated input level : 10dBm)

    Line Output (L/MONO, R) : 2 x 1/4" phone jack (Output Impedance : 1k ohms or less, Rated output level : 10dBm)

    Headphone Output : 1/8" stereo phone jack, 50mW into 32-ohm load

    Power Requirements : AA size(LR6) battery x 4 or AC adaptor DC9V/300mA / Center minus type

    Battery Life : Approx. 8 hours (with alkaline batteries)

    Dimensions (W x D x H): 217.9 x 182.6 x 35.5 mm

    Weight : 680g (without batteries)

    Optional Accessories : AD-0006 (AC adaptor), FS01 (Foot switch) , AA size battery

    Same Day Music is an authorized dealer of Zoom products.
    Shipping Weights and Dimensions
    Shipping Weight: 2 lbs
    Shipping Dimensions: 9 x 8 x 3 in

    Zoom RT223 Rhythm Trak Drum Machine Catalog Description

    Compact drum and bass machine for any style@213 drum sounds in 70 kits@12 bass sounds; 511 rhythm patterns@13 touch-sensitive, lighted drum pads@1/4" line and 1/8" headphone outs; MIDI input
