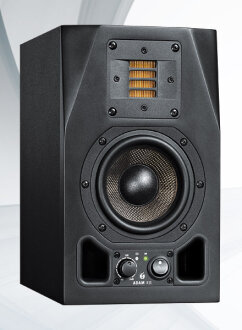

    Adam Audio A3X Active Studio Monitor
    View Larger Image

    More Resources

    Manuals and Documents: Manual Specifications Sheet
    Adam Audio Warranty: Adam Warranty 5-year warranty If you have additional warranty questions, please call the manufacturer at
    In Stock | Will Ship Wed
    • 2 Day: $10
    • Overnight: $42
    Order Now | Limited Qty
    • 2 Day: $14
    • Overnight: $44
    In Stock | Will Ship Wed
    • 2 Day: $18
    • Overnight: $58
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

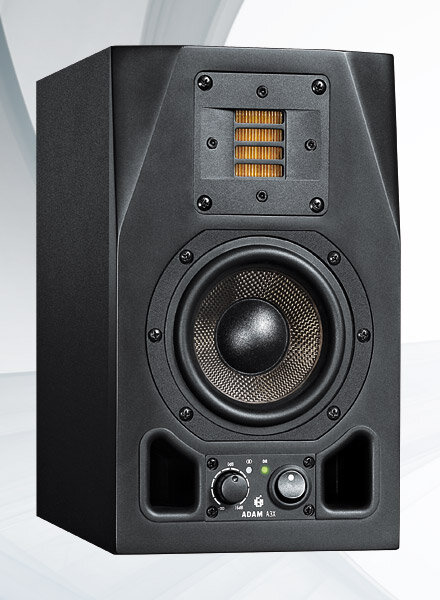

    Adam A3X Powered Studio Monitor Product Description

    With the A3X, ADAM Audio present their smallest monitor to date, making it perfectly suited for all environments where space is limited but sound shouldn't be constricted. The A3X combines a tiny footprint with the much acclaimed ADAM sound quality by using the X-ART tweeter for the higher frequencies, a guarantee for crystal clear music reproduction.

    A 4.5" (basket) driver handles the lower registers. The diaphragm is made from carbon fiber, a material that is very light but very stiff and therefore capable of delivering colouring-free sound. Two built-in 25 Watt amplifiers powers each of the drivers directly.


    A very handy and exclusive technology found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker.

    This technology connects two A3X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speaker's gain control. This makes the A3X a natural for "mixer-less" desktop applications where overall system volume needs to be adjusted easily.

    Controls and Connectors

    The front of the A3X sports dual ports for surprisingly low frequency response down to 60Hz. The front panel also has power and gain controls. The rear panel includes a tweeter gain control as well as balanced (XLR) jacks and unbalanced (RCA) jacks, allowing for greater connection flexibility.

    Same Day Music is an authorized dealer of Adam Audio products.

    Adam A3X Technical Description

    - Number: 1
    - Basket O: 4.5" (120 mm)
    - Voice coil O: 1" (25 mm)
    - Cone material: Carbon Fiber

    - Number: 1
    - Type: X-ART
    - Diaphragm area: 4 inch (2420 mm)
    - Equiv. Diaphragm O: 2" (56 mm)
    - Velocity transform ratio: 4:1
    - Diaphragm weight: 0.17 g

    Built-in Amplifiers:
    - Mid-Woofer: 1
    - Type: A/B
    - Amp. power RMS / music: 25 W / 40 W
    - Tweeter: 1
    - Type: A/B
    - Amp. power RMS / music: 25 W / 40 W

    Control panel:
    - Input Sensitivity: -()() to +14 dB
    - Tweeter gain: +/-4 dB

    Input connectors:
    - Analog: XLR / RCA

    General data:
    - Frequency response: 60 Hz - 50 kHz
    - THD 90dB/1m > 100 Hz: <=0.8 %
    - Long term output: >=98 dB
    - Max. peak: >=106 dB
    - Crossover frequencies: 2800 Hz
    - Input impedance: 10 K Ohm
    - Weight: 10.1 lb (4,6 kg)
    - Magnetically shielded: No
    - Height x Width x Depth: 10" (252 mm) x 6" (150 mm) x 7.5" (185 mm)
    - Warranty: 5 Years

    Same Day Music is an authorized dealer of Adam Audio products.
    Shipping Weights and Dimensions
    Single Speaker
    Shipping Weight: 15 lbs
    Shipping Dimensions: 16 x 12 x 11 in
