    Adam Audio A8X Powered Studio Monitor

    Get power and performance out of the Adam Audio A8X monitor. Its large 8.5" midwoofer and wide frequency response to give you truer, fuller sound.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 20G-XCQC

    Web Item #ADPA8X

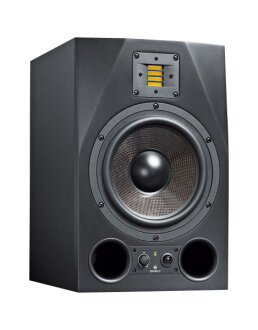

    Adam A8X Active Studio Monitor
    View Larger Image

    More Resources

    Manuals and Documents: Data Sheet Manual
    Adam Audio Warranty: Adam Warranty 5-year warranty If you have additional warranty questions, please call the manufacturer at
    In Stock | Will Ship Today
    • 2 Day: $22
    • Overnight: $68
    Order Now | Limited Qty
    • 2 Day: $20
    • Overnight: $64
    Order Now | Limited Qty
    • 2 Day: $20
    • Overnight: $64
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Adam A8X Powered Studio Monitor Product Description

    With its power and radiation characteristics, the brand A8X is suitable for both nearfield and midfield monitoring. With a price/performance ratio that could hardly be better, this monitor is a perfect entry into these monitoring fields.

    The A8X is equipped with the X-ART tweeter and a large (8.5") midwoofer, a combination that adds both a very deep and yet very tight bass response to the unsurpassed reproduction qualities of the ADAM proprietary tweeter: a licence to thrill.

    Cabinet- and Bass Reflex-Construction

    Like the other AX-Series models, the upper corners of the A8X are slanted to minimize reflections. The very large, double bass reflex tubes on the front have been specifically designed to perfectly match the midwoofer with its large voice coil.

    Amplification and Controls

    With a 50W A/B amplifier for the tweeter and a 150W PWM amplifier for the midwoofer, the A8X has power in abundance and is the brawny monitor of the AX-Series.

    On the rear panel are several controls: a gain for the high frequencies (+/- 4dB) and two shelf filters for the high and low frequencies. There are both XLR (balanced) and RCA (unbalanced) connectors on the rear panel of the speaker, which allow the A8X to be used in almost any application.

    Same Day Music is an authorized dealer of Adam Audio products.

    Adam A8X Technical Description

    - Number: 1
    - Basket O: 8.5" (220 mm)
    - Voice coil O: 1.5" (38 mm)
    - Cone material: Carbon/Rohacell/Glass Fiber

    - Number: 1
    - Type: X-ART
    - Diaphragm area: 4 inch (2420 mm)
    - Equiv. Diaphragm O: 2" (56 mm)
    - Velocity transform ratio: 4:1
    - Diaphragm weight: 0.17 g

    Built-in Amplifiers
    - Mid-Woofer: 1
    - Type: PWM
    - Amp. power RMS / music: 150 W / 225 W
    - Tweeter: 1
    - Type: A/B
    - Amp. power RMS / music: 50 W / 75 W

    Control panel
    - Input Sensitivity: -()() to +14 dB
    - High shelve > 5 kHz: +/-6 dB
    - Low shelve < 300 Hz: +/-6 dB
    - Tweeter gain: +/-4 dB

    Input connectors
    - Analog: XLR / RCA

    General data
    - Frequency response: 38 Hz - 50 kHz
    - THD 90dB/1m > 100 Hz: <=0.5 %
    - Long term output: >=112 dB
    - Max. peak: >=120 dB
    - Crossover frequencies: 2300 Hz
    - Input impedance: 30 KOhm
    - Weight: 28.7 lb (13 kg)
    - Magnetically shielded: No
    - Height x Width x Depth: 15.5" (400 mm) x 10" (255 mm) x 12.5" (320 mm)
    - Warranty: 5 Years

    Same Day Music is an authorized dealer of Adam Audio products.
    Shipping Weights and Dimensions
    Single Speaker
    Shipping Weight: 37 lbs
    Shipping Dimensions: 22 x 18 x 16 in
