    Audio-Technica U891RCX Boundary Condenser Mic

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

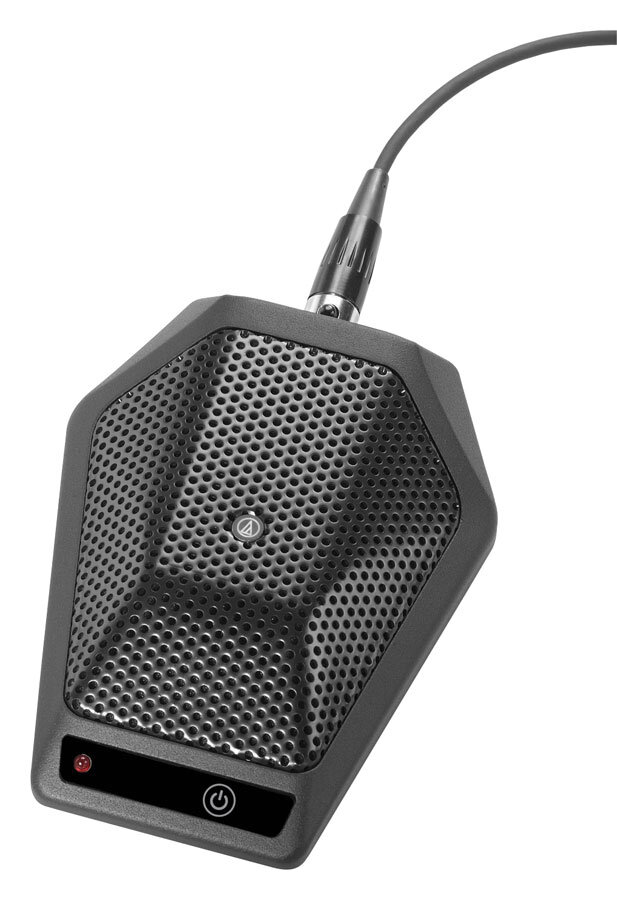

    Audio-Technica U891RCX Condenser Boundary Microphone Product Description

    A wide range condenser microphone with a cardioid polar pattern, the Audio-Technica U891RCX is equipped with local or remote switching options. For flexible control in conference and boardroom installations, the unit's external contact closure ability allows a user to trigger an external device, a camera, for instance, from a switch on the microphone. Another ease-of-use feature: the microphone's activation switch can be set to three operating modes: touch-on/touch-off, press to talk, and press to mute.

    The Audio-Technica U891RCX is also equipped an 80 Hz low-cut UniSteep filter to reduce pickup of low-frequency ambient noise. Its red LED status indicator can be controlled remotely. UniGuard innovations offer unsurpassed immunity from radio frequency interference; interchangeable elements are available in cardioid, hypercardioid and omnidirectional polar patterns; a unique rotating PivotPoint connector changes the cable exit point, no tools required. It requires 11 to 52V DC phantom power, which operates the microphone and switch circuitry.


    - Designed for surface-mount applications such as high-quality sound reinforcement, conferencing, distance learning and other demanding sound pickup situations
    - An activation switch can be set to any of three operating modes: touch-on/touch-off, touch-to-talk and touch-to-mute
    - External contact closure capability permits control of remote devices from microphone switch
    - External LED control allows for accurate depiction of the live status of the microphone
    - PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
    - Small-diameter UniPoint capsule near boundary eliminates phase distortion and delivers clear, high-output performance
    - UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
    - Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
    - Low-profile design with low-reflectance black finish for minimum visibility
    - Improved switch design

    Same Day Music is an authorized dealer of Audio-Technica products.

    Audio-Technica U891RCX Condenser Boundary Microphone Technical Description

    - Element: Fixed-charge back plate, permanently polarized condenser
    - Polar Pattern: Half-cardioid (cardioid in hemisphere above mounting surface)
    - Freq Response: 30-20,000 Hz
    - Low Freq Roll-Off: 80 Hz, 18 dB/octave
    - Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
    - Impedance: 200 ohms
    - Max Input Sound Level: 130 dB SPL, 1 kHz at 1% T.H.D.
    - Dynamic Range: 104 dB, 1 kHz at Max SPL
    - Signal to Noise Ratio: 68 dB, 1 kHz at 1 Pa
    - Phantom Power Requirements: 11-52V DC, 4 mA typical
    - Weight: 266 g (9.4 oz)
    - Dimensions(LxWxH): 4.25 x 3.31 x 0.91 inches
    - Output Connector: TB5M-type
    - Cable: 25.0 feet long, 5-conductor shielded cable (2 conductors under shield; 3 control wires outside shield); TA5F-type connector at microphone end, output end stripped and tinned for connection to electronic device
    - Included Accessories: Soft protective pouch
