    Behringer Ultra-DI DI800 8-Channel Direct Injunction Box

    The Behringer DI800 Ultra-DI Pro 8-channel box gives you a rack mountable unit with enough inputs for everyone.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 203-40HB

    Web Item #BEHDI800

    Behringer DI800 Ultra-DI Pro 8-Channel

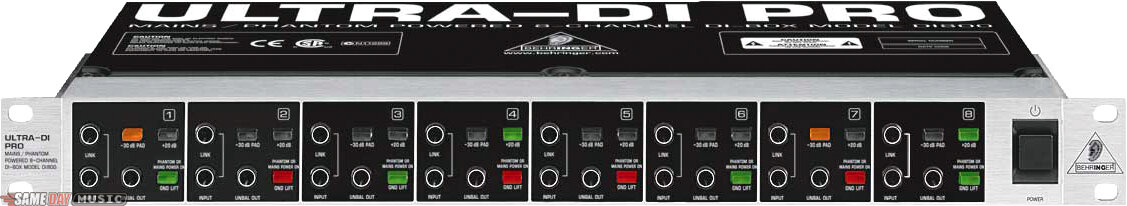

    View Larger Image

    More Resources

    Manuals and Documents: Owner's Manual Spec Sheet
    Behringer Warranty: If you have additional warranty questions, please call the manufacturer at 702-800-8290
    In Stock | Will Ship Tue
    • 2 Day: $10
    • Overnight: $34
    This product ships to: Can ship to United States Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Behringer DI800 Ultra-DI Pro 8-Channel Direct Box Product Description

    The Ultra-DI Pro DI800 is a professional mains/phantom powered 8-channel active DI-box. If you need a rack-mountable DI unit with enough inputs to accommodate everyone on stage or in the studio, plug into the DI800.


    Direct Injection (DI) boxes make it possible to connect guitars, basses and keyboards (as well as other line-level devices) to audio mixers and recorders. They are absolutely essential for proper impedance matching and to maintain signal integrity. Behringer active DIs feature 'buffered' inputs that won't degrade the source signal like passive DI boxes can. Balanced signals leaving the DI800 are extremely low impedance (typically less than 680), and far less susceptible to noise and interference.

    1/4" In, XLR Out -- Is That All?

    When it comes right down to it, all DI boxes do the same thing, right? Yes, but the DI800 does much more than just bass guitar in, mic level signal out. It really is a highly versatile input-signal toolkit.

    Here are just two special features that differentiate the Behringer DI800 Ultra-DI Pro from most standard DI boxes:

    - Maybe you'd like to connect your guitar amp's speaker output to your mixer? Not a problem, the DI800 features a -30 dB attenuation switch, allowing you to connect to speaker outputs (up to 3,000 Watts) and convert them to balanced XLR outs.
    - Got a weak incoming signal? The DI800 has a +20 dB switch, which really comes in handy for boosting low-level input signals.
    Of course, the DI800 provides a LINK output for easy connection to other equipment, such as onstage amplifiers and monitor consoles. Servo-balanced performance guarantees ultra-flat frequency response, and the gold-plated XLR output connectors provide reliable, low-noise operation. Per channel ground lift switches eliminate ground-loop hum problems. The DI800 does everything a standalone DI can do -- times eight!

    Power Trip

    Unlike their passive counterparts, active DI boxes require a power source to make their internal electronics work. The DI800 provides two power options: 120 - 240 V~ from the nearest wall outlet or power strip, or +18 to +48 V DC from your mixer's phantom power supply.

    Superior Sound, Incredible Value

    The 8-channel Behringer ULTRA-DI PRO DI800 delivers exceptional sound quality -- at an extremely affordable price.

    Same Day Music is an authorized dealer of Behringer products.

    Behringer DI800 Technical Description

    Audio inputs
    -Connections: 1/4" TS connector,
    - Type: DC-decoupled
    - Input: impedance 1 M ohms
    - Max input level: +18 dBu/+48 dBu
    (-30 dBu pad depressed)

    Audio outputs:
    - Connections: XLR, balanced 1/4" TS connector, unbalanced
    - Type: electrically balanced output stage
    - Impedance: 680 W, balanced
    - Max output level: +23 dBu, balanced, +16 dBu, unbalanced

    System specifications:
    - Frequency range 20 Hz to 120 kHz (+/- 3 dB)
    - Signal-to-noise ratio (SNR) -104 dBu

    Power supply:
    - Voltage: USA/Canada 120 V~ 60 Hz, Europe/UK/Australia 230 V~ 50 Hz, Japan 100 V~ 50 - 60 Hz, General export model 120/230 V~ 50 - 60 Hz
    - Power consumption: 10 W
    - Fuse 100 - 120 V~: T 200 mA H 250 V, 200 - 240 V~: T 125 mA H 250 V
    - Mains connection: Standard IEC connector

    Same Day Music is an authorized dealer of Behringer products.
    Shipping Weights and Dimensions
    Shipping Weight: 7 lbs
    Shipping Dimensions: 21 x 12 x 5 in
