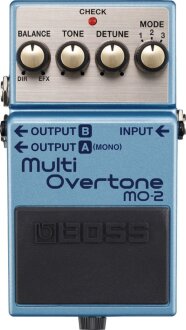

    Boss MO-2 Multi-Overtone Pedal

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Boss MO-2 Multi-Overtone Pedal Product Description

    Powered by Multi-Dimensional Processing technology (MDP), the MO-2 Multi-Overtone uses your guitar's harmonic characteristics to create a wide range of extraordinary sounds.

    Multi-Dimensional Processing for Superior Tone

    Roland's innovative Multi-Dimensional Processing (MDP) analyzes audio signals in many dimensions and applies ideal effects to each. By giving different dynamic changes relative to the input signal in real time, MDP can create bold sounds with a previously unattainable range of expression.

    MO-2: An Expressive Voice

    The MO-2 produces incredibly distinctive and expressive tones only possible with the magic of MDP. Using your guitar's rich harmonic characteristics as a starting point, the MO-2 builds voices that enhance and thicken your normal sound. Three different modes offer diverse tone-shaping options, while the DETUNE knob unlocks a wide range of impressive modulation effects. From shimmery multi-string resonance to flute-like transparency to powerful textures reminiscent of organs and synths, the MO-2 brings you an array of unique sonic tools that adds dynamic resonance characteristics to your guitar.


    - Next-generation BOSS compact pedal with innovative Multi-Dimensional Processing, realized with proprietary technology and custom DSP
    - Impressive, harmonically rich sounds that complement and enhance your straight guitar sound
    - Works well with both clean and distorted guitar tones, and also bass guitar
    - Ultra-responsive to volume changes and playing dynamics
    - Three different sound modes; wide range of tonal adjustment with simple controls
    - Mono or stereo output

    Same Day Music is an authorized dealer of Boss products.

    Boss MO-2 Multi-Overtone Pedal Technical Description

    -Nominal Input Level
    20 dBu
    -Input Impedance
    1 M ohm
    -Nominal Output Level
    20 dBu
    -Output Impedance
    1 k ohm
    -Recommended Load Impedance
    10 k ohms or greater
    Pedal switch
    BALANCE knob
    TONE knob
    DETUNE knob
    MODE knob
    CHECK indicator (Serves also as battery check indicator)
    INPUT jack
    OUTPUT-A (MONO) jack
    OUTPUT-B jack
    AC adaptor jack (DC 9 V)
    -Power Supply
    Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
    AC adaptor (sold separately)
    -Current Draw
    40 mA
    * Expected battery life under continuous use
    Alkaline: Approx. 10 hours
    Carbon: Approx. 3 hours
    -These figures will vary depending on the actual conditions of use.
    -Owner's Manual
    Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
    -Alkaline battery (9V, 6LR61)
    -Option (sold separately)
    -AC adaptor (PSA series)
    -Size and Weight (including battery )
    73 mm
    2-7/8 inches
    129 mm
    5-1/8 inches
    59 mm
    2-6/16 inches
    430 g
    0 lbs. 16 oz.
    * 0 dBu = 0.775 Vrms
