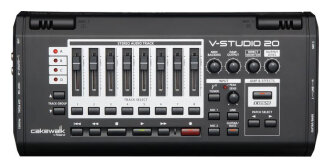

    Cakewalk V-Studio 20 with COSM FX USB Audio Interface

    The Cakewalk V-Studio 20 hardware combines a stereo audio interface, control surface, and built-in stereo mics providing amazing guitar tones with a Hi-Z input and on-board BOSS-powered, COSM guitar/amp effects.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 10 Out of 10 (1 rating)

    Cakewalk V-Studio 20 USB Audio Interface Product Description

    Cakewalk integrates BOSS guitar effects with Roland's breakthrough COSM modeling into their powerful V-Studio 20 with Guitar Tracks software for an incredible and simple recording experience. The V-Studio 20 matches the simplicity of a portable, hardware recording system with the power, flexibility, and control of modern computer-based recording so whether you're at home or on the road, you can easily connect a guitar or mic to the VS20 hardware and dial up genuine BOSS sounds.

    Once you're ready, record directly to your computer for further editing and mixing using Cakewalk Guitar Tracks recording software. Don't settle for imitations Roland, Cakewalk and BOSS are names you can trust to deliver the best recording solutions for today's musicians.


    - Compact, portable, and USB bus-powered; Perfect for mobile recording
    - Control your mix and playback with real faders, knobs, and buttons
    - Incredible tones from zero-latency, hardware COSM DSP effects with software control
    - Easy to understand, the hardware matches software with tight integration
    - Includes connections for monitors, headphones, pedals, and footswitches

    Guitar Track Software:

    - Record and playback up to 32 tracks of audio
    - Easily arrange, edit, and mix your song
    - Includes a suite of 11 stunning effects
    - Features the Roland TTS-1 synthesizer
    - Jam to 1 GB of loops, songs, and backing tracks
    - Tight integration with hardware for flawless recording

    The V Studio 20 hardware combines a stereo audio interface, control surface, and built-in stereo mics providing amazing guitar tones with a Hi-Z input and on-board BOSS-powered, COSM DSP effects for amp simulation and 4 virtual pedal modules including Compression, Overdrive/Distortion, Chorus/Mod, Delay with 36 genuine BOSS effects and 50 presets. Record vocals with a phantom powered XLR input and get a great sound with built-in latency free COSM DSP for harmony, real-time pitch correction, reverb and compression.

    The Hardware and software share a similar user-interface and feature controls that make it easy for anyone to record their music. The Compact design and USB-bus power make the V-Studio 20 perfect for mobile recording with a laptop or Netbook.

    Recording in 5 Easy Steps

    1. Connect a guitar or mic to the VS20 hardware
    2. Dial up the perfect guitar or vocal tone using genuine BOSS effects
    3. Choose your backing tracks, hit record, and then play your parts
    4. Use the VS20 as a control surface for mixing and playback
    5. Master your song and then burn a CD or make an MP3

    Same Day Music is an authorized dealer of Cakewalk products.

    Cakewalk V-Studio 20 Technical Description

    Number of Input Channels: 2

    Digital Signal Processing: Maximum 24-bit (depending on software)
    Sampling Frequency: 44.1 kHz

    Frequency Response: 20 Hz to 20 kHz (+0/-3 dB)

    Residual Noise Level (IHF-A, typ.): 90 dBu or less
    - (INPUT: GUITAR/BASS, 47 k ohm terminated, INPUT SENS knob = center, DIRECT MONITOR knob = center, OUTPUT LEVEL knob = center)

    Nominal Input Level:
    - GUITAR/BASS: -10 dBu
    - MIC 2: -40 dBu
    - LINE: -10 dBu

    Input Impedance:
    - GUITAR/BASS: 1 M ohm
    - MIC 2: 4 k ohms
    - LINE: 10 k ohms

    Nominal Output Level: OUTPUT: -10 dBu

    Output Impedance:
    - OUTPUT: 2 k ohms
    - PHONES: 44 ohms

    Recommended Load Impedance:
    - OUTPUT: 20 k ohms or greater
    - PHONES: 32-100 ohms

    - GUITAR/BASS: 1/4 inch phone type
    - MIC 2: XLR (balanced/phantom power +48 V)
    - LINE: 1/4 inch phone, OUTPUT: RCA pin
    - PHONES: Stereo 1/4 inch phone
    - REC, PLAY (FOOT SW): TRS 1/4 inch phone
    - EXP PEDAL: TRS 1/4 inch phone
    - USB: B

    Current Draw: 320 mA

    Phantom Power: +48 V/10 mA

    Dimensions (WxDxH): 11-13/16 x 5-11/16 x 2-1/8 inches (299 x 144 x 53 mm)

    Weight: 760 g, 1 lb 11 oz (VS-20 hardware)

    Cakewalk V Studio 20 and Guitar Track Software System Requirements

    Desktop Requirements
    USB Port

    Windows XP (32-bit)/Windows Vista(32-bit)/Windows 7 (32-bit)*

    Intel, Pentium 4 1.3 GHz or AMD Athlon XP 1500 or higher

    512 MB RAM (1 GB recommended)

    1024 x 768, 16-bit color screen resolution

    DVD-ROM drive for installation

    Netbook Requirements
    USB Port

    Windows 32-bit OS: XP /Vista /Windows 7 Home Premium (32-bit)*

    Intel, Atom or AMD Athlon Neo Processor

    1 GB RAM

    100 MB for core program (6 GB recommended)

    1024 x 600, 16-bit color screen resolution

    DVD-ROM drive for installation, (available via download for Netbook users)

    * Guitar Tracks 4 does not support Windows 95, 98, ME, 2000, NT, or XP x64 Pro.
    ** Mac compatibility coming Q2 2010. Stay tuned for more details

    Same Day Music is an authorized dealer of Cakewalk products.

    User Reviews for Cakewalk V-Studio 20 USB Audio Interface

    • "It is Amazing the Quality of this unit and how Quickly one can be up and recording with it and how user friendly it is!!! Great" - Read More
