    Celestion FTR18-84080FD Replacement Speaker, 8 Ohm, 1000 W

    Flexirol technology for greater excursion control. Low frequency response, down to 30Hz. Specially treated weather-resistant cone.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

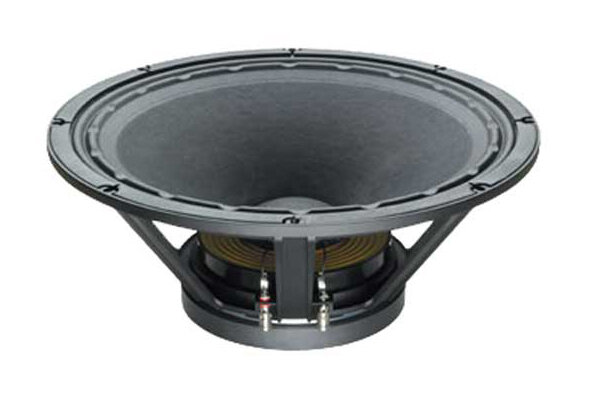

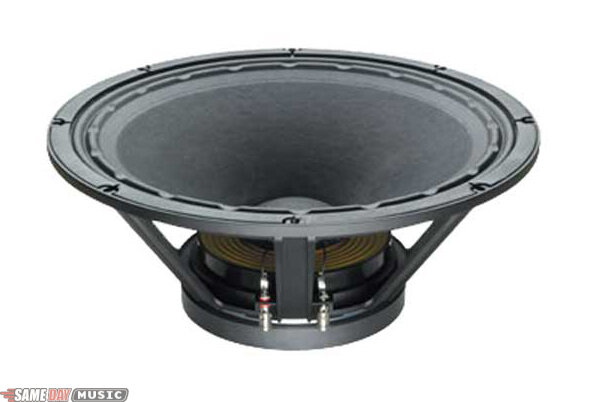

    Celestion FTR184080FD FTR Aluminum Ferrite Speaker (1000 Watts, 18") Product Description

    Celestion FTR Series drivers feature advanced, high-temperature voice coils and smart chassis design for maximum heat dissipation with reduced reflections back on the cone. Similarly innovative magnet topology floods the gap around the pole piece, limiting the interference from transient flux. The result is a cost-effective range of high-value 12, 15 and 18 inch cast- frame low frequency drivers that set the standards for high power handling with minimal thermal compression, and low acoustic and harmonic distortion.


    - 1000 Watts RMS continuous power handling (AES Standard)
    - Flexirol technology for greater excursion control
    - Double suspension for exceptional linearity at the highest excursions
    - Saturated gap technology for lower harmonic distortion
    - Extremely low frequency response, down to 30Hz
    - Smart chassis design minimizes acoustic distortion

    Same Day Music is an authorized dealer of Celestion products.

    Celestion FTR1884080FD Technical Description

    General specifications
    - Nominal diameter (mm/in): 457/18
    - Power Rating (AES, W rms): 1000
    - Nominal impedance (Ohm): 8
    - Voice coil diameter (mm/in): 100/4
    - Magnet type: Ferrite
    - Magnet weight (kg/oz): 3.1/110
    - Chassis type: Cast aluminum
    - Sensitivity (dB): 97
    - Frequency range (Hz): 30-2500
    - Coil material: Round copper
    - Former material: Glass fibre
    - Cone material: Glass loaded paper with weather resistant impregnation
    - Surround material: Cloth-sealed
    - Suspension: Single
    - Xmax (mm/in): 6.0/0.24
    - Gap depth (mm/in): 10.0/0.39
    - Voice coil winding width (mm/in): 22.0/0.87

    Small Signal Parameters
    - D (m/in): 0.38/14.96
    - Fs (Hz): 32.7
    - Mmt (g/oz): 172.42/6.08
    - Mmd (g/oz): 150.81/5.32
    - Mair - Qms: 4.33, Qes: 0.29, Qts: 0.27
    - Re (Ohm): 5.39
    - Vas (lt/ft3): 395.56/13.96
    - BI (Tm): 22.88
    - Cms (mm/N): 0.22
    - Rms (kg/s): 6.506
    - Le (mH): 1.41

    Mounting Information
    - Overall diameter (mm/in): 462/18.19
    - Overall depth (mm/in): 205/8.07
    - Cut-out diameter (mm/in): 416/16.38
    - Mounting slot dimensions (mm/in): 7 x 10/0.28 x 0.39
    - Number of mounting slots: 8
    - Mounting slot PCD range (mm/in): 429-440/16.89-17.32
    - Unit weight (kg/lb): 9.8/21.6

    Packed Dimensions and Weight
    - Single pack size W x D x H (mm/in): 500 x 500 x 240/19.7 x 19.7 x 9.4
    - Single pack weight (kg/lb): 11.6/25.6

    Same Day Music is an authorized dealer of Celestion products.
    Shipping Weights and Dimensions
    Shipping Weight: 27 lbs
    Shipping Dimensions: 20 x 20 x 10 in
