    Chauvet COLORdash Batten Light

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Chauvet COLORdash Batten Light Product Description

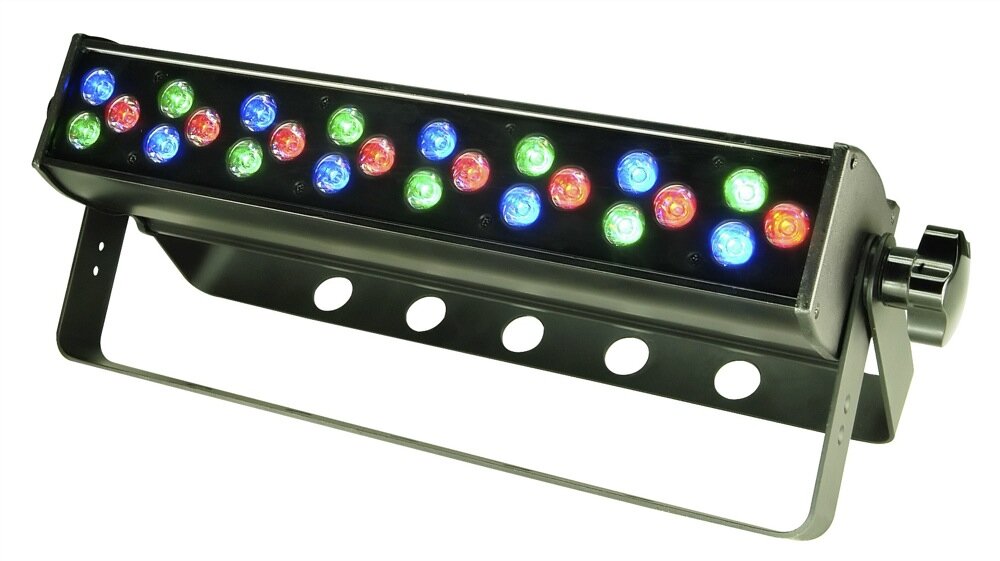

    The Chauvet COLORdash Batten is a compact linear LED wash, ideal where space is limited. Controlled via 3, 4, 10 or 12 channels of DMX and fitted with 24 high-power LEDs, it makes for a perfect wall wash or accent light. Brackets are included to attache units in a linear array or stack them for different effects. As in most COLORdash units, there is an additional (M 10) threaded hole on the rear for mounting.


    - DMX channels: 3, 4, 10, or 12-channel
    - Operating modes
    - 3-channel: RGB control
    - 4-channel: RGB, dimmer
    - 10-channel: RGB, ID address, dimmer, macro, strobe, auto/custom, auto speed, module select
    - 12-channel: RGB of 4 separate sections
    - Colors LED: RGB
    - Dimmer: Electronic
    - Built-in automated programs via master/slave, DMX or COLOR-CON
    - Program and recall custom programs via master/slave, DMX or COLOR-CON
    - Adjustable fan speeds
    - Additional threaded hole on rear for mounting (size M 10)
    - Attach multiple units together with the included bracket
    - Includes 6.6 ft (2 m) power extension cable
    - LCD display with password protection
    - Transfer custom programs between fixtures
    - Double-bracket yoke doubles as floor stand
    - Color Calibration

    Same Day Music is an authorized dealer of Chauvet DJ products.

    Chauvet COLORdash Batten Light Technical Description

    - DMX connectors: 3-pin
    - Light source: 24 1 w (8 red, 350 mA; 8 green, 350 mA; 8 blue, 350 mA) LEDs - 50,000 hrs
    - Beam angle: 29.5 degrees
    - Field angle: 55.4 degrees
    - Illuminance: 86.5 lux at 5 m
    - Power linking: 13 units at 120 V / 23 units at 230 V
    - Input voltage: auto-ranging 100-240 VAC 50/60 Hz
    - Power and current: 44.7 W, 0.7 A at 120 V 60 Hz
    - Power and current: 42 W, 0.4 A at 230 V 50 Hz
    - Weight: 7.9 lbs (3.6 kg)
    - Dimensions: 3.1 x 17.5 x 7.4 in (80 x 444 x 188 mm)

    Same Day Music is an authorized dealer of Chauvet DJ products.
