    DigiTech X-Series Bass Squeeze Dual Compressor Pedal

    Dual Outputs

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

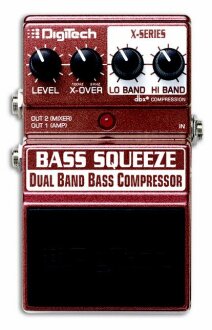

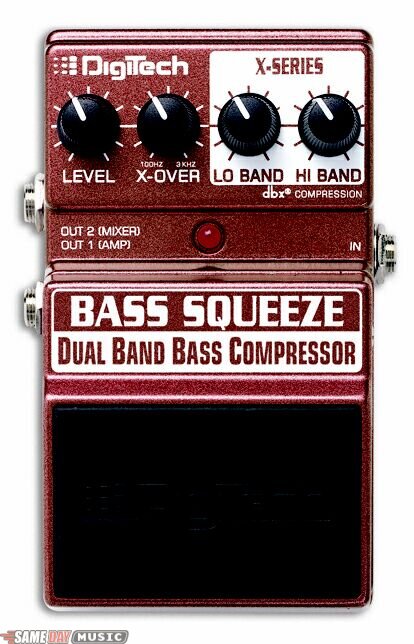

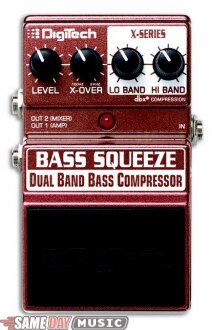

    DigiTech Bass Squeeze X-Series Dual Compressor Pedal Product Description

    The Bass Squeeze is the result of collaboration between DigiTech and dbx to create the world's finest bass compression pedal. Utilizing award- winning dbx OverEasy technology, the Bass Squeeze delivers dual-band compression, creating the best bass compressor found in any stomp box.


    Level - controls the overall compression level

    Crossover - selects the frequency at which the signal crosses over from the low band to the high band control. The frequency range runs from 100Hz to 3kHz

    Low Band - adjusts the amount of low frequency compression plus the output level

    Dual Outputs. The Amp output is for connecting directly to a bass amplifier. The Mixer output, with CIT bass cabinet emulation technology, is for connecting directly to a mixing board or headphone preamp.

    Same Day Music is an authorized dealer of DigiTech products.

    DigiTech Bass Squeeze Pedal Technical Description

    Controls: Level, X-Over, Lo Band, Hi Band, On/Off Pedal
    Jacks: Input, Out 1 (Amp), Out 2 (Mixer)
    Input Impedance: 1 MOhms
    Output Impedance: 100 Ohms
    Power Supply: 9V Alkaline Dry Battery
    Power Consumption: 4.8Watts (w/optional PS200R power supply)
    Battery Life: Approximately 4 hours (with continuous usage)
    Dimensions: 4-15/16 in. (L) x 3-1/8 in. (W) x 2-1/8 in. (H)
    Weight: 1.38 lbs.
    Optional Power Supply: PS200R

    Same Day Music is an authorized dealer of DigiTech products.
