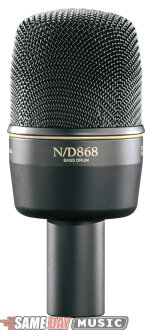

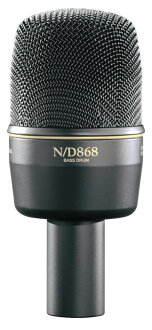

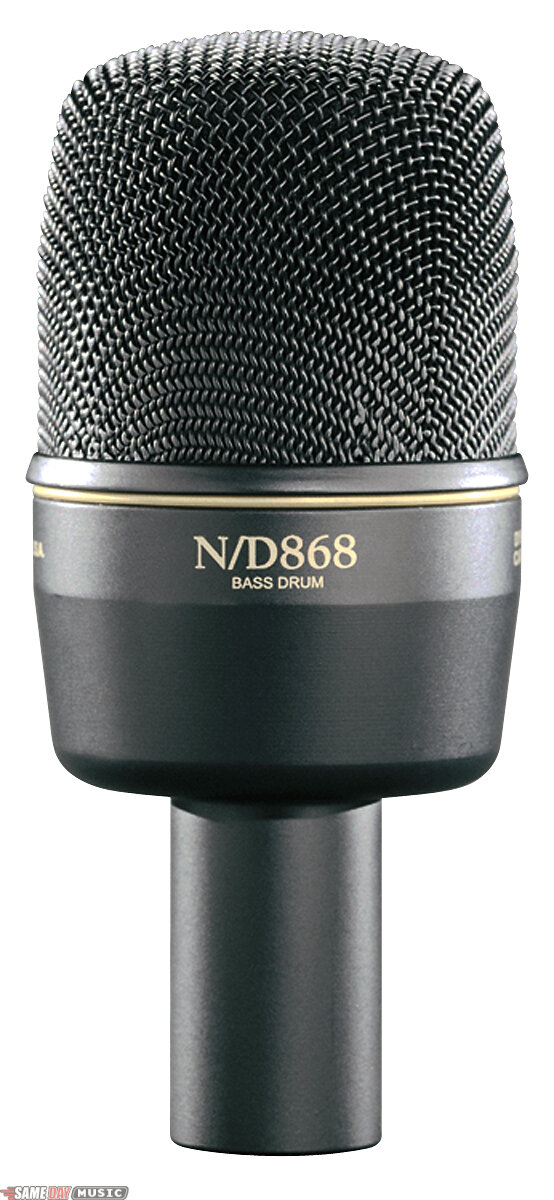

    Electro-Voice N/D868 Variant Bass Drum Microphone, Dynamic

    Make your kick drum sound incredible. Cardioid dynamic microphone.

    This product has been discontinued or is no longer sold by SameDayMusic.

    We recommend this product instead:

    Electro-Voice ND68 Dynamic Supercardioid Bass Drum Microphone


    The Electro-Voice ND68 is a robust, high-performance dynamic supercardioid kick drum and low frequency instrument microphone. The ND68 supercardioid polar pattern provides excellent acoustic isolation from nearby instruments, and its voicing characteristics deliver a deep low end, relaxed midrange, as well as high-frequency content for aggressive top-end punctuation. > More

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Electro-Voice ND868 Microphone Product Description

    The Electro-Voice ND868 is a cardioid dynamic mic with only one purpose in life: to make your kick drum sound incredible. No, the ND868 isn't what you'd call versatile. In fact, this is one of the most single-minded mics you'll ever meet. And that's why it sounds so great. If you want the bass drum to penetrate the crowd, if you want full, air-pushin' KICK from a mic that won't distort no matter what kind of John Bonham is behind the skins, this is it!

    Perfect for live or studio settings, the ND868 boasts the kind of frequency response you have to "tune" other mics for in a bass drum application. In other words, this mic is plug and play! Its low-sensitivity design keeps it from distorting in the high-sound-pressure bass drum environment. Its humbucking coil effectively cancels hum interference from lighting and other power sources. Its cardioid design picks up only the sound in front of it. In other words, no unwanted frequencies, distortion, hum, or outside noise allowed. The EV ND868 gives you nothing but kick.

    Same Day Music is an authorized dealer of Electro-Voice products.

    ElectroVoice ND868 Technical Description

    Frequency Response: 20 Hz to 10 kHz

    Polar Pattern: Cardioid

    Impedance: Low-Z balanced (150 Ohms)

    Microphone Connector: 3-pin, XLR-type

    Polarity: Positive pressure on diaphragm causes positive voltage on pin 2 ref. pin 3

    Finish: Non-reflecting black

    Open Circuit Voltage: 1 mV/Pascal @ 1.0 kHz

    Power Level: (0 dB=1mW/pascal) -51.7 dB @ 1.0 kHz

    Memraflex grille screen

    Steel Case

    Length @ 5.22 in. (132.6 mm)

    Diameter @ 2.36 in. (60 mm)

    Shank @ 1.0 in. (25.4 mm)

    Net @ 10.4 oz. (295 g)

    Shipping @ 26.5 oz. (750 g)

    Accessories Included
    320 stand clamp

    Soft zippered gig bag

    Same Day Music is an authorized dealer of Electro-Voice products.
