    Electro-Voice ZX1-Sub Passive, Unpowered Subwoofer (800 Watts, 1x12")

    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 20X-CLZN

    Web Item #ELVZX1SUB

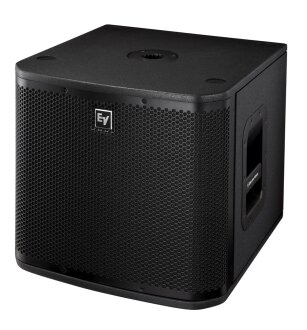

    Electro-Voice ZX1-Sub Passive Subwoofer
    View Larger Image

    More Resources

    Manuals and Documents: Datasheet Manual
    Electro-Voice Warranty: Electro Voice Warranty ´╗┐Electro-Voice offers the following warranties: 5 years on speakers; 3 years on electronics; and 2 years on microphones. If you have additional warranty questions, please call the manufacturer at 800-289-0096
    In Stock | Will Ship Today
    • 2 Day: $30
    • Overnight: $90
    This product ships to: Can ship to United States Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Electro-Voice ZX1-Sub Passive, Unpowered Subwoofer (800 Watts, 1x12") Product Description

    A compact sub to add some punch to your system! The Electro-Voice ZX1-Sub Passive Subwoofer is optimized for performance with a variety of EV loudspeakers, including ZX1, EVID, and EVU models, or any other full range speaker. The EV ZX1-Sub will add a deep low-frequency punch that you can feel as well as hear. An ideal choice to complete a wide range of smaller fixed installations or live sound systems.


    - 15-mm plywood enclosure, internally braced, with textured paint
    - EVS-12S 12-inch speaker for powerful, engaging bass response
    - Pole mount for full-range systems
    - A surprising 1,600-watt peak power handling capability

    Note: Unpowered speaker, requires separate power amplifier.

    Same Day Music is an authorized dealer of Electro-Voice products.

    Electro-Voice ZX1-Sub Passive Subwoofer (800 Watts, 1x12") Technical Description

    - Input Connections: NL4 style (2)
    - Nominal Impedance: 8 ohms
    - Frequency Response (-3 dB): 53 - 125 Hz
    - Frequency Response (-10 dB): 42 - 200 Hz
    - Sensitivity 1 W/1 m: 94 dB
    - Max. SPL/1m (calc): 127 dB
    - Power Handling:
    - Continuous: 400 Watts
    - Program: 800 Watts
    - Peak: 1600 Watts
    - LF Transducer: EVS-12S, 12-inch Woofer
    - Enclosure Material: 9-ply 15 mm plywood, internally braced with textured paint
    - Mounting: 1-3/8" (35 mm) pole-mount socket
    - Grill: 16 GA steel with black powder coat
    - Dimensions (HxWxD): 15.75 x 17.5 x 18 inches

    Same Day Music is an authorized dealer of Electro-Voice products.
    Shipping Weights and Dimensions
    Shipping Weight: 55 lbs
    Shipping Dimensions: 22 x 20 x 18 in
