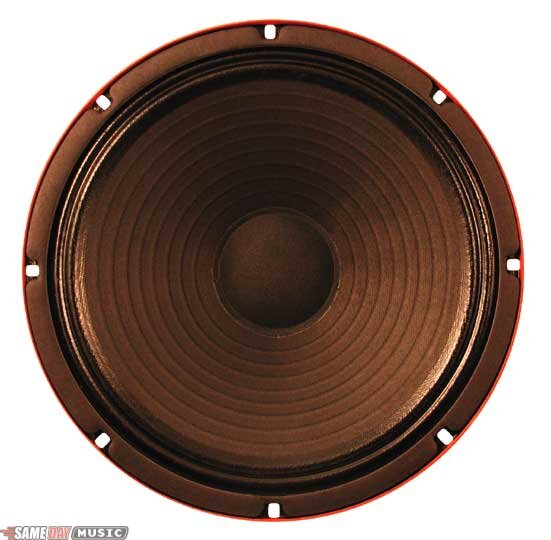

    Eminence Redcoat Ramrod Guitar Speaker, 75 W, 10 Inch

    Incorporates British and American cone technology. Made in the USA.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 20X-5B2P

    Web Item #EMNRAM

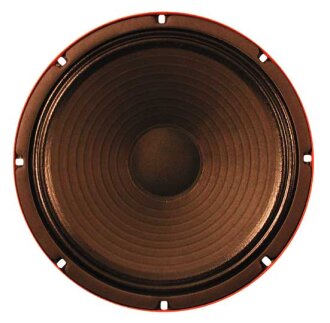

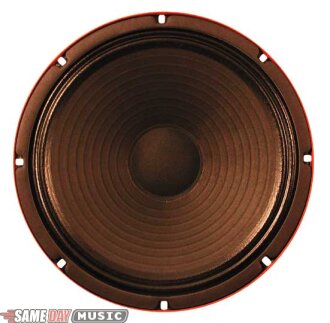

    Eminence Redcoat Ramrod Guitar Speaker
    View Larger Image

    More Resources

    Eminence Warranty: If you have additional warranty questions, please call the manufacturer at 502-845-5622
    Order Now | Limited Qty
    • 2 Day: $6
    • Overnight: $30
    This product ships to: Can ship to United States

    This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened.

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Eminence Ramrod Red Coat Guitar Speaker (75 Watts, 10") Product Description

    Very loud, gutsy, and meaty tone with singing highs and nice, clear overtones.

    Same Day Music is an authorized dealer of Eminence products.

    Eminence Ramrod Red Coat Guitar Speaker (75 Watts, 10 in.) Technical Description


    Impedance: 8 ohms

    Power Rating**: 75W RMS

    Voice Coil Diameter: 1.5 in., 38.1mm

    Coil Material: Copper

    Flat/Round Coil Wire: Round

    Coil Former Material: Kapton

    Basket Type: Stamped

    Cone Surround Material: Paper

    Dust Cap Material: Zurette

    Magnet Weight: 30 oz.

    Usable Bandwidth (Fs to -3dB): 70Hz - 5kHz

    SPL*: 100dB

    * = Published sensitivity is an average of multiple points representing the measured output of the device (1W-1m) across the usable frequency range from 200Hz-5kHz.

    ** = EIA 426A noise source and test standard. Eminence voice coil technology often results in guitar speakers that dramatically exceed the power rating of other manufacturer's products. Such ratings are not meant to imply the Eminence woofers are not equally suitable for lower-power "Class A" valve amplifiers as they are for high gain valve and transistor amplification.

    Mounting Information

    Nominal Basket Diameter: 10.11 in. (256.8 mm)

    Baffle Hole Diameter: 9.125 in. (231.8 mm)

    Mounting Holes Diameter: 0.225 in. (5.7 mm)

    Mounting Holes B.C.D.: 9.5 in. (243.8 mm)

    Depth: 4.3 in. (109.2 mm)

    Shipping Weight: 9 lbs. (4.1 kg.)

    Important Note

    Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.

    (Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)

    Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.

    Same Day Music is an authorized dealer of Eminence products.
    Shipping Weights and Dimensions
    Shipping Weight: 7 lbs
    Shipping Dimensions: 11 x 11 x 6 in
