    Eventide Eclipse Harmonizer Effects Processor

    The Power, The Performance, The Heritage of Eventide Audio Effects in a Single Rack Space Unit.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

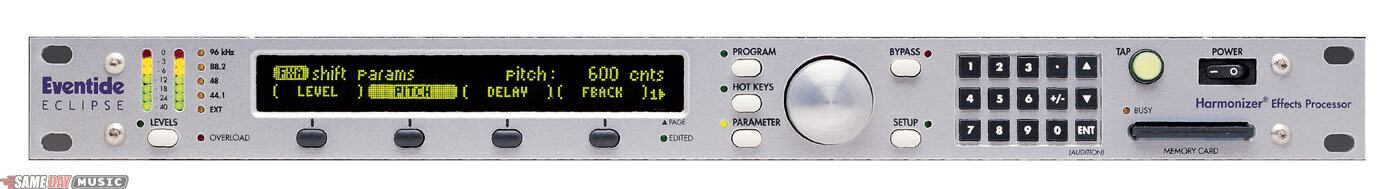

    Eventide Eclipse Harmonizer Studio Effects Processor Product Description

    Eclipse is the only effects processor in its class to feature 24-bit digital conversion and 96kHz sampling. Eventide packed almost 100 algorithms into Eclipse along with a two effects block design. The dual routing configurations let you use Eclipse as two independent effects processors; ideal for the smaller, budget-conscious studio. The two effects blocks' inputs and outputs can be configured for stereo or mono. Or, select a preset that combines two algorithms or recursive combinations for big multi-effects without sacrificing quality.

    Classic Eventide Effects

    We've packed Eclipse with effects Eventide is famous for. There's quick, seamless pitch shifting including the innovative Micro pitch shift, which FOH engineers and vocalists have come to rely on for turning good vocal performances into great ones. Eclipse boasts no fewer than 11 reverberation algorithms plus four plex algorithms. Originally developed for Eventide's industry-standard Orville and DSP 7000 series, these reverbs have been carefully and faithfully transplanted into Eclipse. And all reverbs are true stereo in and out, not mono in, stereo out. The vast array of delays lets you design lush, dense soundscapes. You'll find band delays, chorus delays, comb delays, ducked delays, ring delays and pan delays. And with 20 seconds of memory per effects block, Eclipse is a looper's delight. It's easy to get lost in the 20-second mono loop, 10-second dual loops, 20-second reverse loop, and 10-second dual reverse loop. Remember, these looping presets running on one FX block leaves the other FX block available for adding texture or dimension.

    I/O Ports for Maximum Versatility

    The rear panel has a port to support all your needs, including AES/EBU, S/PDIF and ADAT Lightpipe for digital applications. Analog balanced XLR-type and unbalanced 1/4-inch inputs and outputs. The 1/4-inch jacks even accept a high impedance instrument signal. There's Word Clock In and Out on BNC connectors and two pedal ports for performers. And of course, full MIDI (IN/OUT/THRU) including an external power jack for your cabling convenience. There's even a serial port which makes it easy to update Eclipse's software from the internet; no chip changing needed.

    Easy Set-Up and Operation

    The Eventide knob and keypad make setup and operation easy. If you're familiar with the H3000 series Harmonizer units, you've already got the basics.

    Hot Keys

    Hot Keys provide quick access to the eight most important parameters on every preset. In addition, you can customize the Hot Keys on any preset to create your own unique program.

    Dedicated Tap Button

    The tap button isn't just for delays. It's also the frequency rate of the LFO modulating your sample and hold filter, or the speed of your autopanner or tremolo. The Tap function can be set to average out from 2 to 12 taps.

    Design Your Own Presets

    You get a complete selection of presets, but eclipse makes it easy to design your own. Load one or two algorithms, pick a routing, assign the Hot Keys, and tweak.

    Flash Card Slot

    Your presets can be stored easily in the Eclipse or on an affordable compact flash card. Transferring presets from on Eclipse to another is simple with compact flash cards.

    Unleash the Sonic Beast

    Whether it's live performance, front-of-house engineering, or quality studio processing, Eclipse gives you the tools you can depend on in one compact, professional package. After all, Eclipse is not just an effects box, it's an Eventide.

    Version 4 Software Release

    Eventide has release V4.0 software for its Eclipse Harmonizer(R) processor, further demonstrating its commitment to the installed base of Eclipse owners and production icons. The Eclipse is attracting attention from musicians and engineers alike and the software significantly accelerates program load time and incorporates the entire catalog of TimeFactor and ModFactor effects. Expanding the number of effects to 113 and the number of presets to 511, v4.0 software adds the ability to run full Eventide stompbox algorithms and other select Eclipse effects simultaneously. As an example, users now have the ability to run stereo delays feeding an ambience effect while the stompbox parameters will be mapped to the four hot keys on the Eclipse.

    Widely used by professional touring musicians, front of house engineers and top recording studios alike, the Eclipse Harmonizer comprises Eventide's best effects in a compact dual engine processor which is capable of running two stereo effects at one time, either in serial or parallel. Any parameter can be adjusted in real time using a standard MIDI foot controller or an expression pedal, making the Eclipse one of the most expressive effects processor available.

    "This milestone software release makes the Eclipse even more enticing," noted Ray Maxwell, Eventide vice president of sales and marketing. "We continue to add value and optimize the performance of this superb hardware processor with the addition of the TimeFactor and ModFactor effects. With this update, the Eclipse maintains its edge as the go-to rack processor for performance or studio. Now in the studio, you can have the very same effects which appear in the stompboxes accessible with S/PDIF, AES or ADAT digital I/O."

    The software is already integrated into the currently shipped stock. Eclipse V4.0 software is a free download for previous Eclipse owners who have registered their product at

    Same Day Music is an authorized dealer of Eventide products.

    Eventide Eclipse Harmonizer Studio Effects Processor Technical Description

    Sample Rates
    96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz, Word Clock, AES, S/PDIF, ADAT

    Digital Inputs/Outputs
    2 Channels of AES/EBU, S/PDIF (Optical or Coaxial) or ADAT Lightpipe

    Frequency Response
    +0/-0.1dB @ sample rate:
    44.1 kHz: 10Hz - 20kHz
    48 kHz: 10Hz - 22kHz
    88.2 kHz: 10Hz - 41kHz
    96 kHz: 10Hz - 44kHz

    Remote Control Inputs
    Up to 2 foot pedals (or 5V control inputs) or 6 foot switches or combination

    MIDI Connections
    5-pin DIN output and thru
    7-pin DIN input with output capability and external power jack

    Compact Flash Interface
    Supports Type I and Type II Compact Flash Cards for data storage

    Same Day Music is an authorized dealer of Eventide products.
    Shipping Weights and Dimensions
    Shipping Weight: 15 lbs
    Shipping Dimensions: 23 x 15 x 6 in
