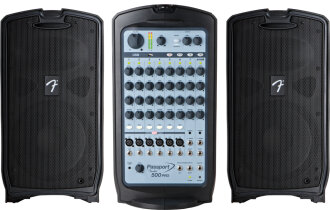

    Fender Passport 500 PRO Portable PA Public Address System

    The lightweight Fender Passport 500 PRO portable PA system has everything you need to broadcast to a large crowd, even allowing you to record to a USB drive.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 2.6 Out of 10 (1 rating)


    Fender Passport 500 PRO Portable PA System Product Description

    Fender's Passport Pro Series

    You're a singer songwriter. Or a salesman. Or a saleswoman. Or a yoga/aerobics/martial arts instructor. Or a gigging pianist. Or a motivational speaker. Or a murder mystery dinner party host.

    And you need a PA system that's extremely portable, streamlined for simple set up, tear down and use AND delivers a clear sound that gets your message across. Well, look no further than the Passport 500 Pro.

    Passport 500 Pro

    The new PRO models are the latest step in the ongoing evolution of the Passport series as the finest available portable PA. The eight-channel Passport 500 PRO is the new top-of-the-line Passport system. The 500 model has always had the most power and the best clarity; now it also has a port that lets you record your performance with CD quality (.wav) straight to a USB flash drive, CD-quality .wav and mp3 file playback, sub-out jack for an external powered sub-woofer, lighter weight (a full 9 lbs. lighter than the earlier Passport 500 model), smaller physical dimensions, and a redesigned speaker system with 10" woofer and improved clarity.

    Fender kept the best of previous Passport generations and added new features and improved functionality so that new Passport systems are ideal for whatever your application may be--education, sporting and worship events; meetings, seminars and presentations; gigs at parties, small clubs and coffeehouses.

    You need big sound with great clarity and convenience. You need portability and a short set-up/tear-down time. You need to get your message across.

    You need the Passport 500 PRO.

    Fender Passport 500 PRO PA Technical Description

    - Model Name: Passport(R) 500 Pro
    - Model Number: 069-4405-000 (120V 60Hz) US
    - Description: Complete Self Contained Portable Sound System
    - Series: Passport
    - Dimensions: Height: 23" (58.42 cm)
    - Width: 29" (73.66 cm)
    - Depth: 11" (27.94 cm)
    - Weight: 44 lbs. (19.96 kg)
    - Covering: Black Luggage Style Molded Plastic Case
    - Power Output: 500 Watts Class-D Power Amp
    - Input Power: N/A

    - USB port lets you record your performance with CD Quality (.wav) Straight to a USB Flash Drive.
    - Six mic lines with XLR and 1/4 inputs.
    - Two stereo inputs with 1/4 and 1/8 (for MP3 player) inputs.
    - 1/4 subwoofer out with 120Hz high pass filter.
    - CD-quality .wav and mp3 file playback.
    - Docking connector for Passport wireless receiver.
    - Speaker systems feature tightly controlled coverage to minimize feedback.
    - 35mm (1-3/8") stand adapters built into each speaker cabinet.
    - Two speaker cables and a detachable power cable.
    - Mic/cable storage compartment with latching lid.

    Specifications: 500 Watts Stereo, 250 Watts Continuous Power Per Channel Into 8 ohms, Two Speaker Cabinets with One 10 Woofer and One 1.2 Horn Loaded Tweeter


    Master Controls:
    - Master Volume
    - Level Meters
    - Master Tone
    - Reverb 1 / Reverb 2 Select Switch
    - Reverb Time
    - Reverb Tone

    USB Record / Playback:
    - USB Input
    - Record
    - Play / Pause
    - Previous
    - Next

    Master Controls:
    - Signal Present/Clip Indicator LED
    - Level
    - High / Low
    - Reverb
    - Pad (-20dB)

    Mono Channel Inputs:
    - Mic
    - Line
    - Phantom Power

    Stereo Channel Inputs:
    - 1/8" Stereo
    - 1/4" Left (Mono) / Right

    Front Panel Outputs:
    - Stereo Out
    - Level
    - Pre Out / Power Amp In
    - Sub Out
    - Power/Protect LEDs

    Rear Panel:
    - Switchable Line Voltage for International Use
    - On/Off Power Switch
    - Power Socket
    - Fuse
    - Speaker Output Jacks

    Introduced: 1/2010

    Notice: Product Prices, Features, Specifications and Availability Are Subject To Change Without Notice
