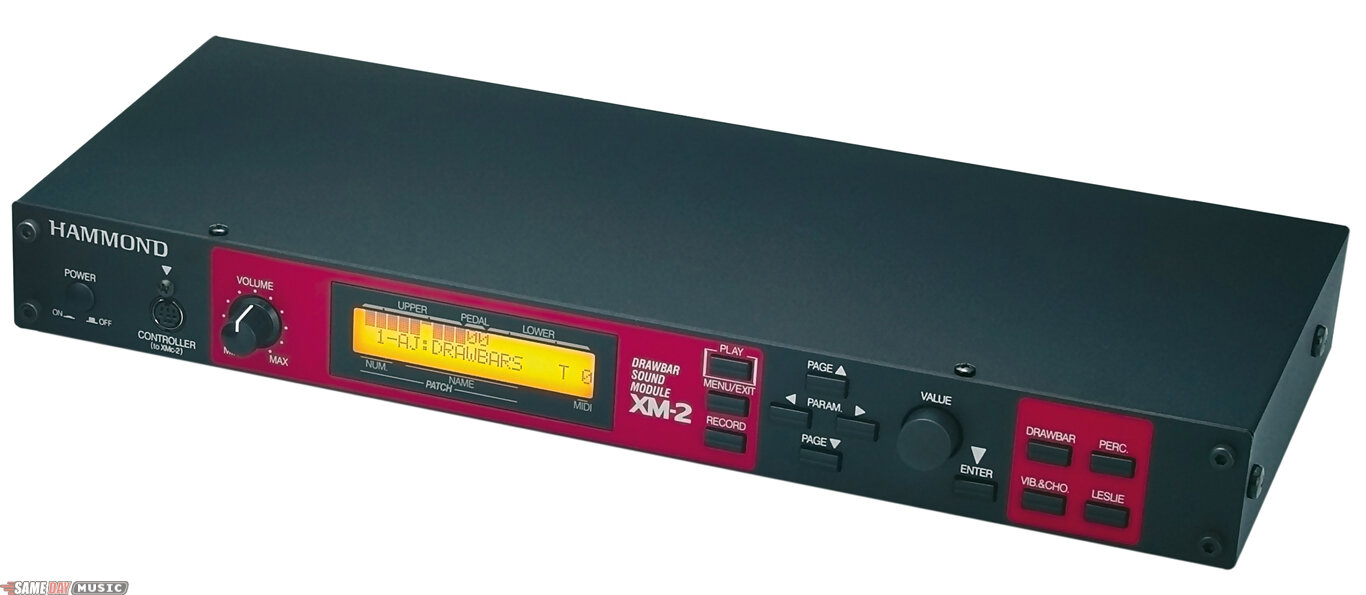

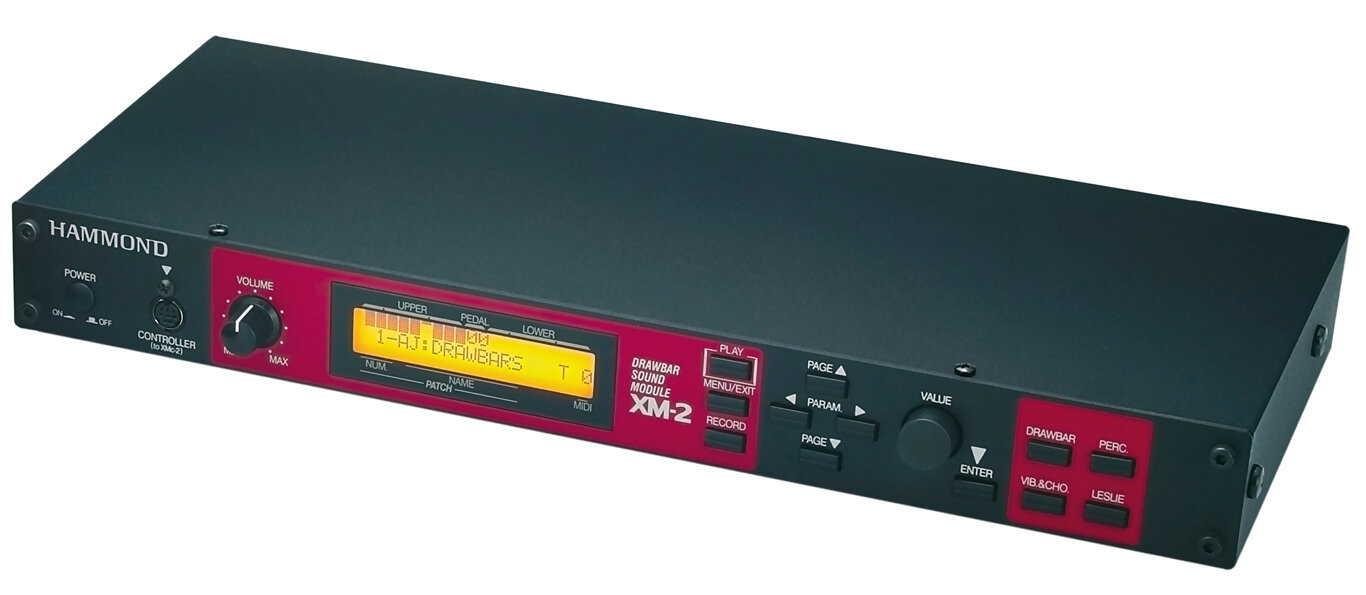

    Hammond XM-2 Drawbar Tonewheel Organ Sound Module

    Uses two VASE III digital tone wheels. Tone module only.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Hammond XM2 Drawbar Module Product Description

    This exciting new Pro drawbar module is powered by the most advanced VASE3 Digital tone wheel generator. The XM-2 utilizes many outstanding sounds and features found in Hammond's famous XK-3 keyboard.

    Hammond's new drawbar module consists of 2 separate components.

    First there is the XM-2 which is the sound-generator that can reproduce all the unique Hammond organ-sounds using 'Digital Tone-wheels' powered by a double Vase III-engine. This unit can operate on its own as a module in a studio environment.

    To truly achieve full flexibility and create live new drawbar-settings on the fly, you should add the XMc-2 (sold separately). This unit operates as a (remote) controller but cannot create sound on its own. Its purpose is to command the XM-2 module in a very fast and user-friendly way.

    The XM-2 module gives the incomparable sound of the legendary Hammond B-3 to your MIDI keyboard.

    Power Supply: AD1-1508 Power Cord (Included)

    Same Day Music is an authorized dealer of Hammond products.

    Hammond XM2 Technical Description

    Sound generator: 2 x Vase III as Digital Tone-wheel

    Harmonic drawbars:
    -- Pitches: 9 Pitches (Upper & Lower), 2 Pitches (Pedal)

    -- Wavefrom: B-type/Mellow/Brite(Upper and Lower)/Muted/Normal/Synth1/Synth2(Pedal)

    -- Harmonics: Second, Third, Fast Decay, Soft

    -- Adjustable: Touch, Velocity, Decay (Fast, Slow), Level (Soft, Normal)

    -- Master: 430 ~450 (1Hz Steps)

    -- Transpose: -6 ~ 0 ~ +6 semitones

    -- Internal Leslie: On, Fast, Brake, Digital 2 Rotors, Leslie-presets: 122,147,710,760,825(adjustable)

    -- Vibrato and Chorus: V1, V2, V3, C1, C2, C3, Upper&Lower, On/off, Speed:5(6,10Hz~7,25Hz)

    -- Overdrive: Digital Overdrive

    -- Equalizer: 3 Bands

    -- Reverb: 10 Programs

    -- Sustain: 5 Lengths (Pedal)

    -- Functions: Split, Manual Bass

    -- Adjustable: Split Point, Lower Octave, Pedal Top Key

    Patches: 128 Patches

    Display: 20 characters, 2 lines with 8 control switches and rotary encoder

    Storage: None

    MIDI: Templates: 4

    Connections: DC-Input(9v), MIDI In1, In2, Out, Expression Pedal (Phone jack), Foot switch, Line out L/Mono,R, Headphones, 8-pin Leslie

    Accessory: AC-Adaptor

    Dimensions: 396mm(W) x 172mm(D) x 50mm(H)

    Weight: 3.5 kg

    Power Supply: AD1-1508 Power Cord (Included)

    Same Day Music is an authorized dealer of Hammond products.
