    Ibanez Classic Wah WH10V2 Effects Pedal

    Updated and upgraded. Enclosed in a die-cast case. Multiple feedback opamp circuit. Depth Controls from +6 to +20dB.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

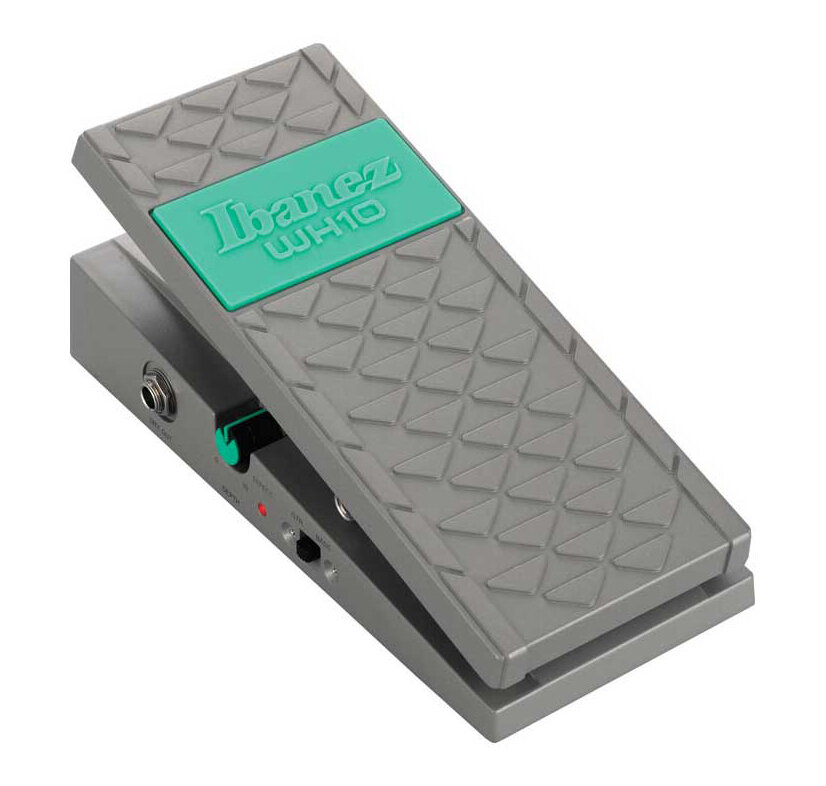

    Ibanez WH10V2 Classic Wah Pedal Product Description

    Ibanez WH10V2 Classic Wah Pedal; A hit from the 80's is back, better than ever!
    Updated and upgraded, at first touch you will notice that the WH10 Reissue is stronger since its inclosed in a die-cast case unlike the original plastic one that caused misery for hard stomping musicians.

    The WH10V2 features the same multiple feedback opamp circuit as the original, a feature rarely found in today's wah pedals. It also has a depth knob to control to level of the wah effect and a dry out for mixing a dry signal with the wah sound. The WH10V2 has a unique tone character setting it apart from all traditional wah pedals, as well as some modern tweaks so your sound keeps changing with the times.

    - Multiple feedback opamp circuit

    - Dry Out Output

    - Depth Controls from +6 to +20dB

    - Range Switch allows selection of Guitar or Bass frequencies

    - Powered by 9V battery or Optional AC109 power supply

    - Die-cast case

    Since the point of having a classic wah pedal is to squeeze every ounce of expression out of a screaming solo or rhythm part, it's easy to see why the original WH10 was a hit when it was first released in the '80s. Now it's back and even better.

    Same Day Music is an authorized dealer of Ibanez products.

    Ibanez WH10V2 Technical Description

    Depth Knob: +6 to +20dB

    Range Switch:
    - Guitar: 350Hz - 2.2kHz
    - Bass: 175Hz - 1.1kHz

    Input Impedance: 500Kohms

    Output Impedance: 1Kohm

    Maximum output level: +4 dBv

    Power Supply:
    - One 9V battery
    - Optional Ibanez AC109 power supply

    Dimensions (WxHxD): 3.5 x 2.2-3.3 x 7.9 inches (89 x 55-84 x 200 mm)

    Same Day Music is an authorized dealer of Ibanez products.
