    JBL EON Series EON 510 Powered 2-Way Speaker, 280 Watts, 1x10 in.

    Ultra Light Weight and Extremely Compact. Built-in 3 Channel Mixer. Line level and direct microphone input capability.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

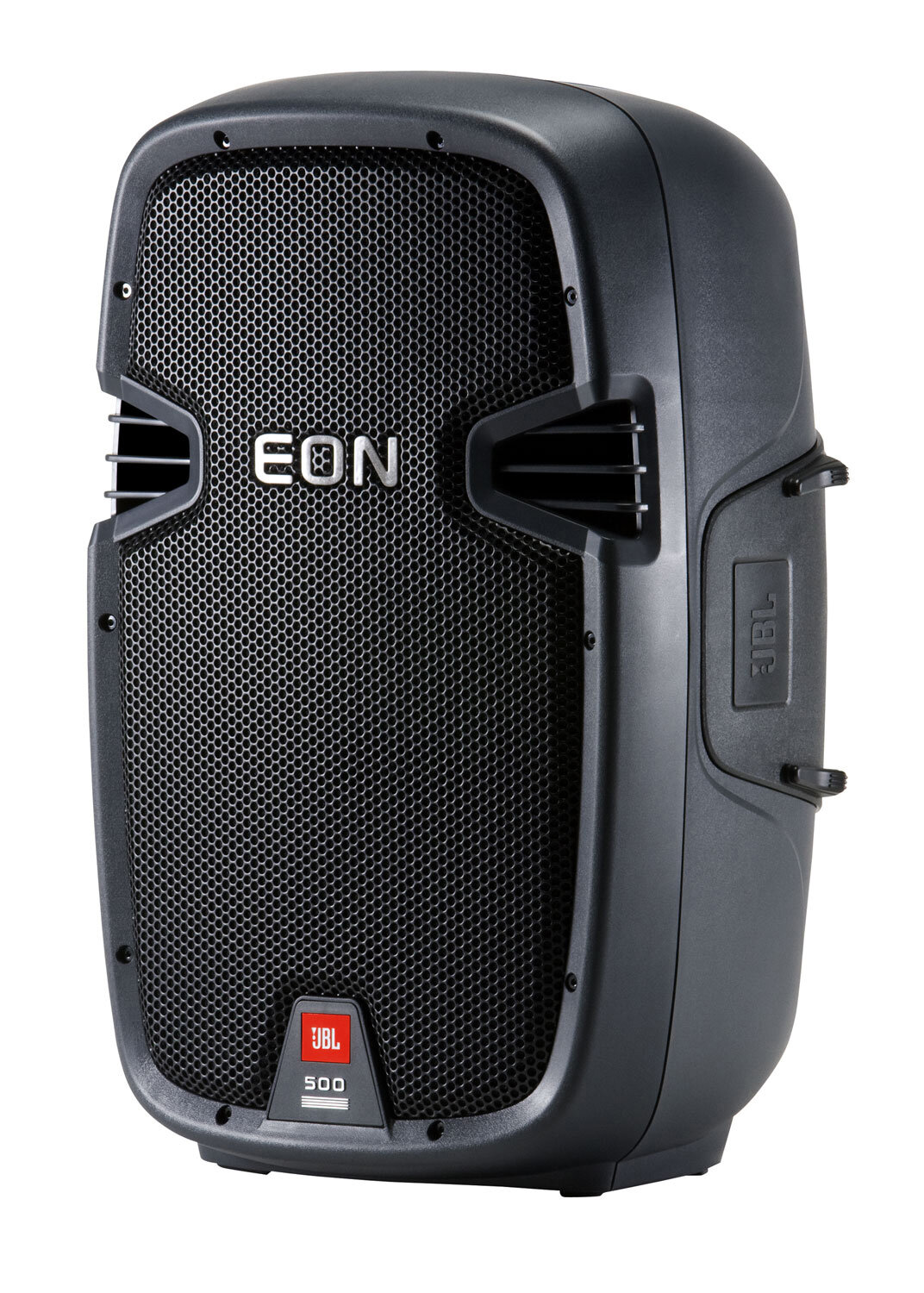

    JBL EON 510 Powered 2-Way Speaker (280 Watts, 1x10") Product Description

    Representing the next generation of its groundbreaking and industry-standard EON(r) series portable loudspeakers, today JBL is introducing the EON 500 series. The unveiling of the EON 500 series self-powered and lightweight speakers immediately raises the bar in the category of molded powered loudspeakers in all aspects, from industrial design to sonic performance, integrated utility and portability.

    The EON 510 is a 10-inch, two-way, powered, portable speaker system. Capable of reproducing full bandwidth sound at high levels it offers the additional utility of a 3 channel built-in mixer. The EON 510 is comprised of a 254 mm (10 in) Differential Drive(r) woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100 H by 60 V degree waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and mixer functionality.

    280 watt High-Performance Powered Speaker System

    Ultra Light Weight and Extremely Compact

    Soft touch top grip for easy handling.

    10 in. Differential Drive low-frequency driver with neodymium magnet for low-distortion and light weight

    1 in. throat diameter next generation JBL neodymium compression driver

    Efficient Class-D digital amplifier technology

    Built-in 3 Channel Mixer

    100 H x 60 V degree asymmetrical waveguide for uniform audience coverage

    Line level and direct microphone input capability

    Selectable Pre-engineered EQ settings

    Unique Mix/Loop signal flow function for extended system application

    Easy "daisy-chain" connections for extending the system

    Integrated M10 suspension points for easy rigging

    Multi angle enclosure for main or monitor applications

    Integrated 36 mm pole mount socket with stabilizing securing screw

    Highly designed composite enclosures for durability, lightweight, and acoustic performance

    Same Day Music is an authorized dealer of JBL products.

    JBL EON 510 Technical Description

    - System Power Rating: 280 W continuous, 560 W peak
    - Frequency Range (-10 dB): 58 Hz - 18.5 kHz (EQ in 'Flat' position)
    - Dimensions (H x W x D): 490 x 313 x 262 mm (19.3 x 12.3 x 10.3 in)
    - Frequency Response (+/-3 dB): 70 Hz - 17 kHz (EQ in 'Flat' position)
    - Coverage Pattern: 100* H x 60* V nominal
    - Maximum SPL: 121 dB
    - Net Weight: 7.7 kg (17 lb)

    Same Day Music is an authorized dealer of JBL products.
