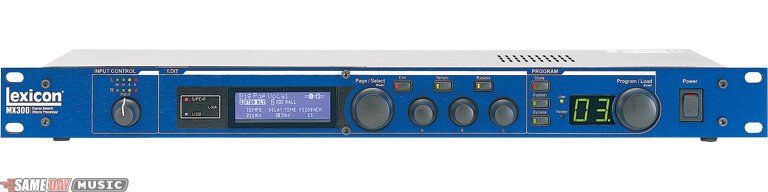

    Lexicon MX300 Stereo Reverb Effects Processor

    The Lexicon MX300 is dual channel reverb processor with delay effects and built-in USB hardware plug-in capability.

    This product has been discontinued or is no longer sold by SameDayMusic.

    We recommend this product instead:

    Lexicon MX400 Dual Stereo/Surround Reverb Processor



    The Lexicon MX400 dual-stereo (4x4) Processor is equally at ease in the studio or a concert hall, with a unique VST/AU software interface via USB, delivering the classic Lexicon sound. > More

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Lexicon MX300 Dual Processor Stereo Reverb Product Description

    Lexicon's revolutionary MX200 and MX400 changed everything. The great sound of a hardware Lexicon reverb -- plus the ability to put that power to work as part of your DAW workflow via PC VST and Mac AU plug-ins. Now they've packed a significant portion of the MX400's feature set into the ultra-affordable MX300.


    - 2-in/2-out configuration
    - 16 legendary Lexicon reverbs
    - Lexicon delays & modulation effects
    - dbx compression and de-essing
    - Input Gain Control for stereo inputs
    - Intuitive Navigation/Edition with large LCD screen, Page/Select Wheel, 3 top-level parameter controls plusExit, Tempo and Bypass selectors
    - 5 effect routing options
    - 99 Factory / 99 User programs
    - USB "Hardware Plug-In" feature with VST and Audio Units plug-in software
    - MX-Edit Editor/Librarian software
    - S/PDIF Digital Input/Output
    - 24-bit, 48/44.1 kHz sample rates
    - 1/4"" footswitch jack
    - MIDI IN and THRU
    - XLR and 1/4"" TRS balanced I/O

    All parameters of every reverb, delay and dynamic effect in this powerhouse processor are available inside any PC VST or Macintosh AU compatible DAW program. Just link your computer to the MX300 with a USB cable, and control automation and recall parameters exactly as you would with any software plug-in. You get the sonic benefits only Lexicon hardware can provide -- without bogging down your computer's CPU with the extreme demands of reverb plug-ins.

    Along with the unique "hardware plug-ins" for PC and Mac, Lexicon has also included MX-Edit Librarian software so you can store and recall custom programs or pull up an unlimited number of Lexicon settings. Do a serious side-by-side listening test of the MX300 versus comparably priced competition and units costing far more. You'll hear why Lexicon is the leader in reverberation effects.

    When money is no object, Lexicon gets written into more major tour riders than any other brand of reverb. But when money is a concern, you can still have the rich, detailed texture that makes the Lexicon sound unique. Here is a full arsenel of voice and instrument-enhancing effects including sixteen Lexicon reverbs, seven delays, genuine DBX compression and de-essing and modulated effects that will make any performance sound better.

    Lexicon designed the MX300 to be ultra-easy-to use in demanding live sound situations. Once a program has been selected, you have instant access to three parameter knobs -- instead of having to page through extra menus. You can program a whole night of presets, and dial them up quickly with the dedicated program select knob and bright LED display. Like every product that Lexicon makes, the MX300 is designed to withstand years of jarring, jostling, load-ins, load-outs, brownouts and power surges. It's simply the most live reverb ever offered at this price.

    The MX300 lets you switch effect routings easily via front panel controls, so you don't have to spend time behind your rack changing cables. Dual Mono sends the Left and Right input signals through Effect 1 and Effect 2 respectively. Each signal is then routed to its respective output, completely independent from the other. Cascade (Series) sends Left and Right input signals first through Effect 1, then through Effect 2, and then routed as a stereo signal to their respective outputs. Dual Stereo (Parallel) routes Left and Right input signals through both effects independently. Both Effects' output signals are then mixed together, and routed to both the outputs as a single stereo signal. _Mono Split sends Left input signal through Effect 1, while the Right input signal is sent through Effect 2. The output signals of both Effects are then mixed together, and routed to both the outputs as a single stereo signal.

    Stereo routing provides a single stereo effect path for Left and Right signals. This routing removes one of the effect modules for users requiring a streamlined signal path with only a single effect for their needs -- but taking advantage of all of the MX300's processing horsepower.


    - Small Hall
    - Large Hall
    - Small Plate
    - Large Plate
    - Room
    - Chamber
    - Gated
    - Reverse
    - Vocal Hall
    - Vocal Plate
    - Drum Hall
    - Drum Plate
    - Ambience
    - Studio
    - Arena
    - Spring


    - Studio Delay
    - Mono Delay
    - Tape Delay
    - Pong Delay
    - Mod Delay
    - Reverse Delay
    - 2-Tap Delay

    DBX Dynamics:

    - Compressor
    - De-Esser

    Modulated Effects:

    - Chorus
    - Flanger
    - Phaser
    - Tremolo / Pan
    - Rotary
    - Vibrato
    - Pitch Shift
    - Detune

    Same Day Music is an authorized dealer of Lexicon products.

    Lexicon MX300 Dual Processor Stereo Reverb Technical Description

    Analog Audio Inputs
    - Connectors: Two 1/4 in. balanced TRS, Two XLR female
    - Impedance: 50k Ohms bal., 25k Ohms unbal.
    - Input Level: +4 dBu nominal, +24 dBu maximum 48kHz or 44.1kHz

    Analog Audio Outputs
    - Connectors: Twp 1/4 in. balanced TRS, Two XLR male
    - Impedance: 2k Ohms bal., 1k Ohms unbal.

    Same Day Music is an authorized dealer of Lexicon products.

    Lexicon MX300 Dual Processor Stereo Reverb Catalog Description

    Hardware processor with USB connection for control from your DAW@High-quality reverbs and delays@Dual XLR and TRS I/O@S/PDIF I/O
