    Lexicon MX400XL Dual Stereo/Surround Reverb Effects Processor with dbx Dynamics and USB

    XLR I/O, USB connection and VST/AU interface, 4-inputs and 4-outputs.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

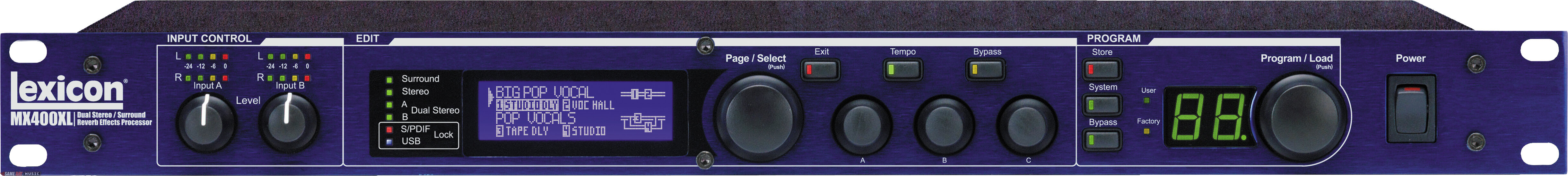

    Lexicon MX400XL 4-Channel Effects Processor with USB and XLR Product Description

    Plug In Programming & Recall with the Power of Lexicon Hardware
    You want the rich, luscious sound that's defined studio reverb for 3 decades: a genuine Lexicon hardware processor. But you also want the flexibility of programming high-quality effects right inside your DAW program... without bogging down your CPU or resorting to expensive processing cards.

    Have it all with the MX400. All parameters of every reverb, delay and dynamic effect in this powerhouse quad processor are available inside any VST or AU compatible DAW program. Just link your computer to the MX400 with a USB cable and control all automation and recall parameters exactly as you would with any software plug-in -- while enjoying the sonic benefits only Lexicon hardware can provide.

    Along with the unique 'hardware plug-ins' for PC and Mac, Lexicon has also included MX-Edit Librarian software so you can store and recall custom programs or pull up your choice of 223 genuine Lexicon settings including 25 dedicated Surround Programs. At its heart, the MX400 is everything you would expect from the company that invented digital reverberation. Seventeen Lexicon reverbs, delays and modulation effects plus dbx compression and de-essing. A generous LCD display and big comfy knobs you can get your hands around.

    17 legendary Lexicon reverbs

    Lexicon delays and modulation effects

    dbx compression and de-essing

    Quad-processor design

    7 effect routing options

    99 Factory/99 user programs for Stereo mode

    99 Factory/99 user programs for Dual-Stereo mode

    25 Factory/25 user surround programs

    USB 'Hardware Plug-In' feature with

    VST and Audio Units plug-in software

    MX-Edit Editor/Librarian software

    Dual S/PDIF Digital Input/Output

    24 bit, 48kHz/44.1kHz sample rates

    Large front panel LCD display

    MIDI IN and THRU

    XLR balanced I/O

    4-In/4-Out Versatility, Hands-On Control and Road-Rugged Construction
    Meet the most Lexicon power ever offered in a super-affordable 1RU effects processor. Perfect for band PAs, churches and clubs. You need to be able to make changes quickly, so they designed the MX400's intuitive front panel to be a bare minimum of knob tweaks away from any adjustment or effects change. For example, 3 individual, assignable parameter controls mean you don't have to page through menus to fine tune a reverb tail. Because you can use its built-in dbx compression and de-essing in tandem with reverb, the MX400 is the perfect tool for taming problem vocalists. Finally, you can rely on the MX400 for years to come, through countless load-ins and loadouts -- although its sound is A-studio-quality, Lexicon designed the MX400 to withstand dust, moisture, shock, power surges and all the other rigors of live sound use.

    The first time you ever heard reverb on an album track, chances are you were hearing Lexicon. They invented digital processing. And they've been perfecting it for 30 years.

    7 Effects Routing Options
    The MX400 lets you switch effect routings automatically via front panel controls, so you don't have to spend time behind your rack changing cables to instantly re-purpose its four powerful processors.

    From basc quad mono, to stereo to more complex dual stereo configurations, you can have 'em all at the twist of a knob.

    Small Hall
    Large Hall
    Surround Hall
    Small Plate
    Large Plate
    Vocal Hall
    Vocal Plate
    Drum Hall
    Drum Plate

    Studio Delay
    Digital Delay
    Tape Delay
    Pong Delay
    Mod Delay
    Reverse Delay
    2-Tap Delay

    dbx Dynamics

    Tremolo / Pan
    Pitch Shift

    All MX400 reverbs, delays, dynamics and effects parameters can be accessed and edited from the inlcuded VST and Audio Units plug-ins.

    Same Day Music is an authorized dealer of Lexicon products.

    Lexicon MX400XL 4-Channel Effects Processor with USB and XLR Technical Description

    Analog Audio Inputs
    - Connectors: (4) XLR balanced
    - Impedance: 50k Ohms bal., 25k Ohms unbal.
    - Input Level: +4 dBu nominal, +24 dBu maxium 48kHz or 44.1kHz
    - A/D Conversion: 24-bit, 48kHz 128 x oversampling

    Analog Audio Outputs
    - Frequency Response: 10Hz - 20kHz +0 dB/-0.5 dB
    - THD+N: <0.0019% 10Hz - 20kHz
    - Dynamic Range: >109dB (A-weighted) A/A
    - Crosstalk: Typical <-80 dB 20Hz - 20kHz

    Digital Input and Output
    - Connectors: Dual RCA phono (S/PDIF)
    - Format: S/PDIF 24-bit
    - Sample Rate: 44.1 or 48kHz
    - Frequency Response: 10Hz to 22kHz +/-0.5 dB @ 48kHz

    Control Interface
    - USB: USB 1.0 for MX-EDIT Editor/Librarian and VST/Audio Units plug-ins
    - MIDI: In/Out 5-pin DIN
    - Foot Pedal: 1/4 in. phone jack

    - Power: 117 VAC or 230 VAC, 18 Watts
    - Size (W/H/D): 19" x 1.75" x 7.25" */6.375"
    - Weight: 5.8 lbs. (2.6 kg)

    Same Day Music is an authorized dealer of Lexicon products.

    Lexicon MX400XL 4-Channel Effects Processor with USB and XLR Catalog Description

    Surround-capable; MIDI, S/PDIF, and 4 x XLR I/O@Quad-processor design@7 Routing options, accessible from front panel@VST/AU interface via USB

    Same Day Music is an authorized dealer of Lexicon products.
