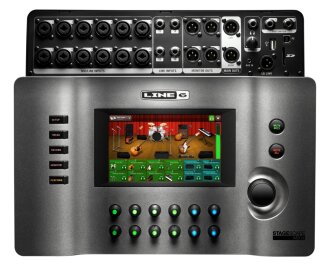

    Line 6 StageScape M20d Digital Mixer, 20-Channel Mixer

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Line 6 StageScape M20d Digital Mixer, 20-Channel Mixer Product Description

    The Line 6 StageScape M20d is the world's first smart mixer for live sound. Utilizing a groundbreaking touchscreen visual mixing environment, StageScape M20d streamlines the way you mix to keep you in the creative zone while getting your live sound dialed in quickly. Massive DSP power delivers comprehensive, professional audio processing on every channel including multi-band feedback suppression. Pristine audio quality will impact your stage performances, and multi-channel recording allows you to easily capture every rehearsal or show, with or without a computer. The entire system can be controlled remotely from the stage or audience with one or more iPad devices. StageScape M20d is the integrated professional mixing system that delivers great live sound, so you can focus on what's most important: your performance.

    Intelligence is built into every aspect of StageScape M20d. From auto-sensing inputs that automatically configure channel DSP processing to professionally crafted presets, to innovative touchscreen-based multi-parameter effects control, StageScape M20d provides a smarter, faster path to great live sound.

    Connect StageScape M20d to StageSource loudspeakers via L6 LINK to create the ultimate digitally networked dream stage setup.

    Touchscreen visual mixing environment

    StageScape M20d features an intuitive, 7 inch full color resistive touchscreen interface to get you mixing fast. The touchscreen displays icons on a stage that represent each performer or input, replacing generic rows of knobs and faders. Now you can reach for elements in the mix as you see them on the stage in front of you. A single touch on a performer's icon gives full access to all parameters relating to that channel, from basic tweaks through deep effects editing.

    Control the mix via iPad, wherever you are

    Set individual monitor mixes from the stage, tweak the front-of-house mix from the audience and more via iPad. The free StageScape app provides full control over all mixer and features and functions. Use one or more iPad devices simultaneously (via optional USB Wi-Fi adapter); each iPad can control different screens or different parameters in addition to the mixer's own touchscreen. Whether you're a band member adjusting your monitor mix or a sound engineer out in the audience, you've got full control.

    Professional suite of Dynamics, EQ, and FX on every channel

    StageScape M20d provides a professional suite of dedicated Dynamics, EQ, and FX processors custom tailored to each channel including fully parametric EQs, dynamic EQs, filters, standard and multi-band compression, limiters, gates, delays, and more. That's over 100 professional audio processors ready to create the perfect mix. 32-bit floating point processing throughout provides pristine, high resolution sound quality. Everything you need to get professional instrument and vocal sounds is available where you need it, when you need it.

    Tweak Pad, visual multi-parameter control

    For quickly dialing in channel EQ, dynamics, and FX, StageScape M20d provides an incredibly easy to use Tweak Pad X-Y multi-parameter controller. Drag a finger toward common sound descriptors like "bright" or "dark" and multiple parameters adjust simultaneously to achieve that sound.For experienced engineers who want fine control over all parameters, Deep Edit mode provides detailed plug-in-style interfaces, with discrete calibrated adjustment capability.

    Total Scene Recall

    StageScape can save and recall a virtually unlimited number of stage setups, scenes, and channel DSP presets. A huge library of professionally crafted channel DSP presets is provided to get you started and dramatically accelerate the process of getting great instrument and microphone sounds. Plug in a kick drum mic, choose a kick drum preset, and StageScape automatically configures a custom tailored suite of channel processors -- all you have to do is drag your finger around the Tweak Pad to dial in the perfect kick drum sound.

    Multi-channel recording, with or without computer

    StageScape M20d is designed to make recording so easy that it can be done any time, all the time-even without a computer. The M20d records in high-resolution, 24-bit WAV format to SD card, USB drive or direct to your Mac or PC. The convenience of being able to record to external media means you can track at a moment's notice with no DAW set up required. Since the recorded output is pre-effects, the raw tracks will be ready for mixing later in the recording software of your choice. The M20d enables you to easily capture everything -- from ideas and rehearsals to entire performances -- on your terms in the way that works best for you.

    Auto-sensing inputs and outputs

    From solo performances to full band shows, setting up for gigs is fast and easy. With auto-sensing inputs throughout, StageScape M20d activates each microphone or line input as soon as you plug in a cable and automatically configures a custom channel strip that includes essential gain, EQ, effects and routing. The monitor and main outputs work the same way. Plug in a PA speaker or monitor and it immediately appears on the touchscreen and output signals are automatically routed.

    Multi-band feedback suppression

    One of the most common problems that can ruin a performance is feedback. Fortunately, StageScape M20d features per-channel multi-band feedback suppression. Simply choose one of three suppression modes, and the technology quickly identifies problem frequencies and compensates automatically. You can perform with confidence that you sound your best.

    Digital networking via L6 Link & the Dream Stage

    When connected via L6 Link, StageScape M20d and StageSource speakers are capable of unparalleled power and flexibility. Together they redefine the typical mixer/speaker paradigm to introduce a smarter live sound experience in which the live rig is a complete, intelligent ecosystem rather than merely a linear combination of components.

    StageScape automatically recognizes which loudspeakers are being used as monitors and routes monitor feeds. Main PA speakers and subwoofers automatically self-configure, pan or sum stereo signals, adjust Smart Speaker modes and perform system-wide optimization.

    Quick Capture sound check

    At the touch of a button, StageScape can record up to 20-seconds to internal memory from any of the inputs. Quick Capture sound check enables you to work on dialing in the perfect sound quickly by looping a recording of the input, whether a drum sound, an acoustic guitar, a vocal, or the entire band.Best of all, with an iPad you can adjust your front-of-house full band mix from the audience while you listen to the sound check playback.

    Fader View:

    With v1.2 software, you now have the choice of alternating between the innovative Stage View and a more traditional Fader View whenever you want. The Fader View emulates the look and feel of a conventional mixer, and can be used to control channel levels, monitor sends, FX returns and outputs. The faders can also control group levels, making it easier to manage high channel counts. Fader View also enables you to mix monitor sends on faders for those "Can I get more me in my monitor?" moments. And when your singers want to hear reverb or delay on their vocals, you can send master effects to their monitors.

    Fader View is available on the StageScape M20d display as well as the StageScape Remote iPad app. For the best of both worlds, you can use Stage View and Fader View together. For example, set StageScape M20d to Stage View and your iPad to Fader View and bank through faders simply by touching icons. It's a faster, more intuitive experience than you get with other digital consoles.

    Artist Presets:

    To help you quickly dial in great live sound, v1.2 software also introduces signal chain presets designed by A-list front-of-house engineers:
    - Brad Madix (Rush) contributes a complete set of rock presets--including kick, snare, bass, guitar and vocal.
    - Daniele Di Giovanni (James Brown, Ray Charles, Dave Grusin, Lee Ritenour, Mike Stern) offers a stereo Jazz Piano preset developed using the Earthworks Piano Mic System.

    How do I get it?

    StageScape M20d v1.2 software is available now at no charge. Visit

    Same Day Music is an authorized dealer of Line 6 products.

    Line 6 StageScape M20d Digital Mixer, 20-Channel Mixer Technical Description


    - 12 high-performance, digitally controlled, auto-sensing mic/line inputs

    - 4 additional auto-sensing line inputs

    - 2 digital streaming inputs direct from computer, USB drive or SD card

    - Stereo line inputs for integrating MP3 players or other sound sources

    - 4 auto-sensing monitor outputs on balanced XLR connectors

    - 2 auto-sensing main outputs on balanced XLR connectors

    - L6 LINK multi-channel digital networking for integrating L6 LINK enabled speaker systems


    - 7-inch full color touchscreen visual mixing environment

    - Remote control capability via one or more iPad or iPad 2 devices, via USB WiFi adapter (sold separately)


    - Multi-channel recording to computer, USB drive or SD card

    - Quick Capture recording to internal memory for sound check


    - Internal 32-bit floating point audio processing

    - Massive DSP power provides parametric EQs, dynamic EQs, compressors, multi-band compressors, gates, delays, limiters and more

    - Multi-band feedback suppression on every mic input

    - 4 stereo master effects engines including reverbs, delays, vocal doubling, and more

    - Virtually unlimited I/O setups, scenes, and channel processing presets
