    Mackie S512 2-Way Passive Loudspeaker (500 Watts, 1x12")

    This product has been discontinued or is no longer sold by SameDayMusic.

    We recommend this product instead:

    Mackie C300z Compact Passive, Unpowered 2-Way Loudspeaker (1x12")


    Designed for optimum performance with Mackie powered mixers and power amps, the C300z is a passive version of Mackie's popular SRM450 portable active loudspeaker. The C300z, an updated version of the current Mackie C300, features an injection-molded composite chassis that is rigid enough to prevent unwanted vibrations and standing waves inside the cabinet, but light enough to keep any touring musician out of traction well into their 70s. > More

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

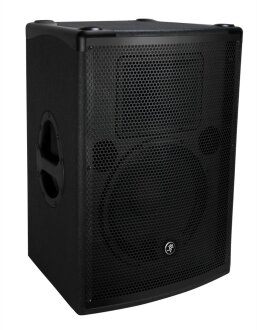

    Mackie S512 2-Way Passive Loudspeaker (500 Watts, 1x12") Product Description

    The Mackie S512 2-Way Passive PA Speaker offers high power handling, rated at a peak of 1000-Watts, from a highly-portable 2-way 12 inch PA speaker cab. The S512 features class leading sound quality and utilizes high-quality components, which include custom-specified drivers and all-wood, touring-quality enclosures.

    S512 enclosures come manufactured from wood which, aside from being sturdy and all-natural, provides the best-possible response, extended low-frequency output without annoying rattles or vibrations. Plus, substantial internal bracing provides a more rigid enclosure, reducing nasty vibrations that could negatively affect sound quality.

    Lastly, the entire acoustic chamber on S512 is air-displaced with adiabatic acoustic batting. This dampens internal midrange reflections so they can't bleed back through the LF transducer cone and reach your ears, which causes inferior enclosures to sound 'boxy'. This, along with LF porting, also allows Mackie S512 enclosures to deliver huge sound in a more compact design than otherwise possible.


    - 1000 Watts peak
    - 12 inch woofer / 1 inch HF driver
    - Rugged, professional PVC vinyl covered wood enclosures with protective edge bumpers
    - Wide-dispersion 90-degree x 50-degree high-frequency horn
    - HF protection circuitry reduces high-frequency output to protect against driver damage
    - NL4 and 1/4 inch input and thru connections for connecting multiple units on a single amp channel

    Same Day Music is an authorized dealer of Mackie products.

    Mackie S512 2-Way Passive Loudspeaker (500 Watts, 1x12") Technical Description

    - Frequency Range (-10 dB): 49 Hz - 18 kHz
    - Horizontal Coverage Angle: 90-degrees
    - Vertical Coverage Angle: 50-degrees
    - Sensitivity (1W @ 1m): 99.9 dB SPL
    - Nominal Impedance: 8 ohms
    - Power Handling:
    - 250 watts continuous
    - 500 watts program
    - 1000 watts peak
    - Crossover Frequency: 3600 Hz
    - Transducers:
    - Low Frequency: 12 inch / 305 mm woofer, vented
    - High Frequency: 1 inch / 25 mm tweeter
    - Input Connectors:
    - Two 1/4 inch TS jacks
    - Two NL4 jacks, paralleled
    - Enclosure: Wood with textured black PVC vinyl covering
    - Dimensions (H x W x D): 25.6- x 17.8- x 15.6-inches
    - Weight: 49 lbs.
    - Mounting: Pole-mountable

    Same Day Music is an authorized dealer of Mackie products.
