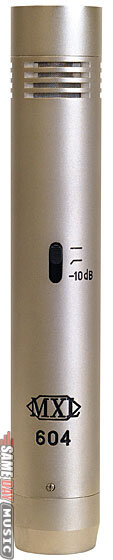

    MXL 604 Condenser Microphone, Small Diaphragm (Cardioid)

    Cardioid polar pattern. Pad and roll-off switches.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 8.6 Out of 10 (2 ratings)

    MXL 604 Small Diaphragm Condenser Microphone Product Description

    Using transformerless FET circuitry and a 20mm gold diaphragm capsule design, The 604 delivers the dynamic range required in the most demanding instrument miking applications. It features; -10 dB switchable attenuation; selectable low-frequency roll-off; and an interchangeable omnidirectional capsule, making the 604 perfect for acoustic guitar, ambient and overhead drum miking. The 604 exhibits low-noise characteristics with a wide dynamic range.

    Same Day Music is an authorized dealer of MXL products.

    MXL 604 Technical Description

    - Type: Condenser pressure gradient mic with large 20 mm diaphragm
    - Frequency range: 30Hz-20kHz
    - Polar pattern: cardioid
    - Sensitivity: 15mV/Pa
    - Impedance: 150W
    - S/N ratio: 77dB (Ref. 1Pa A-weighted)
    - Equivalent noise level: 17dB (A weighted IEC 268-4)
    - Max SPL for 0.5% THD: 137dB
    - Power requirements: phantom power 48V +/- 4V
    - Size: 22mm x 133mm
    - Weight: 0.3lb
    - Metal finish: silver

    Same Day Music is an authorized dealer of MXL products.
