    Ortofon Concorde S120 DJ Turntable Cartridge

    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 209-4F8X

    Web Item #ORTCCS120TWIN

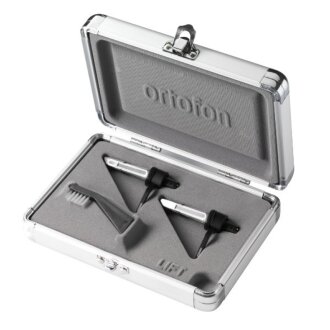

    Ortofon Concorde S120 DJ Cartridge

    More Resources

    Ortofon Warranty: If you have additional warranty questions, please call the manufacturer at 914-762-8646
    In Stock | Will Ship Today
    • 2 Day: $4
    • Overnight: $16
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    This item cannot be returned once opened due to the possibility that it has been used.

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Ortofon Concorde S120 DJ Turntable Cartridge Product Description

    The Ortofon-Serato S-120 represents a completely different way of designing cartridges. An innovative technology, called asymmetric suspension, takes the cartridge performance to the next level. Its superior tracking ensures the S-120 stays in the groove even under extreme live performance conditions. In addition, its design achieves an unprecedentedly low level of record wear, which helps protect your valuable vinyl. On top of this, the S-120 is capable of providing a level of sound quality never thought possible from a modern DJ cartridge.


    - The best tracking performance for scratching and turntablism
    - Horizontal tracking ability tops 120m
    - Vinyl wear reduced to an absolute minimum
    - Absolute flexibility in all settings
    - Elimination of setup and calibration requirements
    - Unprecedented level of sound quality

    Same Day Music is an authorized dealer of Ortofon products.

    Ortofon Concorde S120 DJ Turntable Cartridge Technical Description

    - Output voltage at 1000 Hz, 5 cm/sec.: 10 mV
    - Channel balance at 1 kHz: 1,5 dB
    - Channel separation at 1 kHz: 20 dB
    - Channel separation at 15 kHz: 15 dB
    - Frequency range at -3 dB: 20-18.000 Hz
    - Frequency response: 20-18.000 Hz +3 dB/-2dB
    - Tracking ability at 315 Hz at recommended tracking force: 120 um
    - Compliance, dynamic, lateral: 11 um/mN
    - Stylus type: Spherical
    - Stylus tip radius: R 18 um
    - Tracking force range: 1,5 - 10,0 g (15 - 100 mN)
    - Tracking force recommended: 4,0 g (40 mN)
    - Internal impedance, DC resistance: 1680 ohm
    - Internal inductance: 920 mH
    - Recommended load resistance: 47 kOhm
    - Recommended load capacitance: 200-600 pF
    - Cartridge weight: 18,5 g
    - Replacement stylus unit: S-120

    Same Day Music is an authorized dealer of Ortofon products.
    Shipping Weights and Dimensions
    Shipping Weight: 1 lbs
    Shipping Dimensions: 7 x 5 x 2 in
