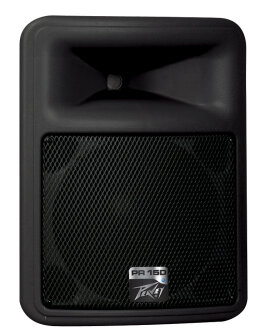

    Peavey PR15D Active Loudspeaker, 1x15 Inch

    Bi-amplified powered system with 200 watts maximum output. Class D Rail Switching Technology.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Peavey PR15D Powered Loudspeaker (1x15") Product Description

    The Peavey PR15D is a powered, bi-amplified, two-way speaker system engineered to provide very high levels of performance in a compact powered loudspeaker. The PR15D is capable of up to 120 dB peak SPL. The enclosure utilizes tough polypropylene in an injection-molded plastic trapezoidal form, with a coated steel grille to offer an attractive yet-durable powered speaker system.

    Peavey PR15D's two-way powered system is comprised of a 150 W class D power amplifier driving a 15 in. heavy duty woofer. The RX(TM)14 compression driver is driven by a 50 W class D power amplifier and features a 1.4 in. titanium diaphragm coupled to an extremely smooth and well-controlled constant directivity horn (with a coverage pattern of 90* by 40*) that is molded integrally into the enclosure. A balanced input to the preamp/EQ electronics consists of one combo female XLR and 1/4 in. TRS phone jack. The PR15D is switchable between mic-level and line-level sensitivity. Two 1/4 in. phone jacks are provided for link-out / direct-in capability. The link-out is post- level and pre-crossover. While the direct-in is a direct pre-crossover input. A woofer servo senses back-EMF from the woofer voice coil that is not a result of the drive signal, and subtracts the error so that the woofer cone follows the drive waveform precisely. Constant Loudness (Fletcher-Munson) circuit for accenuating bass and treble at low listening volume levels.

    The power amplifiers providing the bi-amplification in the Peavey PR15D are low-distortion units providing 150 W continuous RMS into the nominal 8 ohm load of the woofer, and a 50 W continuous RMS into the nominal 8 ohm load of the tweeter. They were selected for their reliability and superb musical performance capability. Both amplifiers feature our patented DDT(TM) compression, which virtually eliminates audible power amplifier clipping. A molded-in handle provides ease of transport, while multiple mounting points (top and bottom) for the Peavey Versamount(TM) allow maximum utility.

    Same Day Music is an authorized dealer of Peavey products.

    Peavey PR 15PD Technical Description

    Bi-amplified powered system with 200 watts maximum output

    Both power amps have DDT compression

    One 15" speaker, 2.375" voice coil woofer

    Woofer servo

    RX 14 1.4" titanium compression driver

    Automatic equal loudness (Fletcher-Munson) compensation

    Combo jack with 1/4" TRS & female XLR mic or line-level balanced input

    Two 1/4" phone jack inputs for link-out/ link-in capability

    Molded-in horn has exceptionally smooth response & pattern control

    Top & side handgrips

    Pole mount molded-in

    Top & bottom flyng point inserts

    Same Day Music is an authorized dealer of Peavey products.
