    Peavey SP12M 2-Way Floor Monitor, 1000 Watts, 1x12 Inch

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 8.4 Out of 10 (3 ratings)

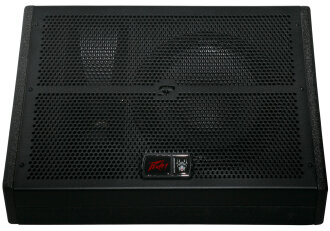

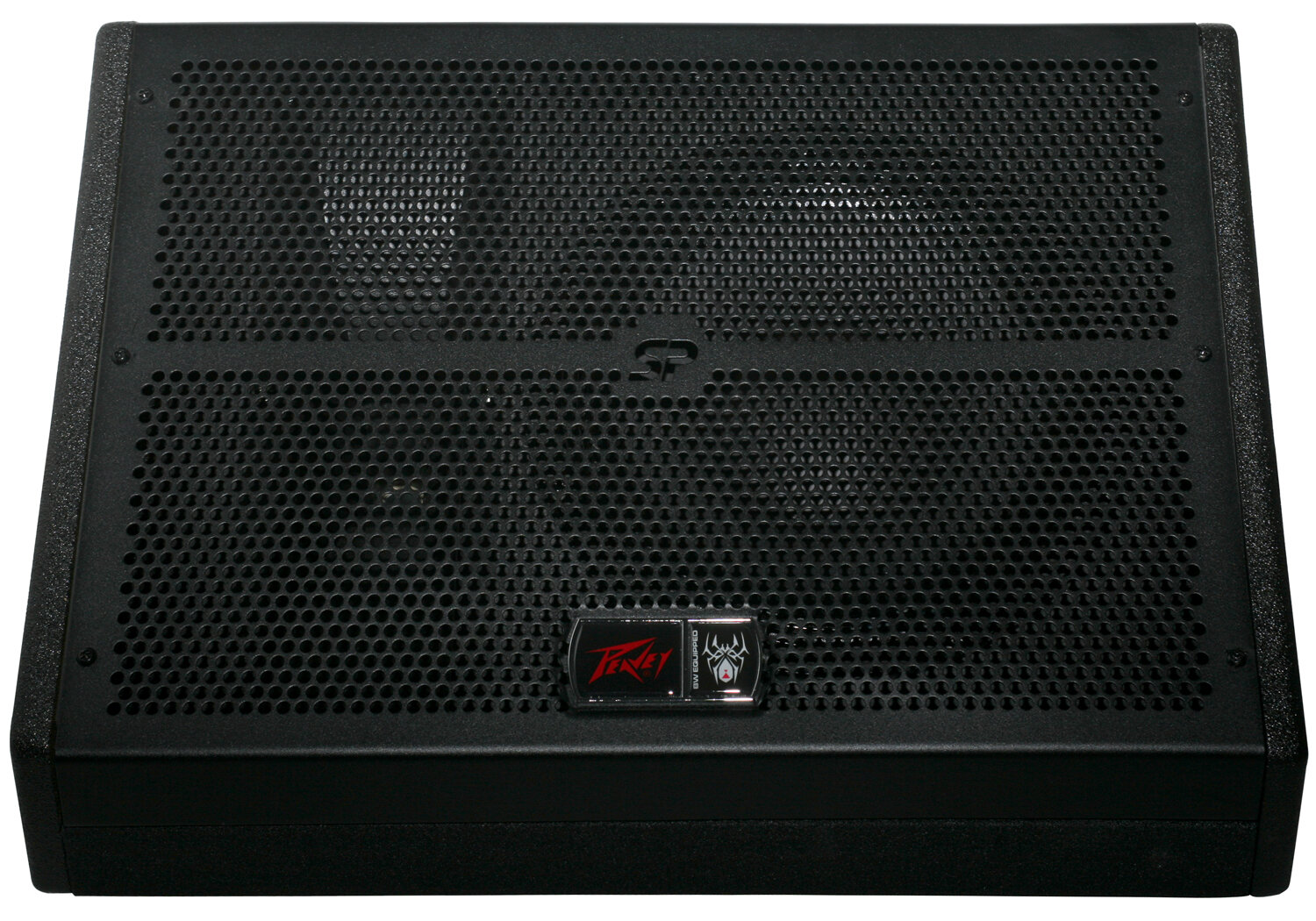

    Peavey SP12M 2-Way Floor Monitor (1000 Watts, 1x12") Product Description

    The SP12M is a two-way floor monitor speaker system comprised of a 12-inch Black Widow spider frame BWX woofer with a Kevlar/carbon fiber impregnated cone and an enclosure made from nine-ply Baltic birch. The thoroughly braced cabinet is covered with a durable black carpet and provided with a heavy duty perforated steel grille with a dark gray powder coating. An SA1 stand mount adapter is built in for side fill or PA use.

    The low frequencies are provided by the 12-inch Black Widow BWX woofer with a Kevlar/carbon fiber impregnated cone and dust cap. Capable of over 500 Watts of continuous power handling (AES Std. 2-1984), the woofer can handle a lot of power, which also results in very low power compression. The high frequencies are handled by a 2 in. Rx 22 titanium diaphram compression driver utilizing ferrofluid cooling. This superb driver is coupled to a constant directivity horn with smooth, even response and good high frequency dispersion. The Rx22 driver features the Radialinear Planar Phase Correction System (US Patent 6,064,745), which provides smoother and extended high frequency response.

    Input connection to the system is made via two 1/4-inch phone jacks and a 4-pin Neutrik in parallel. The internal passive crossover features the Sound Guard III tweeter protection circuit and an advanced topology crossover with high performance components to provide high power handling and reliability. Sound Guard, Peavey's proprietary high-frequency driver protection circuitry, provides long- and medium-term driver overload protection without impairing musical transients or dynamics. The crossover provides driver roll off and protection as well as driver EQ for the woofer and horn for clean, clear, smooth response. High quality, reliable crossover components include polypropylene capacitors and high current inductors. The optimal integration of the crossover with the selected drivers results in a smooth frequency response from 108 Hz to 14 kHz, making it highly appropriate for monitor applications.

    Despite its compact dimensions, this system can put out some very high sound levels and handle 1000 Watts of undistorted amplifier power program, resulting in clean monitoring with high articulation and reliability.

    Same Day Music is an authorized dealer of Peavey products.

    Peavey SP 12M Technical Description

    Frequency Response, 1 meter on-axis, swept-sine in anechoic environment: 108 Hz to 14 kHz (+/- 3dB)

    Usable low frequency limit (-10dB point): 77 Hz

    Power handling, Full range:
    500 Watts continuous
    1000 Watts program
    2000 Watts peak

    Sound Pressure Level, 1 Watt, 1 meter, in anechoic environment, full range: 98dB SPL (2.83 V input)

    Maximum Sound Pressure Level (1 meter,) Full Range:
    125dB SPL continuous
    131dB SPL peak

    Radiation Angle measured at -6dB point of polar response:
    40 degrees horizontal by 90 degrees vertical

    Transducer Complement:
    Low frequency section:
    One 12 in. woofer, vented, 1208-8 HE SF BWX
    High frequency section:
    One .875 in. exit/ 51 mm voice coil, Rx 22 compression driver on a CD horn

    Box tuning frequency, low frequency section: 73 Hz

    Crossover frequency (internal passive): Low frequency - high frequency: 1700 Hz

    Impedance (2), full range:
    Nominal: 8.0 ohms
    Minimum: 6.4 ohms

    Input connections, Full range:
    Two 1/4 in. phone jacks
    One Neutrik Speakon four-pin jack

    Enclosure materials and finish:
    Nine-ply Baltic birch plywood
    Finished in black carpet

    Mounting provisions: This unit is not designed for overhead suspension. SA-1 stand mount adapter incorporated and 8 rubber feet on 2 sides for dual angle use.

    Dimensions (H x W x D):
    45 degree baffle orientation: 15.25 x 22.25 x 17.75 in. (387 x 565 x 451 mm)
    30 degree baffle orientation: 15.63 x 22.25 x 17.00 in. (397 x 565 x 432 mm)

    Net Weight: 48 lbs. (21.8 kg)

    Same Day Music is an authorized dealer of Peavey products.

    User Reviews for Peavey SP12M 2-Way Floor Monitor (1000 Watts, 1x12")

    • "They call these monitors. To me that is a definate understatement they coud be your PA. If you need a lower reponse add it. But" - Read More
