    Phonic PAA3 Audio Analyzer, Handheld

    Spectrum Analyzer. Phase Checking. USB Port.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

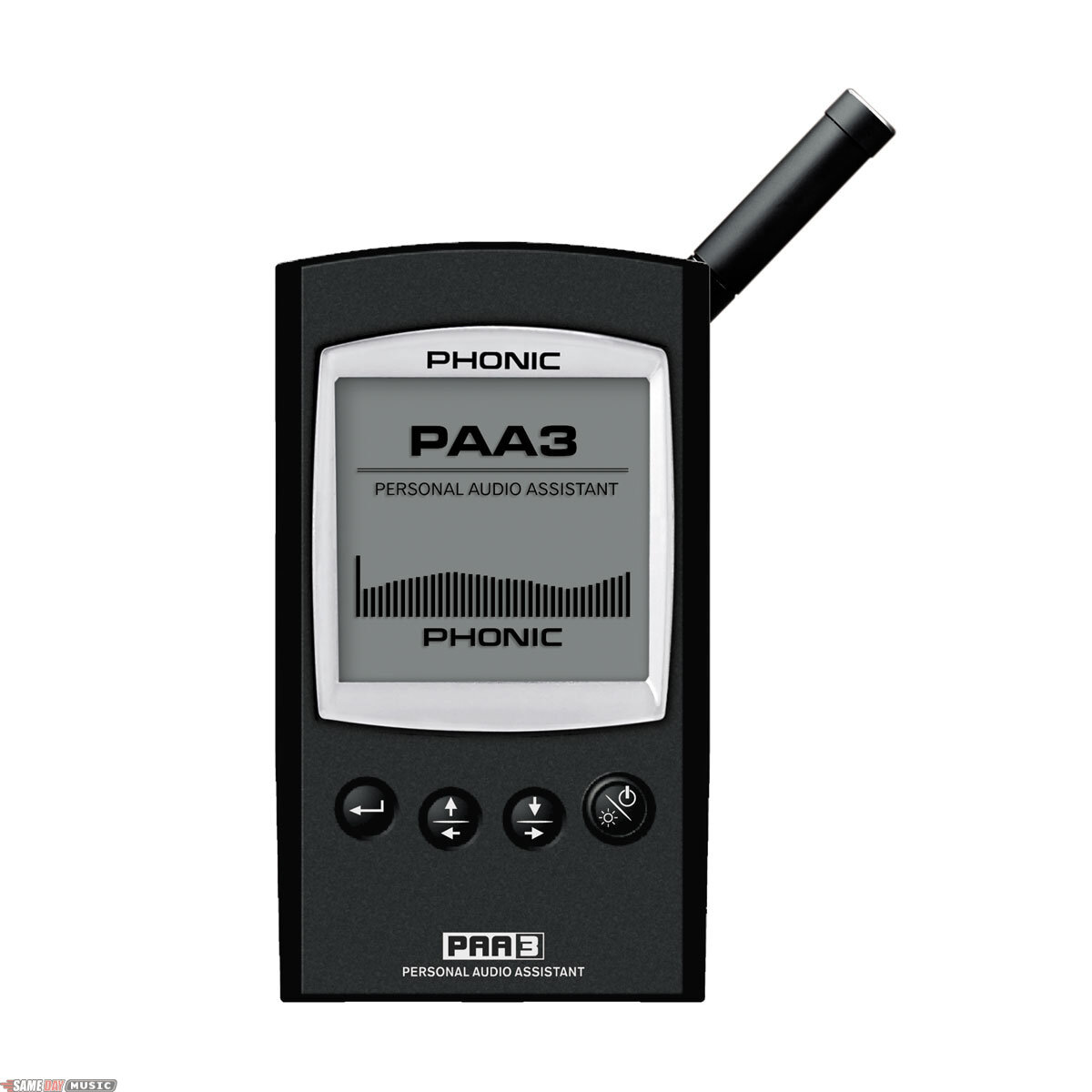

    Phonic PAA3 Handheld Audio Analyzer Product Description

    The Phonic PAA3 is a highly accurate handheld audio analyzer that gives sound engineers a rich array of sound analysis tools. Features include 31-band real time spectrum analysis, RT60, SPL and line meter, internal generator, EQ setting program, microphone calibration and speaker phase checking abilities. All functions and menus can be accessed through a central jog dial, leaving your other hand free to adjust audio settings. Easily upload information and settings to your computer via the built-in USB interface. The large LCD screen has a visible backlight to help you see in a dark performance environment. And with a battery life of 7 hours, the Phonic PAA3 is the multifunctional tool for every serious audio engineer.


    - 31-band Real Time Spectrum Analyzer
    - 31-band EQ setting value display (Boost/Cut)
    - RT60 measurement
    - Built-in calibrated measurement microphone
    - Phase checker
    - Noise generator with pink noise, 1kHz and polarity test signal, balanced output
    - Memory and average calculation function
    - SPL meter calibration through sound level calibrator
    - Sound Pressure Level Meter from 30 dB~130 dB
    - Line signal measurement display in dBu, dBV, or Volts (AC)
    - SPL meter and level meter have three level range selections
    - Maximum level, Peak hold displays
    - XLR input and output sockets
    - USB interface for desktop software control
    - Audio test signal CD and supporting software
    - Three power modes: (1) Power Save (2) On (3) Off
    - Operates seven hours with four AA batteries
    - AC power adapter included

    Same Day Music is an authorized dealer of Phonic products.

    Phonic PAA3 Handheld Audio Analyzer Catalog Description

    Incredible array of analysis tools in a handheld device@31-band real-time analysis and EQ@Phase checker, noise generator, SPL meter@RT60 (reverb time) measurement@USB for use with included control software for PC@Built-in measurement mic; XLR I/O
