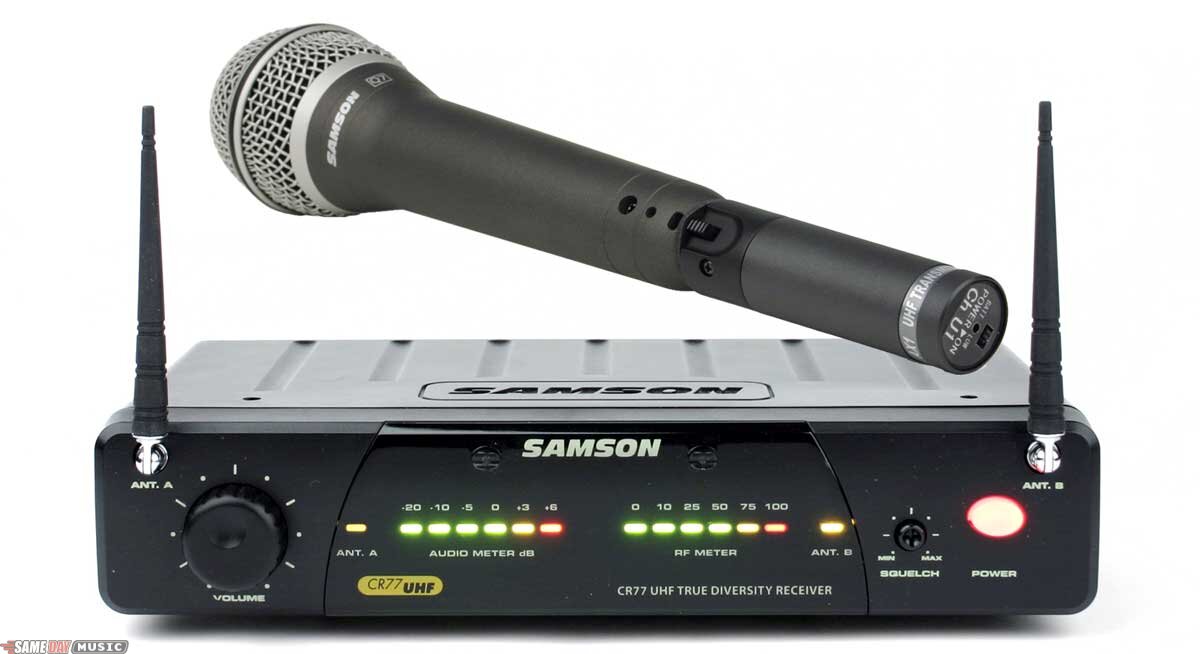

    Samson Airline 77 UHF Wireless System, True Diversity, Q7 Microphone, AX1 Transmitter

    The Samson Airline 77 with Q7 microphone lets you stay mobile and gets rid of all those snare-like wires without compromising clarity.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 10 Out of 10 (2 ratings)

    Samson Airline 77 UHF TD Wireless with AX1 Transmitter and Q7 Handheld Microphone Product Description

    Samson Airline 77 UHF Wireless systems are an unbeatable combination. Samson Concert 77 UHF True Diversity half-rack receivers matched up with Samson's incredible Airline Series mini transmitters give you 'belt-pack-free' mobility at an affordable price. Ultra-light, ultra-compact, and incredibly efficient, Airline Series transmitters provide flawless wireless performance for 12 hours on a single AAA battery.

    For 2 decades Samson has led the world in wireless technology for musicians. Their philosophy: Make cutting-edge technology available to everyone. No system has ever done it like this before: the revolutionary Airline Wireless Systems -- with no belt packs -- at prices everyone can afford.

    CR77 Receiver

    The heart of Airline 77 is the CR77 Receiver. This true-diversity half-rack unit with PLL frequency control works with all of the Airline transmitters. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference.

    AX1 Handheld Transmitter & Q7 Microphone

    Total vocal freedom, with no bulky belt packs. The Airline 77 handheld comes with a Samson Q7 dynamic microphone. The finest Neodymium handheld dynamic microphone Samson makes. Designed for professional-level music performance, there is no application it cannot handle. The super-compact AX1 Handheld Transmitter plugs directly into the XLR jack of the Q7 (or any dynamic mic). So small and light weight, you'll hardly know it's there.

    Consumer Alert
    Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at

    NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

    Same Day Music is an authorized dealer of Samson products.

    Samson Airline 77 UHF Diversity with Q7 Handheld Technical Description

    Channel Frequencies
    Channel N1: 642.375 MHz
    Channel N2: 642.875 MHz
    Channel N3: 644.125 MHz
    Channel N4: 644.750 MHz
    Channel N5: 645.500 MHz
    Channel N6: 645.750 MHz

    Receiver (CR77)
    Type of Reception: Single Superheterodyne, True Diversity

    Oscillation Type: Synthesized PLL Frequency Control

    D-emphasis: 50 mF sec

    IF Frequency: 10.7 MHz

    Antenna: 1/4 Wavelength Rod

    In/Out: DC Inlet, Balanced Output, Unbalanced Output

    Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)

    Level Controls: Volume, Squelch

    Operating Voltage: 12 Volts + 10 %

    Current Consumption: 160 mA (at all LED lights)

    Receiving Frequency Range: 801 - 805 MHz

    Sensitivity: 18 dB mF @ THD 2%

    Squelch Sensitivity: 0 - 40 dB mF (Adjustable)

    Selectivity: +/- 150 kHz (AF Out Ratio -60 dB)

    S/N Ratio (Overall): 90 dB (w/ IHF-A fi lter)

    Residual Noise: 90 dBv (w/ IHF-A fi lter)

    Band Mute: +/- 50 kHz / +/- 100 kHz (RF IN: 46 dBu EMF)

    AF Frequency Response: 50 Hz - 15 kHz (+/- 3 dB overall)

    Audio Output Level - Unbalanced: 0 dBv

    Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch

    Audio Output Impedance/Unbalanced: 5 k Ohms

    Audio Output Impedance/Balanced: 600 Ohms

    Dimensions: 8.5 in. (w) x 1.75 in. (h) x 4.6 in.(d) 216 mm (w) x 44 mm (h) x 116 mm (d)

    Weight: .75 lb / 340 g
