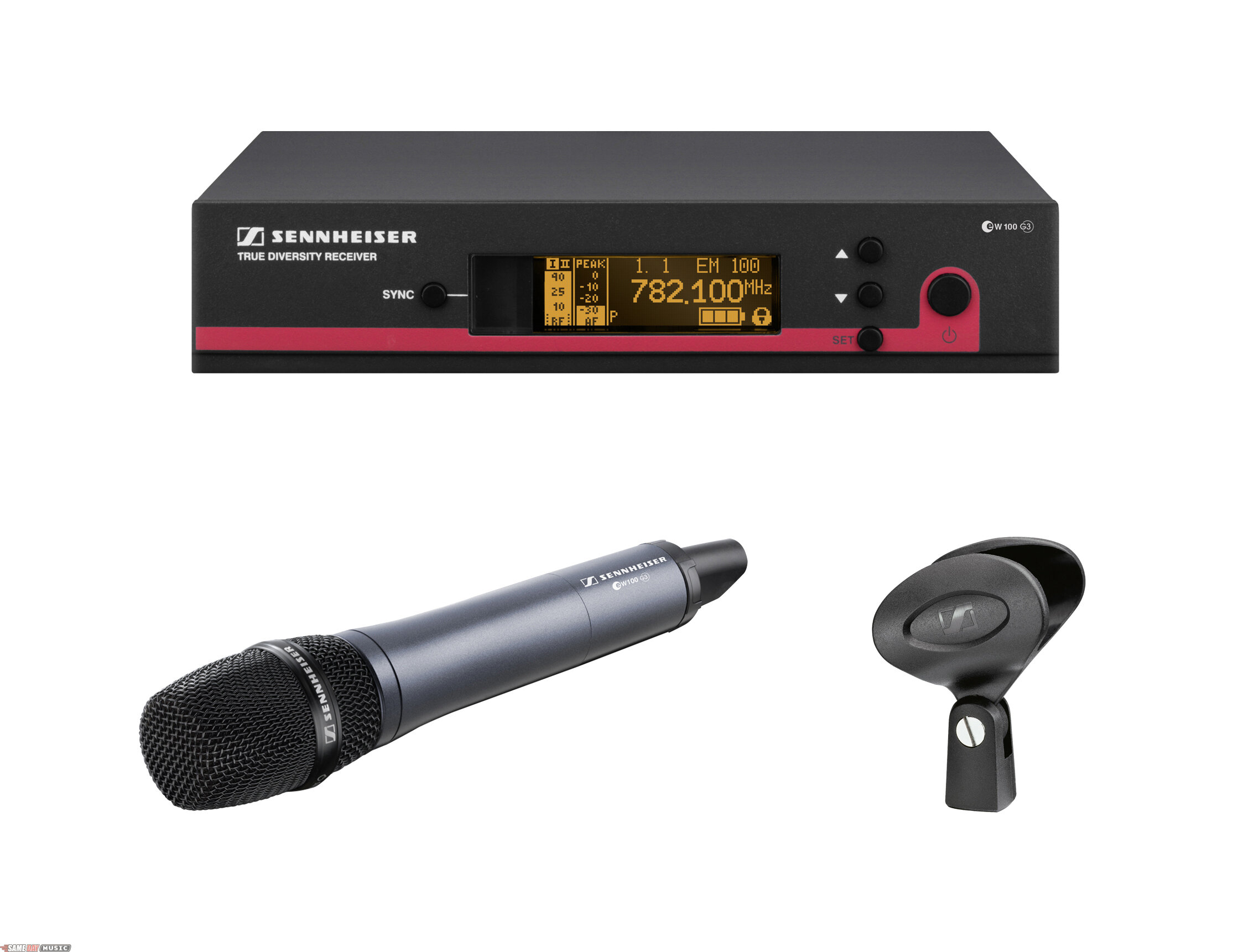

    Sennheiser Evolution G3 100 Series ew145G3 UHF Wireless Handheld System

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Sennheiser EW 145 G3 Handheld Wireless Vocal Microphone Set Product Description

    The supercardioid e845 capsule on the Evolution G3 100 has an extended high frequency response and full dynamic range. Smooth warm tonal response with presence lift for vocal clarity and projection cuts through high on-stage sound levels. Consistent on/off axis and proximity response maintain sound quality while moving, providing greater on-stage freedom.


    - Sturdy metal housing
    - Automatic frequency management for transmitter and receiver
    - Tunable UHF frequencies within a large switching bandwidth
    - Wireless synchronization of transmitters via infrared interface
    - Enhanced frequency bank management with up to 12 compatible frequencies per bank
    - 42 MHz bandwidth with 1680 switchable frequencies
    - Increased range for audio sensitivity
    - Easy-to-read illuminated dot matrix display
    - 4-level charge indicator for transmitter battery
    - More control options (menu)
    - Enhanced AF frequency range
    - Soundcheck mode
    - Integrated equalizer
    - Contacts for recharging the BA 2015 accupack directly in the transmitter
    - 2 AA batteries for more than 8 hours of use
    - HDX compander for crystal-clear sound
    - True diversity receiver for optimum reception
    - High RF output power for large range
    - Suitable for 19 inch rack mounting (1 U)
    - Includes handheld transmitter with e845 capsule and rack mountable receiver

    Consumer Alert
    This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee's wireless operations on these frequencies. For more information, visit the FCC's wireless microphone website at or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).

    For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at

    NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

    Same Day Music is an authorized dealer of Sennheiser products.

    Sennheiser ew145G3 Evolution G3 Handheld Wireless Technical Description

    - Modulation: Broadband FM
    - Frequency Ranges (MHz): 516 - 558 (A), 566 - 608 (G), 626 - 668 (B)
    - Switching bandwidth: 42 MHz
    - Frequency Banks: 20 (fixed), 1 (rewritable)
    - Maximum # or presets per bank: 12
    - Pilot tone squelch: as ew G2, switchable
    - Compander: HDX, compatible with ew G2 and ew G1

    Sennheiser Evolution G3 100 Receiver
    - Principle: True Diversity
    - Sensitivity (52dBAeff S/N: < 2.5 uV
    - Adjacent channel rejection: greater than or equal to 65 dB
    - Intermodulation rejection: greater than or equal to 65 dB
    - Blocking: greater than or equal to 70 dB
    - Squelch: Lo: 5 dBuV, MID: 15 dBuV, Hi: 25 dBuV
    - Antenna inputs: 2 x BNC / 50 ohms
    - S/N: greater than or equal to 110 dB
    - AF Frequency response: 80-18,000 Hz

    AF outputs: 1/4 inch jack: +12 dBu (unbal.), XLR: +18 dBu + 6 dB gain (bal.)
    AF gain range: 48 dB (3 dB steps)
    - EQ presets: Flat, LoCut (-3 dB / 180 Hz), HiBoost (+6 dB / 10 kHz), LoCut/HiBoost
    - Temperature Range: -10*C - +55*C
    - Power Supply: NT 2-3
    - Nominal voltage: 12 V DC
    - Current comsumption: 300 mA
    - Operation time (batteries, BA2015 accupack): typically 8 hrs
    - Dimensions (BxHxT): 212 x 43 x 190mm
    - Weight: approximately 900 grams

    Sennheiser Evolution G3 100 Transmitter
    - RF Output power: 30 mW
    - Antenna output: short antenna (SK)
    - AF frequency response: 80 - 18,000 Hz
    - AF Sensitivity range: 48 dB / 6 dB steps
    - THD: less than or equal to 0.9 per cent
    - Maximum input voltage: +12 dBu
    - Input impedance: 1 M ohms
    - Input capacity: 4 steps, switchable
    - Temperature range: -10C - +55C
    - Power Supply: 2 x AA batteries, 1.5V
    - Nominal Voltage: 2.4 V DC
    - Current Consumption: typically 180 mA (30 mW)
    - Operation time (batteries/BA2015): typically 8 hours
    - Dimensions: 50 x 265 mm
    - Weight (including batteries): approximately 450 grams

    Same Day Music is an authorized dealer of Sennheiser products.
