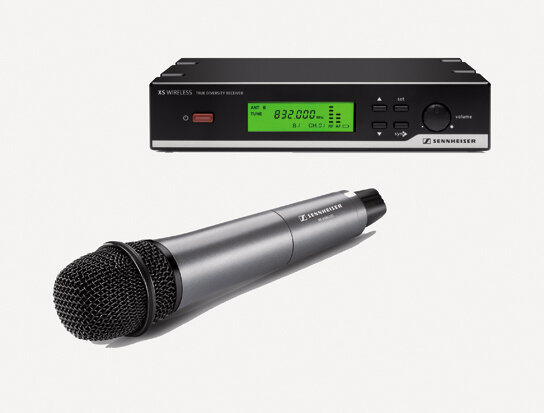

    Sennheiser XSW 65 Handheld Wireless Microphone Vocal Set

    This product has been discontinued or is no longer sold by SameDayMusic.

    We recommend this product instead:

    Sennheiser XSW2-865 Wireless Vocal Condenser Microphone System



    Part of the XS Wireless 2 series, the Sennheiser XSW2-865 vocal set is an easy-to-use, all-in-one wireless system for singers and presenters, featuring Sennheiser's renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included. > More

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Sennheiser XSW 65 Handheld Wireless Microphone Vocal Set Product Description

    Rugged, reliable and easy-to-use, XS Wireless delivers renowned Sennheiser sound to small venues, conference rooms or houses of worship. The XSW 65 Vocal Set captures every detail of your performance with a pre-polarized, supercardioid condenser capsule. An all-metal True Diversity receiver offers 960 tunable frequencies, with powerful scan and sync functions for up to 10 hours of trouble-free operation.


    - True Diversity reception for worry-free operation
    - 24 MHz switching bandwidth
    - 960 available frequencies, tunable in 25 kHz steps
    - 8 frequency banks containing 12 coordinated channels each
    - Powerful scan function identifies available channels within a bank
    - Component synchronization at a distance with "Remote Channel" sync
    - Up to 10 hours of operation with (2) AA batteries
    - Up to 250 feet of transmission range
    - Illuminated audio mute button on transmitters
    - Balanced (XLR) and unbalanced (1/4") outputs
    - 2 frequency ranges: A (548-572 MHz) and B (614-638 MHz)

    Set Includes:

    - (1) SKM 65 handheld transmitter
    - (1) EM 10 true diversity receiver
    - (1) NT 2-3 power supply
    - (1) MZQ1 mic clip
    - (2) rod antennas
    - (2) AA batteries
    - (1) Pouch
    - (1) Instruction manual

    Consumer Alert
    Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at

    NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

    Same Day Music is an authorized dealer of Sennheiser products.

    Sennheiser XSW65 Handheld Wireless Microphone Vocal Set Technical Description


    Modulation: Wideband FM
    Frequency range:
    - A: 548-572 MHz
    - B: 614-636 MHz
    Switching bandwidth: 24 MHz
    Frequencies: 960, tunable in 25 kHz steps
    Frequency presets: 8 frequency banks, each with 12 coordinated factory-preset channels
    Signal-to-noise ratio: = 103 dBa
    Total harmonic distortion (THD) : = 1%
    Temperature range: 32 degrees F to 104 degrees F (0 degrees C to +40 degrees C)

    EM 10 Receiver:

    Receiver principle: True Diversity
    Sensitivity (at peak deviation) : < 3 micro V at 52 dBarms S/N
    Adjacent channel rejection: = 60 dB
    Intermodulation rejection: = 50 dB
    Blocking: = 65 dB
    AF frequency response: 60 Hz - 16 kHz
    Pilot tone: 32.768 kHz
    Antenna input: 2 BNC connectors, 50o
    AF output voltage (at peak dev., 1 kHz AF):
    - XLR (balanced): +14 dBu
    - 1/4" (unbalanced): +8 dBu
    Power supply: 12 VDC nom. / 300 mA
    Dimensions: 7.9 x 1.7 x 5" (200 x 42 x 127 mm)
    Weight: 1.6 lbs. (730 g)
    FCC ID: DMOXSWEM (for 2.4 GHz synchronization link)

    SKM65 Handheld Transmitter:

    RF Output Power: 10mW
    AF Frequency response: 80 Hz-16 kHz
    Power Supply: (2) AA batteries, 1.5V
    Operating time: Approximately 10 hours
    Dimensions: 9.8 x 2.1"
    Weight: 8.5 oz.
    Microphone type: Pre-polarized condenser
    Input sensitivity: 1.8 mV/Pa
    Pickup pattern: Supercardioid
    Maximum SPL: 144 dB SPL

    Same Day Music is an authorized dealer of Sennheiser products.
