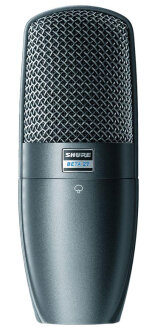

    Shure Beta 27 Side-Address Condenser Microphone (Super-Cardioid)

    Side address condenser microphone. Frequency Response: 20 to 20,000 Hz. Polar Pattern: Supercardioid. 48v DC phantom power required.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Shure Beta 27 Condenser Microphone Product Description

    The Shure Beta 27 is a side address condenser microphone that is precision engineered for professional sound reinforcement and project studio recording applications. Its flat frequency response and low self noise provide unerring performance in demanding environments. A tight supercardioid pattern insures high gain before-feedback, maximum isolation from other sound sources.

    - Supercardioid polar pattern specifically targets the sound source consistently with greatly minimized bleed from off-axis sound sources

    - Tailored for superior transient response from a low-mass, 1 inch externally-biased, ultra-thin 24 Karat gold-layered Mylar diaphragm.

    - Flat, neutral frequency response for natural reproduction on stage or in the studio

    - 3-position switchable low-frequency filter helps reduce unwanted background noise or counteract proximity effect for consistent, extended low-end

    - -15 dB switchable attenuator handles extremely high SPLs with ease

    - Premium electronic components and gold-plated internal and external connectors

    - Internal pop filter with three separate mesh layers reduces wind and breath noise.

    Same Day Music is an authorized dealer of Shure products.

    Shure Beta 27 Technical Description

    Type: Condenser (externally biased)

    Frequency Response: 20 to 20,000 Hz

    Polar Pattern: Supercardioid

    Impedance: 160 Ohm

    Sensitivity (at 1 kHz, open circuit voltage):
    - -37 dBV/Pa
    - 1 Pascal=94 dB SPL

    Maximum SPL (1 kHz at 1% THD):
    - 1000 Ohm load: 134 dB (148 dB, Pad on)
    - 2500 Ohm load: 140 dB (154 dB, Pad on)

    Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz):
    - 85.5 dB
    - S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted

    Dynamic Range (at 1 kHz):
    - 1000 Ohm load: 125.5 dB
    - 2500 Ohm load: 131.5 dB

    Common Mode Rejection (20 Hz to 20 kHz): > 50 dB

    Clipping Level (20Hz-20 kHz at 1% THD):
    - 1000 Ohm load: 2.0 dBV
    - 2500 Ohm load: 8.5 dBV
    - THD of microphone preamplifier when applied input signal is equivalent to cartridge output at specified SPL

    Self-Noise (typical, equivalent SPL, A-weighted): 8.5 dB

    Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

    Weight: Net: 428 g (15.1 oz.)

    - Attenuator: -15 dB
    - Low Frequency Response: flat; -6 dB/octave below 115 Hz; -18 dB/octave below 80 Hz

    Connector: Three-pin professional audio (XLR), male

    Power Requirements: 48v DC phantom, 5.6 mA

    Same Day Music is an authorized dealer of Shure products.
