    Stanton RM416 Rackmount DJ Mixer, 4-Channel

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

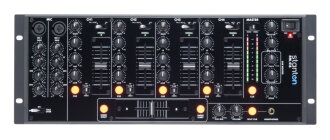

    Stanton RM416 Rackmount DJ Mixer, 4-Channel Product Description

    The RM.416 is Stanton's next addition to the RM (Rack Mount) series of mixers. With four traditional channels coupled with three microphone inputs the RM.416 is a perfect mixer for the most demanding mobile or club DJ. In addition to a vast array of traditional connectivity the RM features a USB connection for either playing music from your favorite DJ application or recording your mix in real time. Additionally the RM.416 features a subwoofer output with built-in crossover control minimizing the need for an external crossover while maintaining the ability to adjust the output to perfectly match your sound system. All of these features are packed into a 4 space rack unit with rugged metal inner chassis ensuring that the components are protected from damage and maintaining a consistent feel through the long life of the product.


    - 4 Channel 19 in. rackmount mixer Soft power on/off for silent operation
    - 2 Front panel microphone inputs with Gain and 3-band EQ
    - USB connection for recording to or playback from a computer
    - 3 Band EQ per channel (-26 dB to +10 dB)
    - Subwoofer output with gain and crossover (40Hz-200Hz) control
    - VCA crossfader reduces noise and improves life of fader
    - User replaceable crossfader and linefaders
    - Balanced XLR master output with trim control
    - Balanced 1/4 in. zone output (Booth/Aux out)
    - 3 Microphone, 8 stereo line, and 3 stereo phono/line switchable inputs
    - Talkover control for front panel microphone inputs A / B / Bypass crossfader assign per channel Signal indicator for each channel
    - 10 segment LED metering for master output Versatile cueing section with cue/master mix control
    - Illuminated CUE and Fader Start buttons
    - Unbalanced Stereo RCA record output
    - Internal power supply (AC 110-240V switchable)
    - Fader start control for triggering external CD players with crossfader
    - Mono / Stereo switch for master output

    Same Day Music is an authorized dealer of Stanton products.

    Stanton RM416 Rackmount DJ Mixer, 4-Channel Technical Description

    - Input / Output Impedance & Sensitivity:
    - Frequency Response: 20 Hz to 20 kHz +2/-3 dB
    - THD+N (line) : < 0.05% at 20 Hz to 20 kHz
    - S/N Ratio: Line (ref to Max. Level) Dynamic Range -80 dBV
    - Crosstalk (Channel to Channel) : > 70 dB at 1kHz
    - Fader Kill Crossfader: < -75 dB at 1 kHz
    - Channel fader: < -75 dB at 1 kHz
    - Mic Talkover: -14 dB
    - Channel EQ 3 band type:
    - Hi: +10, -26 dB
    - Mid: +10, -26 dB
    - Low: +10, -26 dB
    - Mic EQ 3 band type:
    - Hi: +12, -12 dB
    - Mid: +12, -12 dB
    - Low: +12, -12 dB
    - Fader Start: 2 (1/8 in.) Control outputs
    - Line Inputs: x16 (RCA) x8 Stereo Line inputs (3 switchable from phono), -14 dBV / 20 k ohm
    - Phono Inputs: x6 (RCA) x3 Stereo Phono inputs, -50 dBV / 47 k ohm
    - Mic Inputs: x2 (XLR) Mic inputs, -54 dBV / 10 k ohm x1 (1/4 in.) Mic input, -54 dBV / 10 k ohm
    - Master Outputs: x2 (XLR) Stereo Balanced output, +4 dBm / 600 ohm x2 (RCA) Stereo Unbalanced output, 0 dB / 300 ohm 0 dB - Kill trim control
    - Subwoofer Output: x2 (1/4 in.) Mono Balanced output, +2 dBm / 600 ohm 40 Hz - 200 Hz LP Filter Control
    - Zone Output: x2 (1/4 in.) Stereo Balanced output, +4 dBm / 600 ohm
    - Headphone Output: x1 (1/4 in.) Stereo Headphone output, +9.5 dBV /33 ohm
    - Record Output: X2 (RCA) Stereo Unbalanced output, -10 dBV / 1 k ohm
    - USB:
    - x2 Stereo channels output (routed to CH4)
    - x2 Stereo input (from master bus)
    - WDM / CoreAudio Class Compliant

    Same Day Music is an authorized dealer of Stanton products.
