    Tascam DR-680 8-Track Portable Digital Recorder, High-Resolution

    8-track portable recording. Up to 96kHz/24-bit Broadcast WAV file resolution for 8 channels. Stereo 192kHz/24-bit recording mode. Records to SD/SDHC card media (not included).

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

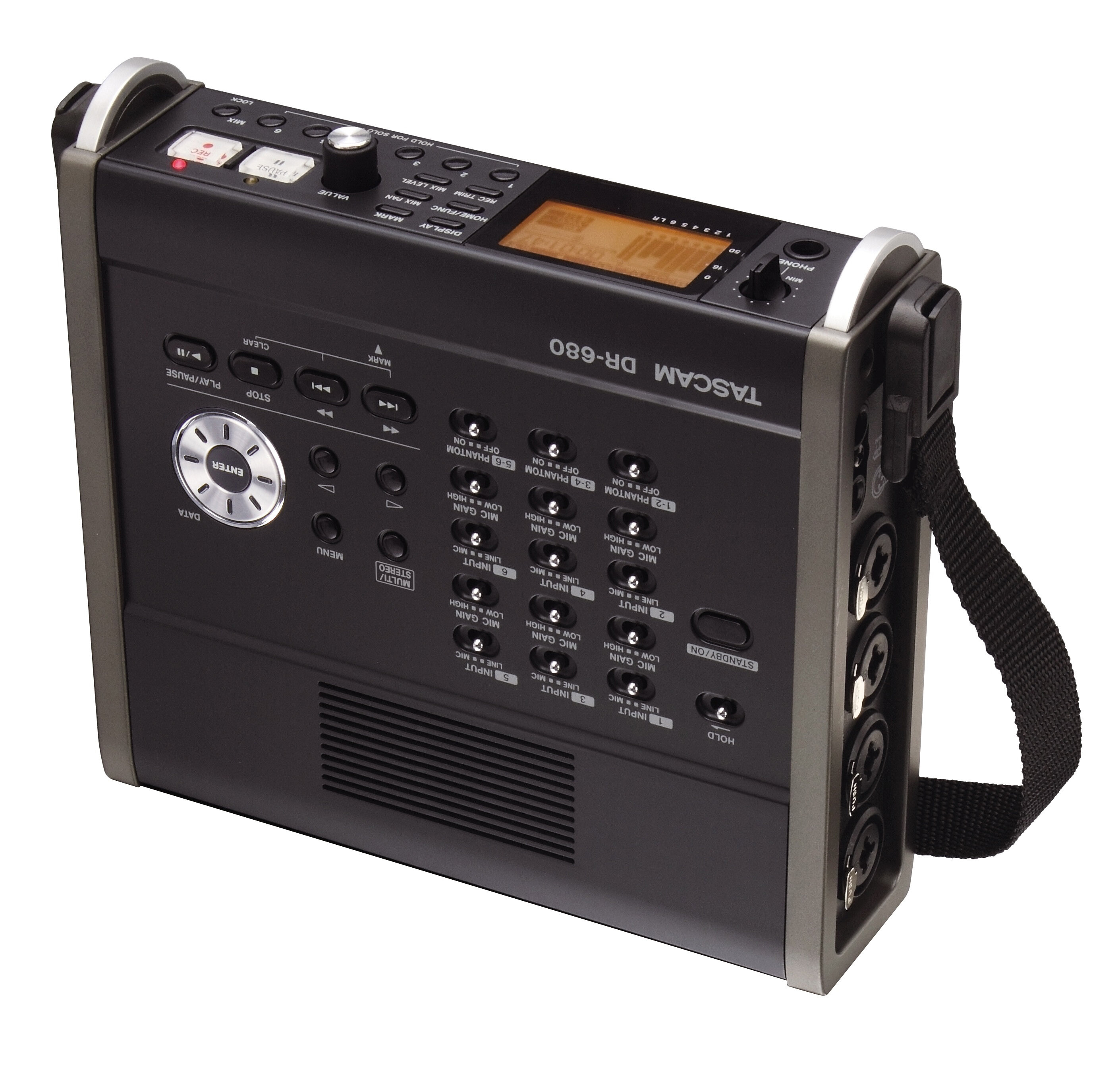

    Tascam DR680 8-Track High-Resolution Portable Recorder Product Description

    Tascam's DR-680 brings multi-channel portable recording within reach of any musician for polished live, location and surround recordings. Up to eight tracks can be recorded to solid-state SD card media at 96kHz/24-bit Broadcast WAV quality. Six mic inputs provide phantom power and 60dB of gain for great-sounding recordings with your condenser microphones. Record the six microphones along with a digital S/PDIF source for 8 track recording. Each mic input has a selectable low cut filter and analog limiter for optimal sound.


    - 8-track portable recording
    - Record eight individual inputs or six inputs plus a stereo mixdown
    - Up to 96kHz/24-bit Broadcast WAV file resolution for 8 channels
    - Stereo 192kHz/24-bit recording mode
    - 4-channel MP3 recording
    - Digital monitor mixing (level and pan) with recordable stereo mixdown
    - Ideal for surround music and effects recording
    - Cascade function for running two units together
    - Pre-recording feature
    - Auto-recording mode begins recording when the input reaches a certain level
    - Mark function during recording/playback
    - Edit functions such as divide and delete
    - 128x64 backlit LCD display
    - Powered through (8x) AA batteries or (included) PS-1225L adapter
    - Records to SD/SDHC card media (not included)
    - Premium AKM Audio4Pro(TM) 192kHz A/D converters with over 100dB signal to noise ratio

    Inputs can be monitored using a built-in mixer with level and pan controls for each input. The stereo mixdown can even be recorded along with the six mics for quick stereo playback of the event. There's even a built-in speaker to check recordings without headphones.

    In addition to WAV recording up to 96kHz, the DR-680 captures stereo audio at 192kHz/24-bit for audiophile-quality masters. The DR-680 records up to four channels of MP3 audio for web-ready recordings. Two of the recorders can be connected with a cascade cable for up to 14-track recording on battery power.

    Multi-channel portable recording has never been as simple or affordable as the Tascam DR-680.

    The optional, weather-resistant CS-DR680 case prepares your DR-680 for recording in the field, with velcro straps that reveal only what's needed during recording

    If you don't need 8 channels, take a look at the DR-100 with its two sets of built-in microphones.

    Also available from Tascam, the HS-P82 offers multi-channel recording with timecode, more recording tracks, color touch screen interface, multi-channel digital I/O and more.

    Same Day Music is an authorized dealer of Tascam products.

    Tascam DR680 Technical Description

    - (6) mic pres with 60dB of gain and phantom power
    - (4) XLR/1/4" (combi) mic/line inputs and (2) TRS 1/4" mic/line inputs
    - Low cut filter and limiter on each input
    - (6) RCA unbalanced line outputs
    - S/PDIF digital in and out
    - USB 2.0 (mini B) connection for computer
    - Built-in speaker
    - 1/4" stereo headphone output
    - Included accessories: PS-1225L power supply, shoulder strap
    - Dimensions: 7.95" W x 2.12" H x 6.93" D (202mm x 54mm x 176mm)
    - Weight 2.65 lbs (1.2kg) without batteries

    Same Day Music is an authorized dealer of Tascam products.
