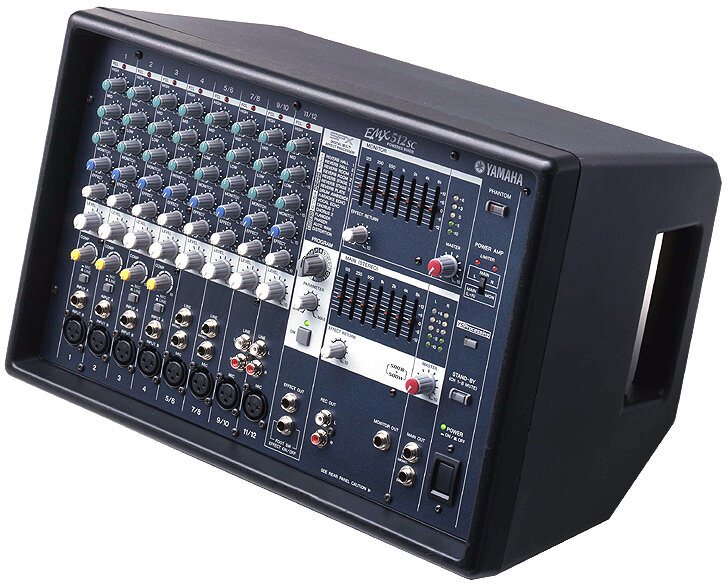

    Yamaha EMX512SC 2x500 Watt Powered Mixer

    Put your PA in good hands with Yamaha's EMX512SC. With 12 inputs, compression on mono channels, and 16 SPX effects, you'll be surprised by what it can do.

    This product has been discontinued or is no longer sold by SameDayMusic.

    We recommend this product instead:

    Yamaha EMX5 Powered Mixer


    The Yamaha EMX5 features a high-efficiency power amp capable of 630W output power, and comes equipped with an overload protection function to improve reliability. A rugged, extremely portable enclosure with a powder-coated, impact resistant metal chassis adds to the console's durability while its versatile design easily adapts to horizontal or vertical placements in a variety of configurations. > More

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 9.4 Out of 10 (10 ratings)

    Yamaha EMX512SC Powered Mixer with Effects (2x500 Watts) Product Description

    For larger venues and audiences, or if you plan to use it for outdoor sound, the Yamaha EMX512SC with a pair of whopping 500-watt amplifiers to ensure that your music or message comes across with full impact.

    Superior Live Sound

    Experienced musicians, performers, speakers, and club operators know the importance of a high-quality sound system with the right features and performance to deliver their sound. Where portability and convenience are important criteria, a system based on a high-performance Yamaha EMX512SC powered mixer is definitely the way to go. In one integrated, portable unit you have a mixer to combine and balance your microphone, instrument, and line sources, effects to refine and polish your sound, and power to drive the main speakers and even monitor speakers as well. But that's nowhere near the whole story - Yamaha EMX512SC Powered Mixers offer a range of features that let you mix, process, and deliver your sound with maximum quality and creative control ... and, of course, that unrivaled Yamaha sound.

    Great Yamaha Sound

    Yamaha is a leader in the field of professional live sound for a very good reason: they deliver the sound and performance that the pros demand. The Yamaha EMX512SC powered mixers are no exception. They're built at the same standards of sonic performance and rugged reliability that makes Yamaha the first choice for live sound applications from schools to stadiums around the globe.

    One-knob Compression on Mono Channels

    All four monaural mic/line channels on the Yamaha EMX512SC features built-in compressors that can help to bring vocals to the front of the mix, give your guitars extra smoothness and presence, deliver more authoritative bass sound, and generally refine your mixes in a multitude of ways. These one-knob compressors are simple to use, too. There's no need to juggle multiple attack, threshold, makeup gain, and other controls - just set the Comp control for the amount of compression you need.

    SPX Digital Effects

    The Yamaha EMX512SC features a selection of 16 top-quality Yamaha SPX effects - including reverb, echo, chorus, flanger, phaser, and even distortion - that can add the final touch to your live presentation. Yamaha SPX digital effects are widely recognized as being some of the finest available, and the effects provided in the EMX mixers live up to that reputation.


    Graphic equalizers are provided for both the main and monitor channels, so you can effectively control feedback or tailor the sound to match the room and program material.

    Stand-by Mode

    When you're done with a set simply engage the stand-by mode to mute all mono channels while leaving the 2-track inputs active for background music playback while you're taking your break.

    Feedback Channel Locating (FCL) System

    FCL System indicator LEDs at the top of each channel light if the corresponding channel goes into feedback, so you won't have to fumble around searching for the channel that needs adjustment.

    12 Inputs

    All three mixers in this series offer a total of 12 input channels - four for monaural microphone (incl. Phantom Power) or line input, plus four pairs that can function either as monaural microphone inputs or stereo line inputs - providing you with a versatile mix of input capabilities for a wide range of applications. If you need only microphone inputs you can use up to eight mic channels. Or if, for example, you want to play recorded background music during breaks (that's one stereo channel), and you have a keyboard player with a stereo-output keyboard (that's one more stereo channel), you still have six mic/line inputs. If you use all four stereo pairs to handle stereo line sources you have four channels available for mono mic or line input. This is a very versatile system that can adapt to your needs.

    High Power For Main and Monitor Speakers

    These powered mixers certainly don't skimp on power. From the Yamaha EMX212S with 200 watts per channel to the Yamaha EMX512SC with a solid 500 watts per channel, there's a power configuration to suit any application and venue. All models also feature a power mode switch that lets you use the two power channels as a stereo amplifier, or you can use one of the channels for the main speaker(s) and the other to drive monitors with a separate monitor mix set up via the channel MONITOR controls.

    Yamaha Speaker Processing

    Yamaha Club-series speakers are fine performers in their own right, but with the EMX512SC's Yamaha Speaker Processing you get extra-smooth highs and enhanced low-frequency output.

    Durable, Lightweight Design

    The EMX512SC powered mixer offers the ideal combination of outstanding sound performance and easy handling. It's lightweight - only 10 kilograms (22lbs.) - and feature conveniently located handles for maximum carrying comfort. It's also built tough to withstand the rigors of use on the road.

    Same Day Music is an authorized dealer of Yamaha products.

    Yamaha EMX512SC Technical Description

    - Maximum Output Power @ 0.5 % THD at 1 kHz:
    500 x 2 @ 4 ohms
    350 x 2 @ 8 ohms (UA)
    320 x 2 @ 8 ohms (H)

    - Frequency Response : -3, 0, 1 dB
    20 Hz-20 kHz, ref to the nominal output level @ 1 kHz

    -Total Harmonic Distortion: Less than 0.5 % (THD+N)
    - 14 dB @ 20 Hz, 1 kHz, 20 kHz, GAIN control: all nominal
    - Hum & Noise: Equivalent Input Noise, -115 dBu, Rs = 150 ohms CH 1-4 MIC/LINE: MIC
    - Crosstalk @ 1 kHz: -65 dB

    - Input Connectors:
    CH 1-4: XLR and Phone
    CH 5/6, 7/8: XLR and Phone
    CH 9/10, 11/12: XLR and Pin

    - EQ: HIGH, MID, LOW
    - Phantom Power: 15 V
    - Graphic Equalizer: 7 Band (125, 250, 500, 1 k, 2 k, 4 k, 8 kHz): Main (Stereo) and Monitor
    - Digital Effects: SPX Digital Multi Effector (24 bit AD/DA, 32 bit Internal Processing): 16 Programs
    - Power Amp. Mode: Main L/R, Main (L+R)/Monitor
    - Foot Switch: Effect On/Off
    - Dimensions (W x D x H): 442 x 274 x 286 mm (17-3/8 x 10-3/4 x 11-1/4 in.)
    - Weight: 10 kg (22 lbs.)

    - Power Requirements/Consumption:
    U/C: 120 V 60 Hz, 450 W
    H: 230 V 50 Hz, 450 W
    A: 240 V 50 Hz, 450 W

    Same Day Music is an authorized dealer of Yamaha products.

    Yamaha EMX512SC Powered Mixer with Effects (2x500 Watts) Catalog Description

    16 channels with 12 XLR mic inputs and phantom power@Stereo 9-band graphic EQ@Single 24-bit effects processor@Feedback-detection, 1-knob compression@500 watts per channel at 4 ohms@Speakon and 1/4" outputs.

    Same Day Music is an authorized dealer of Yamaha products.

    User Reviews for Yamaha EMX512SC Powered Mixer with Effects (2x500 Watts)
