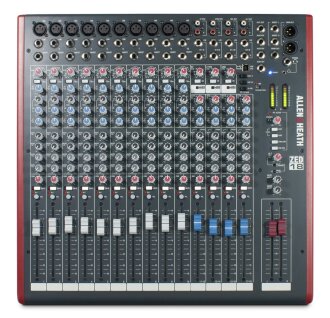

    Allen and Heath ZED18 USB Mixer
    View Larger Image

    More Resources

    Allen and Heath Warranty: AllenHeath Warranty ´╗┐Allen & Heath has a one-year non-transferable limited warranty. If you have additional warranty questions, please call the manufacturer at 800-431-2609
    In Stock | Will Ship Today
    • 2 Day: $22
    • Overnight: $68
    Order Now | Limited Qty
    • 2 Day: $24
    • Overnight: $66
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Allen and Heath ZED18 USB Mixer, 18-Channel Product Description

    The Allen and Heath ZED-18 has an incredibly advanced feature-set for a mixer at this level - it gives musicians, venues and hire companies access to 10 full mono channels and 4 stereo channels in a compact, rack mountable format. Configurable USB audio in/out makes it easy to capture stereo recordings.

    USB audio flexibility

    Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac.


    ZED-18 features a responsive 3-band, swept mid frequency EQ design which utilizes MusiQ - with optimized slope (or Q factor) for equalizing individual instruments.


    Based on the proven pre-amps from the hugely successful PA series, ZED-18 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

    SONAR X1 LE - Provided Free!

    Allen & Heath has included Cakewalk SONAR X1 LE with ZED-18 so you can immediately start to use it to create your own music - just add a PC and it couldn't be easier to get going. You'll be able to record from your ZED mixer, create tracks and arrange songs, then play back to ZED via the USB port. You can use SONAR X1 LE and your ZED mixer together in many ways - e.g. straightforward recording of a stereo mix, recording tracks individually to build up a song, or using the USB port and software as an effects loop.

    Key Features

    - Powered by SONAR X1
    - 32 audio tracks
    - 64 MIDI tracks
    - 8 simultaneous inputs and outputs
    - 24-bit/96 kHz audio quality
    - 24 simultaneous effects
    - 8 simultaneous virtual instruments


    - 10 mono channels
    - Neutrik mic XLR
    - Neutrik 1/4" jacks
    - Channel insert
    - Super wide gain 'DuoPre' mic line input
    - 3 band EQ with MusiQ
    - 4 auxes
    - Illuminated mute
    - Sound image pan
    - Illuminated PFL & peak warning indicator
    - ALPS 100mm faders
    - 4 stereo channels with 2-band EQ
    - Stereo returns & playback
    - All inputs with level control
    - 12 bar meters
    - Mono/stereo function on auxes 1&2
    - Monitor output section
    - Alt stereo output source
    - Configurable USB stereo audio in/out
    - Global +48V phantom power
    - Cakewalk SONAR LE bundled with mixer

    Same Day Music is an authorized dealer of Allen and Heath products.

    Allen and Heath ZED18 USB Mixer, 18-Channel Technical Description

    Input Operating Levels:
    - Mono channel (XLR) Input: +6 to -63dBu for nominal (+17dBu in max)
    - Mono channel Line Input (Jack socket) : +10 to -26dBu (+30dBu maximum)
    - Insert point (TRS Jack socket) : 0dBu nominal +21dBu maximum
    - Stereo Input (Jack sockets) : 0dBu nominal (control = Off to +10dB)
    - Stereo input (phono sockets) : 0dBu nominal (control = Off to +10dB)

    Output Operating Levels
    - L, R & Mono Outputs (L&R XLR, Mono Jack): 0dBu nominal. +21dBu maximum
    - Aux Outputs (Jack sockets): 0dBu nominal. +21dBu maximum
    - Alt Outputs (phono sockets): 0dBu nominal. +21dBu maximum
    - Rec Outputs (phono sockets): 0dBu nominal. +21dBu maximum

    Frequency Response
    - Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 20Hz to 20kHz.
    - Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 30kHz
    - Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
    THD+n- Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out: 0.004%
    - Mic in to Mix L/R Out, 30dB gain 1kHz: 0.014%
    - Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.005%
    - Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0.003%

    - Analogue Headroom from nominal (0Vu): 21dB
    - USB in & out headroom from nominal (0Vu): 14dB
    USB Audio CODEC (Coder/Decoder)- USB Audio In/Out: USB 1.1 compliant 16bit
    - Sample Rate: 32, 44.1, or 48kHz
    Noise- Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
    - Mix L/R out, L/R faders = 0, 22-22kHz ZED-14: -88dBu
    - Mix L/R out, L/R faders = 0, 22-22kHz ZED-18: -86dBu
    - Mix L/R out, L/R faders = 0, 22-22kHz ZED-24: -84dBu

    Same Day Music is an authorized dealer of Allen and Heath products.
    Shipping Weights and Dimensions
    Base Item
    Shipping Weight: 26 lbs
    Shipping Dimensions: 27 x 24 x 11 in
