Product Description

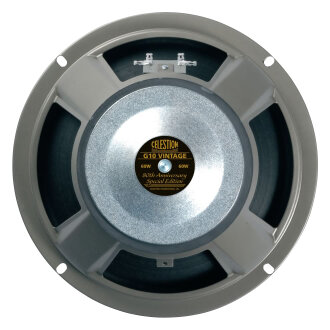

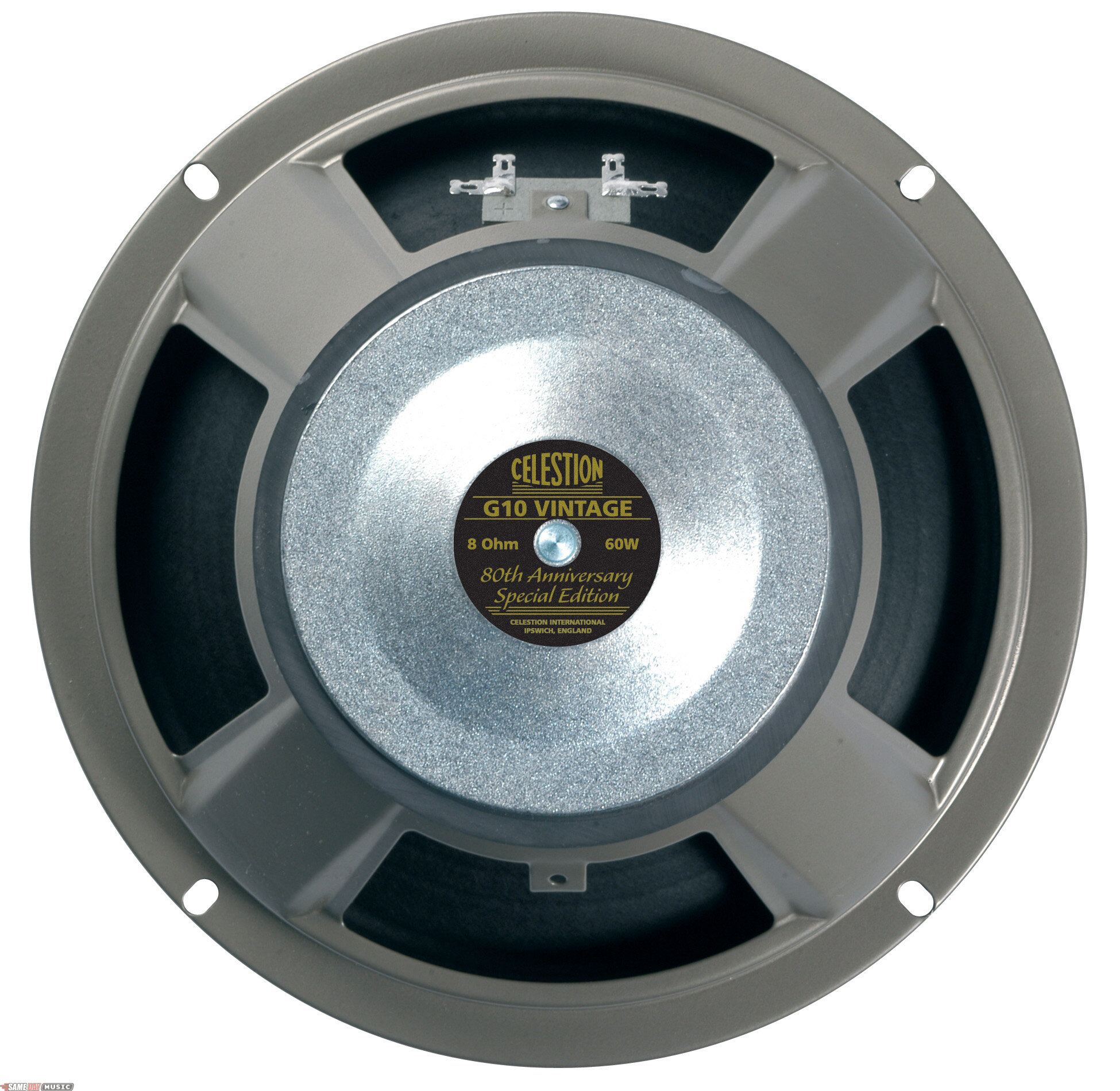

The G10 Vintage is the natural evolution of the well-respected Vintage 10. Closer to the sound of the Vintage 30 than its predecessor, the G10 Vintage still maintains a distinctive tonal flavour of its own. All of these speakers use the same voice coil designs and similar ceramic magnet structures to achieve their familiar, hard-rocking Celestion sound.

Harking back to the original British rock invasion, the G10 Vintage provides a meaty 60W power handling with solid bass, muscular mids and an articulate top-end, making it perfect for anyone looking to upgrade the sound of an existing 2x10 in. or 4 x10 in. A particularly versatile performer, the G10 Vintage is also well suited for use in a single speaker cab.

Technical Description

General Specifications
Nominal Diameter: 10 in., 254mm

Power Rating: 60 watts

Nominal Impedance: 8 ohms or 16 ohms

Sensitivity: 97dB

Chassis Type: Pressed Steel

Voice Coil Diameter: 1.75 in., 44.5mm

Voice Coil Material: Round copper

Magnet Type: Ceramic

Frequency Range: 100-5500Hz

Resonance Frequency, Fs: 115Hz

DC resistance, Re: 7.47 ohms or 12.33 ohms

Mounting Information
Diameter: 10.1 in.\ in., 256mm

Overall Depth: 4.1 in., 104mm

Magnet Structure Diameter: 5.3 in., 134mm

Cut-Out Diameter: 9.0 in., 229mm

Mounting Slot Dimensions: 0.2 x 0.3 in., 6 x 8 mm diameter

Number of Mounting Slots: 4

Mounting slot PCD: 9.6 in., 245mm

Unit Weight: 5.3lb, 2.4kg
